ADA4304-2

PRODUCTION

1:2 Single-Ended, Low Cost, Active RF Splitter

Data Sheet (Rev. A) Product Selection Table

Part Models: 2
1ku List Price: Starting From $1.10

Viewing:

Overview

Ideal for CATV and terrestrial applications
Excellent frequency response
- 1.6 GHz, −3 dB bandwidth
- 1 dB flatness to 1.0 GHz
Low noise figure: 4.0 dB
Low distortion
- Composite second order (CSO): −62 dBc
- Composite triple beat (CTB): −72 dBc
- 1 dB compression point of 8.25 dBm

2.8 dB of gain per output channel
25 dB output-to-output isolation, 50 MHz to 1000 MHz
75 Ω input and outputs
Integrated output resistors

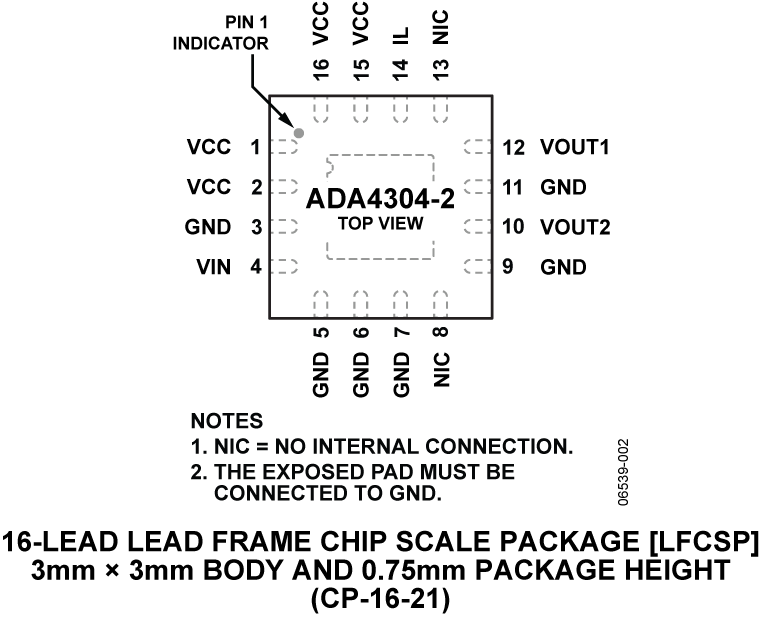

Small package size: 16-lead, 3 mm × 3 mm LFCSP

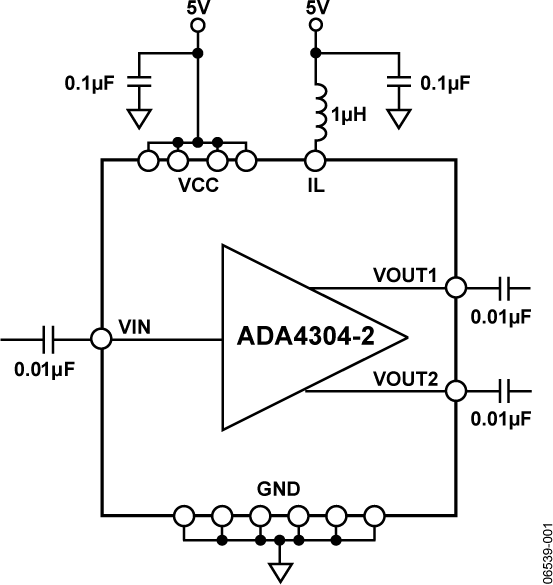

The ADA4304-2 is a 75 Ω active splitter for use in applications where a lossless signal split is required. Typical applications include multituner digital set-top boxes, cable splitter modules, multituner/digital cable ready (DCR) televisions, and home gateways where traditional solutions require discrete passive splitter modules with separate fixed gain amplifiers.

The ADA4304-2 is fabricated using Analog Devices, Inc. proprietary silicon-germanium (SiGe), complementary bipolar process, enabling it to achieve very low levels of distortion with a noise figure of 4 dB. The part provides a low cost alternative that simplifies designs and improves system performance by integrating a signal splitter element and a gain block into a single IC. The ADA4304-2 is available in a 16-lead LFCSP and operates in the extended industrial temperature range of −40°C to +85°C.

Applications

Set-top boxes
Residential gateways
CATV distribution systems
Splitter modules
Digital cable ready (DCR) TVs

Part Models: 2
1ku List Price: Starting From $1.10

Documentation

Data Sheet 1

ADA4304-2: 1:2 Single-Ended, Low Cost, Active RF Splitter Data Sheet (Rev.A) 05/01/2007

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADA4304-2ACPZ-R7	16-Lead LFCSP (3mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADA4304-2ACPZ-RL	16-Lead LFCSP (3mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Feb 13, 2014 - 14_0038 Conversion of 3x3mm body Size LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to Amkor Philippines.
		PCN14_0038_Form Material_Report Detailed Change Description Package Outline Drawing Qualification Report Summary
ADA4304-2ACPZ-R7	PRODUCTION
ADA4304-2ACPZ-RL	PRODUCTION

This is the most up-to-date revision of the Data Sheet.
