AD9884A

Triple 8-Bit, 140 MSPS ADC, RGB Graphics Digitizer for SXGA LCD Monitors

Show More showmore-icon

warning : LAST TIME BUY tooltip
warning : LAST TIME BUY tooltip
Part Details
Part Models 2
1ku List Price
price unavailable
Features
  • 140 MSPS Maximum Conversion Rate
    500 MHz Analog Bandwidth
    0.5 V to 1.0 V Analog Input Range
    400 ps p-p PLL Clock Jitter
  • Power-Down Mode
  • 3.3 V Power Supply
  • 2.5 V to 3.3 V Three-State CMOS Outputs
  • Demultiplexed Output Ports
  • Data Clock Output Provided
  • Low Power: 570 mW Typical
  • Internal PLL Generates CLOCK from HSYNC
  • Serial Port Interface
  • Fully Programmable
  • Supports Alternate Pixel Stamping
    for Higher-Resolution Applications
Additional Details
show more Icon

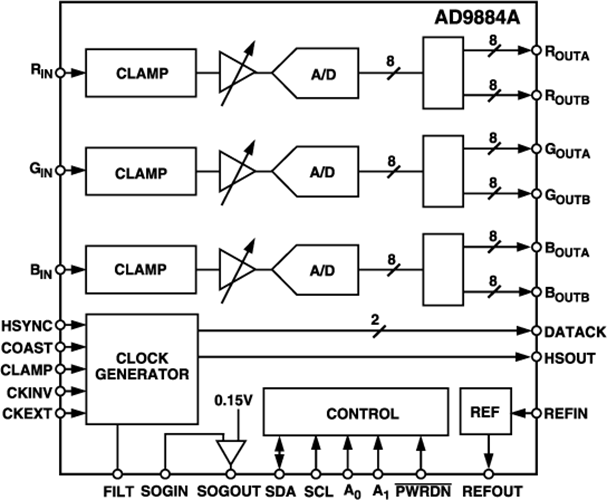

The AD9884A is a complete 8-bit 140 MSPS, monolithic integrated analog interface optimized for digitizing RGB graphics signals from personal computers and workstations. Its 140 MSPS encode rate capability and full-power analog bandwidth of 500 MHz supports display resolutions of up to 1280 x 1024 at 75 Hz with sufficient input bandwidth to accurately acquire and digitize each pixel.
Part Models 2
1ku List Price
price unavailable

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
AD9884AKSZ-100
  • HTML
  • HTML
AD9884AKSZ-140
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jan 5, 2009

- 07_0077

Certification of STATSChipPAC Shanghai, China and AMKOR Philippines as additional sources for Assembly & Test of QFP Packages

Oct 18, 2016

- 16_0034

Assembly Relocation of Select LQFP,LQFP_EP,MQFP,TQFP,TQFP_EP Products to Stats ChipPAC China Jiangyin

Mar 10, 2010

- 10_0017

QFP Multigrade Laser Conversion

Jan 29, 2014

- 14_0014

ADI Corporate Obsolescence Notice-January 2014 (Standard Products)

Sep 25, 2023

- 23_0060

Obsolescence of listed Video Part
