AD9849
12-Bit, 30 MHz CCD Signal Processor with Integrated Timing Driver
Top
Overview
Features and Benefits
- 12-Bit, 30 MHz Version
- Correlated Double Sampler (CDS)
- –2 dB to +10 dB Pixel Gain Amplifier ( PxGA®)
- 2 dB to 36 dB 10-Bit Variable Gain Amplifier (VGA)
- 12-Bit 30 MHz A/D Converter
- Black Level Clamp with Variable Level Control
- Complete On-Chip Timing Driver
- Precision Timing™ Core with 1 ns
- Resolution @ 20 MSPS
- On-Chip 5 V Horizontal and RG Drivers
- 48-Lead LQFP Package
Product Details

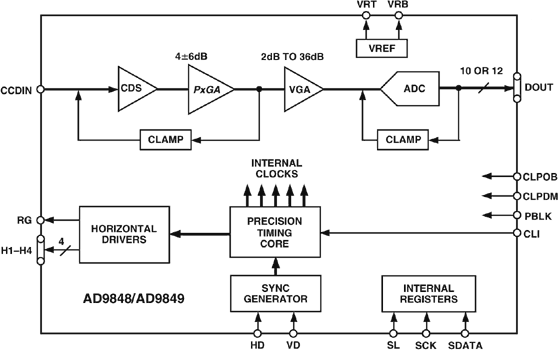

The AD9848 and AD9849 are highly integrated CCD signal processors for digital still camera applications. Both include a complete analog front end with A/D conversion, combined with a programmable timing driver. The Precision Timing core allows adjustment of high speed clocks with approximately 1 ns resolution.
The AD9848 is specified at pixel rates of 20 MHz, and the AD9849 is specified at 30 MHz. The analog front end includes black level clamping, CDS, PxGA, VGA, and a 10-bit or 12-bit A/D converter. The timing driver provides the high speed CCD clock drivers for RG and H1–H4. Operation is programmed using a 3-wire serial interface.
Packaged in a space saving 48-lead LQFP, the AD9848 and AD9849 are specified over an operating temperature range of –20°C to +85°C.
APPLICATIONS
- Digital Still Cameras
Product Categories
Product Lifecycle
Not Recommended for New Designs
This designates products ADI does not recommend broadly for new designs.
Documentation & Resources
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| AD9849AKSTZ | Material Declaration | Reliability Data | 48-Lead LQFP (7mm x 7mm) | |
| AD9849AKSTZRL | Material Declaration | Reliability Data | 48-Lead LQFP (7mm x 7mm) | |
| Wafer Fabrication Data |
