    LTC1606

    16-Bit, 250ksps, Single Supply ADC

  • AD7663
    AD7663

    16-Bit Bipolar 250 kSPS PulSAR® CMOS ADC

Overview

Features and Benefits

  • Fast 16-Bit ADC
  • 200 kSPS Throughput
  • Single 5 V Supply Operation
  • Input Range: ±10 V
  • 100 mW Max Power Dissipation
  • Choice of External or Internal 2.5 V Reference
  • High Speed Parallel Interface
  • On-Chip Clock
  • 28-Lead Skinny DIP, SSOP or SOIC Packages

Product Details

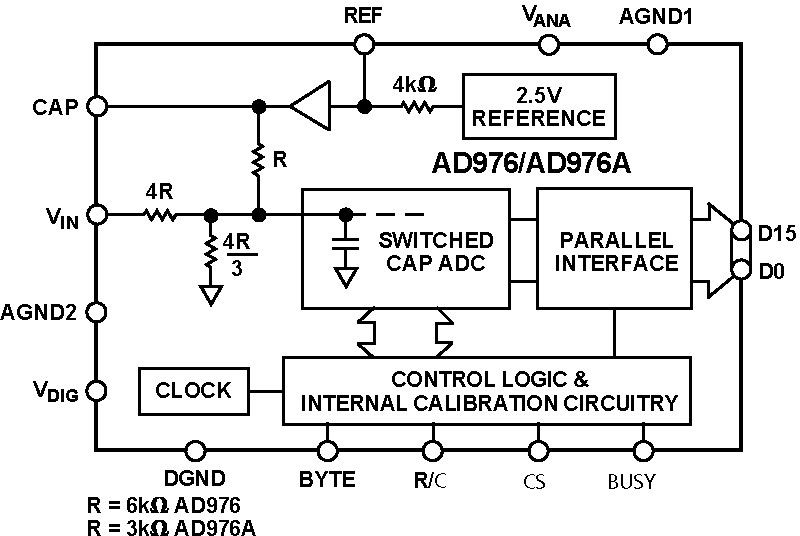

The AD976 and AD976A are high-speed, low-power 16-bit A/D converters with each operating from a single 5 V supply. The AD976A has a throughput rate of 200 ksps whereas the AD976 has a throughput rate of 100 ksps. Each part contains a successive approximation, switched capacitor ADC, an internal 2.5 V reference, and a high-speed parallel interface. The AD976 and AD976A dissipate a maximum of 100 mW. The ADC is factory calibrated to minimize all linearity errors. The analog full-scale input is the standard industrial range of ±10 V.

The AD976 and AD976A are comprehensively tested for ac parameters such as SNR and THD, as well as the more traditional parameters of offset, gain and linearity.

The AD976 and AD976A are fabricated on Analog Devices' proprietary BiCMOS process, which has high performance bipolar devices along with CMOS transistors.

The AD976 and AD976A are available in skinny 28-pin DIP, SSOP and SOIC packages.

Product Lifecycle icon-not-recommended Not Recommended for New Designs

This designates products ADI does not recommend broadly for new designs.
