AD9731S: 10-Bit, 170 MSPS, DAC Aerospace Data Sheet (Rev. H)5/13/2008143 kB
Features and Benefits
Product DetailsThe AD9731 is a 10-bit, 170 MSPS, bipolar D/A converter that is optimized to provide high dynamic performance, yet offer lower power dissipation and more economical pricing than afforded by previous bipolar high performance DAC solutions. The AD9731 was designed primarily for demanding communications systems applications where wideband spurious-free dynamic range (SFDR) requirements are strenuous and could previously only be met by using a high performance DAC such as the industry-standard AD9721. The proliferation of digital communications into base station and high volume subscriber-end markets has created a demand for excellent DAC performance delivered at reduced levels of power dissipation and cost. The AD9731 is the answer to that demand.
Markets and Technologies
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Documentation & Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|

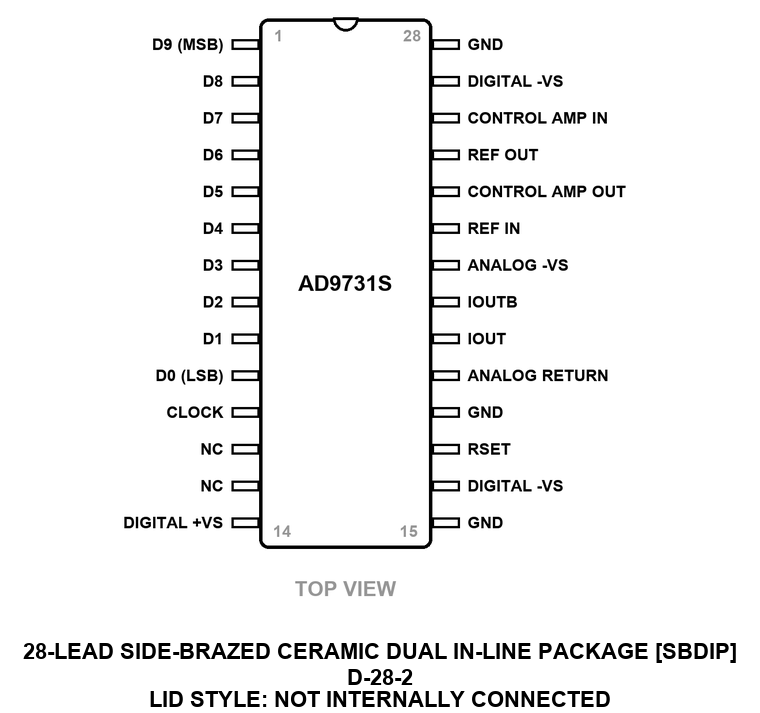

|AD97310703D||Material Declaration||Reliability Data||28-Lead CerDIP (Side Brazed)|

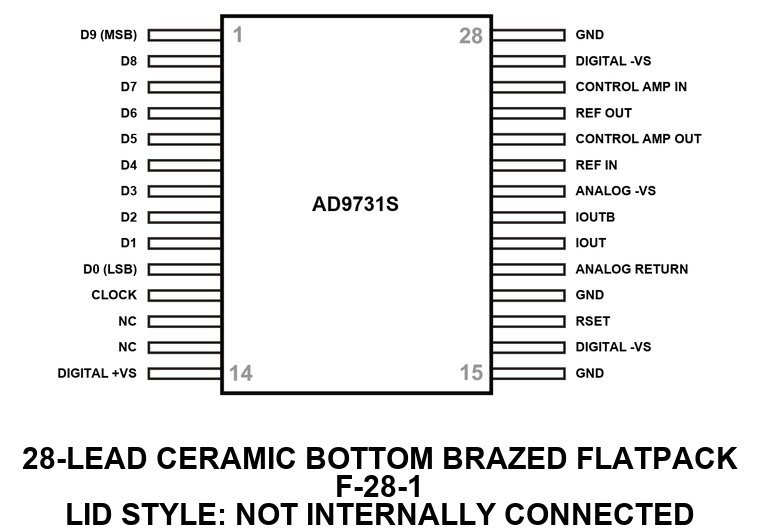

|AD97310703F||Material Declaration||Reliability Data||28 ld Flatpack|
|AD97310713D||Material Declaration||Reliability Data||28-Lead CerDIP (Side Brazed)|
|AD97310713F||Material Declaration||Reliability Data||28-Lead Flatpack|
|Wafer Fabrication Data|
