AD9601
10-Bit, 200 MSPS/250 MSPS 1.8 V Analog-to-Digital Converter
Show More
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- SNR = 59.4 dBFS @ fIN up to 70 MHz @ 250 MSPS
- ENOB of 9.7 @ fIN up to 70 MHz @ 250 MSPS (−1.0 dBFS)
- SFDR = 81 dBc @ fIN up to 70 MHz @ 250 MSPS (−1.0 dBFS)
- Excellent linearity
DNL = 0.2 LSB typical
INL = 0.2 LSB typical - CMOS outputs
Single data port at up to 250 MHz
Demultiplexed dual port at up to 2 × 125 MHz
- 700 MHz full power analog bandwidth
- On-chip reference, no external decoupling required
- Integrated input buffer and track-and-hold
- Low power dissipation
274 mW @ 200 MSPS
322 mW @ 250 MSPS - Programmable input voltage range
1.0 V to 1.5 V, 1.25 V nominal - 1.8 V analog and digital supply operation
- Selectable output data format (offset binary, twos complement, Gray code)
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The AD9601 is a 10-bit monolithic sampling analog-to-digital converter optimized for high performance, low power, and ease of use. The product operates at up to a 250 MSPS conversion rate and is optimized for outstanding dynamic performance in wideband carrier and broadband systems. All necessary functions, including a track-and-hold (T/H) and voltage reference, are included on the chip to provide a complete signal conversion solution.
The ADC requires a 1.8 V analog voltage supply and a differential clock for full performance operation. The digital outputs are CMOS compatible and support either twos complement, offset binary format, or Gray code. A data clock output is available for proper output data timing.
Fabricated on an advanced CMOS process, the AD9601 is available in a 56-lead LFCSP, specified over the industrial temperature range (−40°C to +85°C).
PRODUCT HIGHLIGHTS
- High Performance–Maintains 59.4 dBFS SNR @ 250 MSPS with a 70 MHz input.
- Low Power–Consumes only 322 mW @ 250 MSPS.
- Ease of Use–CMOS output data and output clock signal allow interface to current FPGA technology. The on-chip reference and sample-and-hold provide flexibility in system design. Use of a single 1.8 V supply simplifies system power supply design.
- Serial Port Control–Standard serial port interface supports various product functions, such as data formatting, power-down, gain adjust, and output test pattern generation.
- Pin-Compatible Family–12-bit pin-compatible family offered as the AD9626.
APPLICATIONS
- Wireless and wired broadband communications
- Cable reverse path
- Communications test equipment
- Radar and satellite subsystems
- Power amplifier linearization
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
AD9601
Documentation
Filters
1 Applied
-
All
-
Application Note
-
Data Sheet
-
All
-
English
-
Chinese
-
Japanese
Data Sheet
1
Application Note
41
969 kB
359 kB
1076 kB
1559 kB
1606 kB
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
Documentation
Data Sheet 1
Application Note 15
AN-715: A First Approach to IBIS Models: What They Are and How They Are Generated (Rev.0)
AN-827: A Resonant Approach to Interfacing Amplifiers to Switched-Capacitor ADCs (Rev.0)
AN-756: Sampled Systems and the Effects of Clock Phase Noise and Jitter (Rev.0)
AN-807: Multicarrier WCDMA Feasibility (Rev.0)
AN-808: Multicarrier CDMA2000 Feasibility (Rev.0)
AN-812: MicroController-Based Serial Port Interface (SPI) Boot Circuit (Rev.0)
AN-878: High Speed ADC SPI Control Software (Rev.A)
AN-737: How ADIsimADC Models an ADC (Rev.B)
AN-586: LVDS Outputs for High Speed A/D Converters (Rev.0)
AN-741: Little Known Characteristics of Phase Noise (Rev.0)
AN-501: Aperture Uncertainty and ADC System Performance (Rev.A)
AN-282: Fundamentals of Sampled Data Systems
AN-835: Understanding High Speed ADC Testing and Evaluation
AN-905: VisualAnalog™ Converter Evaluation Tool Version 1.0 User Manual
AN-1142: Techniques for High Speed ADC PCB Layout
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| AD9601BCPZ-200 |

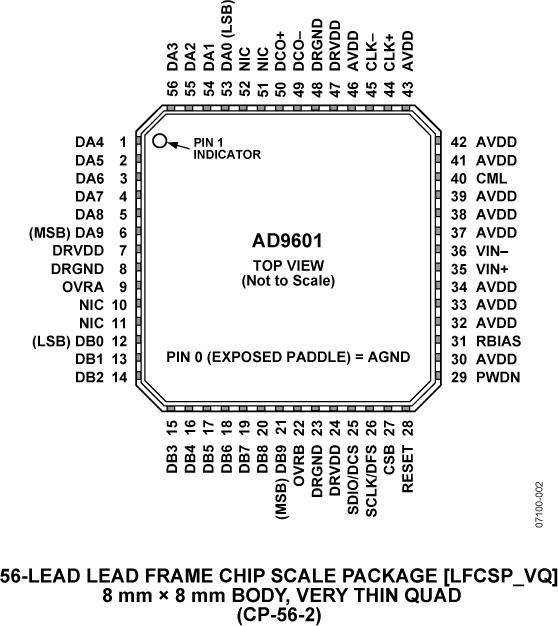

56-Lead LFCSP (8mm x 8mm w/ EP)
|
|
- AD9601BCPZ-200
- Pin/Package Drawing
-
56-Lead LFCSP (8mm x 8mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Jun 9, 2021
- 20_0126
Conversion of Select Sizes LFCSP Products from Punched to Sawn and Transfer of Assembly Site to ASE Korea
AD9601BCPZ-200
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Jun 9, 2021
- 20_0126
Conversion of Select Sizes LFCSP Products from Punched to Sawn and Transfer of Assembly Site to ASE Korea
AD9601BCPZ-200
PRODUCTION
Evaluation Kits 1
EVAL-AD9601
AD9601 Evaluation Board
Features and Benefits
- Full featured evaluation board for the AD9601
- SPI interface for setup and control
- External, on-board oscillator, or AD9517 clocking option
- Balun/transformer or amplifier input drive option
- LDO regulator or switching power supply options
- VisualAnalog® and SPI controller software interfaces
Product Detail
The AD9601-250EBZ is an evaluation board for the AD9601, single 10-bit ADC. This reference design provides all of the support circuitry to operate devices in their various modes and configurations, It is designed to interface directly with the HSC-ADC-EVALCZ data capture card, allowing users to download captured data for analysis. The Visual Analog software package, which is used to interface with the device’s hardware, allows users to download captured data for analysis with a user-friendly graphical interface. The SPI controller software package is also compatible with this hardware and allows the user to access the SPI programmable features of the AD9601.
The AD9601 data sheet provides additional information related to device configuration and performance and should be consulted when using these tools. All documents and Visual Analog and SPI Controller are available at the High Speed ADC Evaluation Boards page. For additional information or questions, please email highspeed.converters@analog.com
