AD9552

Oscillator Frequency Up Converter

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 2
1ku List Price Starting From $6.55
Features
  • Converts a low frequency input reference signal to a high frequency output signal
  • Input frequencies from 6.6 MHz to 112.5 MHz
  • Output frequencies up to 900 MHz
  • Preset pin programmable frequency translation ratios
  • Arbitrary frequency translation ratios via SPI port
  • Accepts a crystal resonator and/or an external oscillator as a reference frequency source
  • Secondary output (either integer-related to the primary output or a copy of the reference input)
  • RMS jitter: <0.5 ps
  • SPI-compatible, 3-wire programming interface
  • Single supply (3.3 V)
  • Very low power: <400 mW (under most conditions)
  • Small package size (5 mm × 5 mm)
  • On-chip VCO
Additional Details
show more Icon

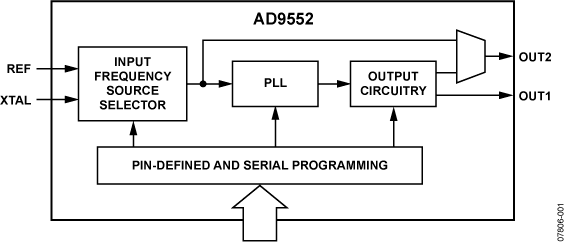

The AD9552 is a fractional-N phase locked loop (PLL) based clock generator designed specifically to replace high frequency crystal oscillators and resonators. The device employs a sigma-delta (Σ-Δ) modulator (SDM) to accommodate fractional frequency synthesis. The user supplies an input reference signal by connecting a single-ended clock signal directly to the REF pin or by connecting a crystal resonator across the XTAL pins.

The AD9552 is pin programmable, providing one of 64 standard output frequencies based on one of eight common input frequencies. The device also has a 3-wire SPI interface, enabling the user to program custom input-to-output frequency ratios.

The AD9552 relies on an external capacitor to complete the loop filter of the PLL. The output is compatible with LVPECL, LVDS, or single-ended CMOS logic levels, although the AD9552 is implemented in a strictly CMOS process.

The AD9552 is specified to operate over the extended industrial temperature range of −40°C to +85°C.

APPLICATIONS

  • Cost effective replacement of high frequency VCXO, OCXO, and SAW resonators
  • Extremely flexible frequency translation with low jitter for SONET/SDH (including FEC) , 10 Gb Ethernet, Fibre Channel, and DRFI/DOCSIS
  • High-definition video frequency translation
  • Wireless infrastructure
  • Test and measurement (including handheld devices)
Part Models 2
1ku List Price Starting From $6.55

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
AD9552BCPZ
  • HTML
  • HTML
AD9552BCPZ-REEL7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 2, 2012

- 12_0103

Minor Metal Mask Revision and Datasheet Change on the AD9552

AD9552BCPZ

PRODUCTION

AD9552BCPZ-REEL7

PRODUCTION

Mar 23, 2012

- 11_0104

Conversion of Select Sizes of LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to ASE-Korea.

Aug 26, 2009

- 09_0152

AD9552 Datasheet Change

AD9552BCPZ

PRODUCTION

AD9552BCPZ-REEL7

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 2, 2012

- 12_0103

arrow down

Minor Metal Mask Revision and Datasheet Change on the AD9552

AD9552BCPZ

PRODUCTION

AD9552BCPZ-REEL7

PRODUCTION

Mar 23, 2012

- 11_0104

arrow down

Conversion of Select Sizes of LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to ASE-Korea.

Aug 26, 2009

- 09_0152

arrow down

AD9552 Datasheet Change

AD9552BCPZ

PRODUCTION

AD9552BCPZ-REEL7

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

EVAL-AD9552

AD9552 Evaluation Board

zoom

EVAL-AD9552

AD9552 Evaluation Board

AD9552 Evaluation Board

Features and Benefits

  • Simple power connection using USB connection and on-board LDO voltage regulators
  • LDOs are easily bypassed for power measurements
  • AC-coupled differential LVPECL SMA connectors
  • SMA connectors for
    • 1 reference input
    • 1 PLL lock detect output
  • Microsoft Windows®–based evaluation software with simple graphical user interface
  • On-board PLL loop filter
  • Easy access to digital I/O and diagnostic signals via I/O header
  • Status LEDs for diagnostic signals
  • USB computer interface
  • Dip switch configurable for manual operation
  • Software calculator provides flexibility, allowing programming almost any rational input/output frequency ratio

Product Detail

The AD9552 evaluation board is a compact, easy to use platform for evaluating all features of the AD9552 oscillator frequency upconverter.

The AD9552 is a fractional-N phase-locked loop (PLL) based clock generator designed specifically to replace high frequency crystal oscillators and resonators. The device employs a sigmadelta (Σ-Δ) modulator (SDM) to accommodate fractional frequency synthesis. The user supplies an input reference signal by connecting a single-ended clock signal directly to the REF pin or by connecting a crystal resonator across the XTAL pins.

The AD9552 is pin programmable, providing one of 64 standard output frequencies based on one of eight standard input frequencies. The device also has a 3-wire SPI interface, enabling the user to program custom input-to-output frequency ratios.

The AD9552 relies on an external capacitor to complete the loop filter of the PLL. The output is compatible with LVPECL, LVDS, or single-ended CMOS logic levels, although the AD9552 is implemented in a strictly CMOS process.
