Features and Benefits

  • Fully integrated, ultralow noise phase-locked loop (PLL)
  • 4 differential, 2.7 GHz common-mode logic (CML) outputs
  • 2 differential reference inputs with programmable internal termination options
  • <232 fs rms absolute jitter (12 kHz to 20 MHz) with a non-ideal reference and 8 kHz loop bandwidth
  • <100 fs rms absolute jitter (12 kHz to 20 MHz) with an 80 kHz loop bandwidth and low jitter input reference clock
  • Supports low loop bandwidths for jitter attenuation
  • Manual switchover
  • Single 2.5 V typical supply voltage
  • 48-lead, 7 mm × 7 mm LFCSP

Product Details

The AD9530 is a fully integrated PLL and distribution supporting, clock cleanup, and frequency translation device for 40 Gbps/ 100 Gbps OTN applications. The internal PLL can lock to one of two reference frequencies to generate four discrete output frequencies up to 2.7 GHz.

The AD9530 features an internal 5.11 GHz to 5.4 GHz, ultralow noise voltage controlled oscillator (VCO). All four outputs are individually divided down from the internal VCO using two high speed VCO dividers (the Mx dividers) and four individual 8-bit channel dividers (the Dx dividers). The high speed VCO dividers offer fixed divisions of 2, 2.5, 3, and 3.5 for wide coverage of possible output frequencies. The AD9530 is configurable for loop bandwidths <15 kHz to attenuate reference noise.

The AD9530 is available in a 48-lead LFCSP and operates from a single 2.5 V typical supply voltage.

The AD9530 operates over the extended industrial temperature range of −40°C to +85°C.



  • 40 Gbps/100 Gbps optical transport network (OTN) line side clocking
  • Clocking of high speed analog-to-digital converters (ADCs) and digital-to-analog converters (DACs)
  • Data communications

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

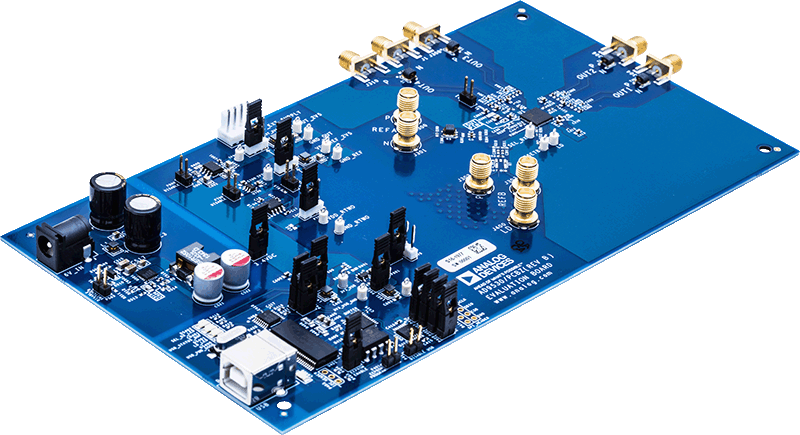

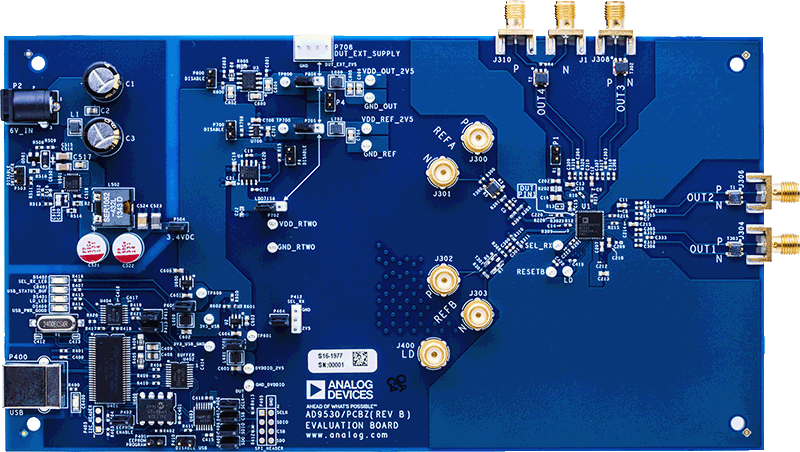

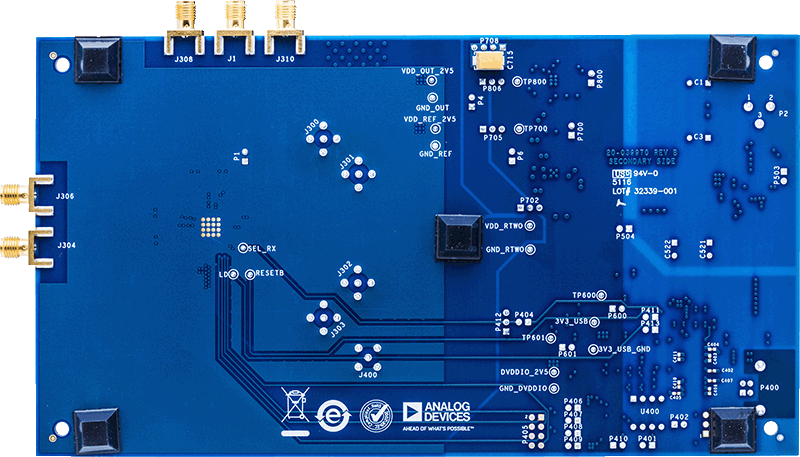

Evaluation Kits (1)

Product Recommendations

AD9530 Companion Parts

Recommended Reference Buffer

Recommended Reference Clean Up PLL

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
AD9530BCPZ Material Declaration Reliability Data 48-Lead LFCSP (7mm x 7mm x 0.75mm w/ EP)
AD9530BCPZ-REEL7 Material Declaration Reliability Data 48-Lead LFCSP (7mm x 7mm x 0.75mm w/ EP)
Wafer Fabrication Data
