Features and Benefits

  • Four ADCs in one package
  • Serial LVDS digital output data rates up to
    520 MHz (ANSI-644)
  • Data clock output provided
  • SNR = 47 dB (to Nyquist)
  • 400 MHz full power analog bandwidth
  • Power dissipation = 330 mW at 65 MSPS
  • Excellent Linearity:
    DNL = ±0.25 LSB (typical)
    INL = ±0.5 LSB (typical)
  • 1Vpp - 2Vpp input voltage range
  • +3.0V supply operation
  • Power down mode

Product Details

The AD9289 is a quad 8-bit, 65 MSPS analog–to–digital converter with an on–chip track–and–hold circuit and is designed for low cost, low power, small size and ease of use. The product operates up to a 65 MSPS conversion rate and is optimized for outstanding dynamic performance where a small package size is critical.

The ADC requires a single +3V power supply and an LVDS or PECL-compatible sample rate clock for full performance operation. No external reference or driver components are required for many applications. A separate output power supply pin supports LVDS compatible serial digital output levels.

The ADC automatically multiplies up the sample rate clock for the appropriate LVDS serial data rate. An MSB trigger is provided to signal a new output byte. Power down is supported, and the ADC consumes less than 10mW when enabled.

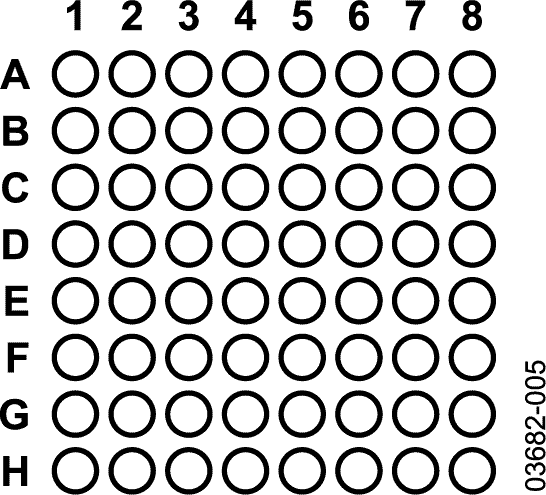

Fabricated on an advanced CMOS process, the AD9289 is available in a 64-ball mini-BGA package (64 CSP_BGA) specified over the industrial temperature range (–40°C to +85°C).

Product Lifecycle icon-recommended Last Time Buy

All products in this family will be obsolete soon. Please contact ADI Sales or Distributors to arrange for final purchases and read our Obsolescence Information to review the time periods for placing final orders and receiving final shipments.
