Features
- Integrated Dual 10-Bit A/D Converters
- Low Power:
300 mW at 105 MSPS
234 mW at 80 MSPS
216 mW at 65 MSPS - Single 3 V Supply Operation (2.7 V to 3.3 V)
- SNR = 57.6 dBc (to Nyquist, AD9216-105)
- SFDR = 74 dBc (to Nyquist, AD9216-105)
- Low Power: 280 mW at 105 MSPS
- Differential Input with 500 MHz 3 dB Bandwidth
- Exceptional Cross Talk Immunity > 75 dB
- Flexible Analog Input: 1 V p-p to 2 V p-p Range
- Offset Binary or Twos Complement Data Format
- Clock Duty Cycle Stabilizer
- Pin-compatible with the AD9238 and AD9248
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

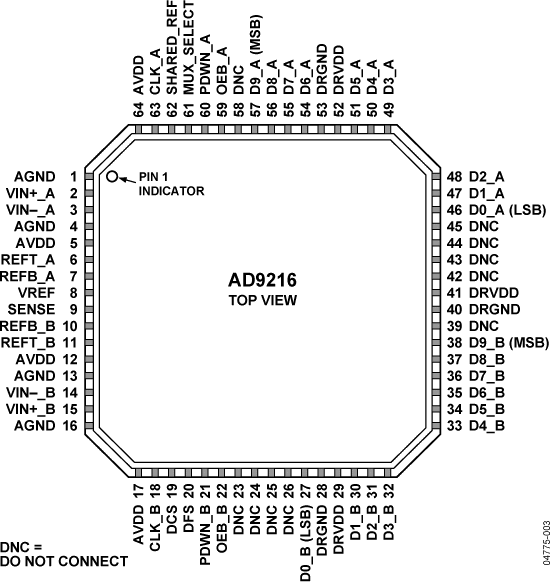

The AD9216 is a dual, 3 V, 10-bit, 65/80/105 MSPS analog-to-digital converter. It features dual high performance sample and hold amplifiers and an integrated voltage reference. The AD9216 uses a multistage differential pipelined architecture with output error correction logic to provide 10-bit accuracy and guarantee no missing codes over the full operating temperature range at up to 105 MSPS data rates. The wide bandwidth, differential SHA allows for a variety of user selectable input ranges and offsets including single-ended applications. It is suitable for various applications including multiplexed systems that switch full-scale voltage levels in successive channels and for sampling inputs at frequencies well beyond the Nyquist rate.
Dual single-ended clock inputs are used to control all internal conversion cycles. A duty cycle stabilizer is available on the AD9216-65 and can compensate for wide variations in the clock duty cycle, allowing the converters to maintain excellent performance. The digital output data is presented in either straight binary or twos complement format. Out-of-range signals indicate an overflow condition, which can be used with the most significant bit to determine low or high overflow.
Fabricated on an advanced CMOS process, the AD9216 is available in a space saving 64-lead LFCSP (9x9) and is specified over the industrial temperature range (-40°C to +85°C).
APPLICATIONS
- Ultrasound Equipment
- IF Sampling in Communications Receivers: 3G, Radio Point-to-Point, LMDS, MMDS
- Battery-Powered Instruments
- Hand-Held Scopemeters
- Low Cost Digital Oscilloscopes
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
AD9216
Documentation
Filters
1 Applied
-
All
-
Application Note
-
Data Sheet
-
Technical Articles
-
All
-
English
-
Chinese
-
Japanese
Data Sheet
2
Application Note
37
359 kB
1076 kB
823 kB
491 kB
1559 kB
1606 kB
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
Technical Articles
4
URL
HTML
HTML
HTML
Documentation
Data Sheet 1
Application Note 13
AN-715: A First Approach to IBIS Models: What They Are and How They Are Generated (Rev.0)
AN-827: A Resonant Approach to Interfacing Amplifiers to Switched-Capacitor ADCs (Rev.0)
AN-756: Sampled Systems and the Effects of Clock Phase Noise and Jitter (Rev.0)
AN-803: Pin Compatible High Speed ADCs Simplify Design Tasks (Rev.0)
AN-737: How ADIsimADC Models an ADC (Rev.B)
AN-741: Little Known Characteristics of Phase Noise (Rev.0)
AN-501: Aperture Uncertainty and ADC System Performance (Rev.A)
AN-345: Grounding for Low-and-High-Frequency Circuits
AN-282: Fundamentals of Sampled Data Systems
AN-905: VisualAnalog™ Converter Evaluation Tool Version 1.0 User Manual
AN-935: Designing an ADC Transformer-Coupled Front End
AN-1142: Techniques for High Speed ADC PCB Layout
AN-835: Understanding High Speed ADC Testing and Evaluation
Technical Articles 2
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| AD9216BCPZ-105 |
64-Lead LFCSP (9mm x 9mm w/ EP)
|
|
|
| AD9216BCPZ-65 |
64-Lead LFCSP (9mm x 9mm w/ EP)
|
|
|
| AD9216BCPZ-80 |
64-Lead LFCSP (9mm x 9mm w/ EP)
|
|
|
| AD9216BCPZRL7-65 |
64-Lead LFCSP (9mm x 9mm w/ EP)
|
|
|
| AD9216BCPZRL7-80 |
64-Lead LFCSP (9mm x 9mm w/ EP)
|
|
- AD9216BCPZ-105
- Pin/Package Drawing
-
64-Lead LFCSP (9mm x 9mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD9216BCPZ-65
- Pin/Package Drawing
-
64-Lead LFCSP (9mm x 9mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD9216BCPZ-80
- Pin/Package Drawing
-
64-Lead LFCSP (9mm x 9mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD9216BCPZRL7-65
- Pin/Package Drawing
-
64-Lead LFCSP (9mm x 9mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD9216BCPZRL7-80
- Pin/Package Drawing
-
64-Lead LFCSP (9mm x 9mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Jun 9, 2021
- 20_0126
Conversion of Select Sizes LFCSP Products from Punched to Sawn and Transfer of Assembly Site to ASE Korea
AD9216BCPZ-105
PRODUCTION
AD9216BCPZ-65
PRODUCTION
AD9216BCPZ-80
PRODUCTION
AD9216BCPZRL7-65
PRODUCTION
AD9216BCPZRL7-80
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Jun 9, 2021
- 20_0126
Conversion of Select Sizes LFCSP Products from Punched to Sawn and Transfer of Assembly Site to ASE Korea
AD9216BCPZ-105
PRODUCTION
AD9216BCPZ-65
PRODUCTION
AD9216BCPZ-80
PRODUCTION
AD9216BCPZRL7-65
PRODUCTION
AD9216BCPZRL7-80
PRODUCTION
Evaluation Kits 1
EVAL-AD9216
AD9216 Evaluation Board
Features and Benefits
- Buffer memory board for capturing digital data used with high speed ADC evaluation boards to simplify evaluation
- 32 kB FIFO depth at 133 MSPS (upgradable)
- Measures performance with ADC Analyzer™
Real-time FFT and time domain analysis
Analyze SNR, SINAD, SFDR, and harmonics - Simple USB port interface (2.0)
- Supporting ADCs with serial port interfaces (SPI)
- On-board regulator circuit, no power supply required 6 V, 2 A switching power supply included
- Compatible with Windows 98 (2nd ed.), Windows 2000, Windows ME, and Windows XP
Product Detail
The evaluation kit is easy to set up. Additional equipment needed includes an Analog Devices high speed ADC evaluation board, a signal source, and a clock source. Once the kit is connected and powered, the evaluation is enabled instantly on the PC.
The HSC-ADC-EVALB-DCZ can be used with single and multichannel ADCs and converters with demultiplexed digital outputs.
