Features
- EMI filters at input pins
- Specified from −40°C to +140°C
- Low offset voltage: 10 μV maximum
- Low input offset voltage drift: 65 nV/°C maximum
- High CMRR: 94 dB minimum
- Digitally programmable gain and output offset voltage
- Programmable output clamp voltage
- Open and short wire fault detection
- Low-pass filtering
- Single-wire serial interface
- Stable with any capacitive load
- SOIC_N and LFCSP_VQ packages
- 4.5 V to 5.5 V operation
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The AD8556 is a zero-drift, sensor signal amplifier with digitally programmable gain and output offset. Designed to easily and accurately convert variable pressure sensor and strain bridge outputs to a well-defined output voltage range, the AD8556 accurately amplifies many other differential or single-ended sensor outputs. The AD8556 uses the ADI patented low noise auto-zero and DigiTrim® technologies to create an incredibly accurate and flexible signal processing solution in a very compact footprint.
Gain is digitally programmable in a wide range from 70 to 1,280 through a serial data interface. Gain adjustment can be fully simulated in-circuit and then permanently programmed with reliable polyfuse technology. Output offset voltage is also digitally programmable and is ratiometric to the supply voltage. AD8556 also features internal EMI filters on the VNEG, VPOS, FILT and VCLAMP pins.
In addition to extremely low input offset voltage, low input offset voltage drift, and very high dc and ac CMRR, the AD8556 also includes a pull-up current source at the input pins and a pull-down current source at the VCLAMP pin. This allows open wire and shorted wire fault detection. A low-pass filter function is implemented via a single low cost external capacitor. Output clamping set via an external reference voltage allows the AD8556 to drive lower voltage ADCs safely and accurately.
When used in conjunction with an ADC referenced to the same supply, the system accuracy becomes immune to normal supply voltage variations. Output offset voltage can be adjusted with a resolution of better than 0.4% of the difference between VDD and VSS. A lockout trim after gain and offset adjustment further ensures field reliability.
The AD8556 is fully specified from −40°C to +140°C. Operating from single-supply voltages of 2.7 V to 5.5 V, the AD8556 is offered in the 8-lead SOIC_N, and 4 mm × 4 mm 16-lead LFCSP_VQ.
Applications
- Automotive Sensors
- Pressure and Position Sensors
- Precision Current Sensing
- Strain Gages
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
AD8556
Documentation
Filters
1 Applied
-
All
-
Data Sheet
-
Technical Articles
-
All
-
English
Data Sheet
1
Technical Articles
2
doc
75 kB
URL
Documentation
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| AD8556ACPZ-R2 |

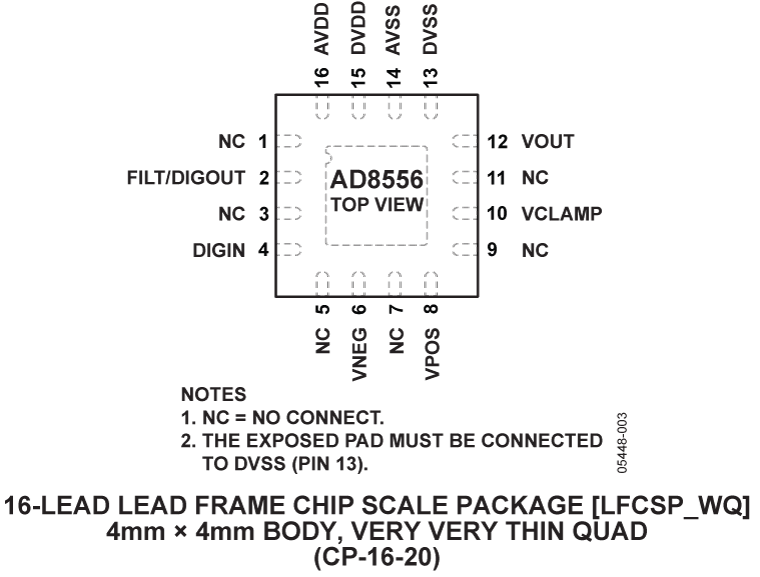

16-Lead LFCSP (4mm x 4mm w/ EP)
|
|
|
| AD8556ACPZ-REEL |
16-Lead LFCSP (4mm x 4mm w/ EP)
|
|
|
| AD8556ACPZ-REEL7 |
16-Lead LFCSP (4mm x 4mm w/ EP)
|
|
|
| AD8556ARZ |

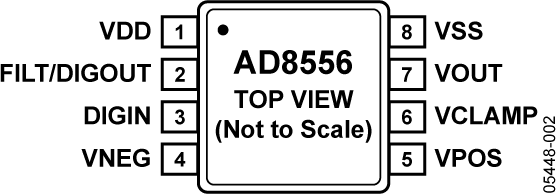

8-Lead SOIC
|
|
|
| AD8556ARZ-REEL |
8-Lead SOIC
|
|
|
| AD8556ARZ-REEL7 |
8-Lead SOIC
|
|
- AD8556ACPZ-R2
- Pin/Package Drawing
-
16-Lead LFCSP (4mm x 4mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD8556ACPZ-REEL
- Pin/Package Drawing
-
16-Lead LFCSP (4mm x 4mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD8556ACPZ-REEL7
- Pin/Package Drawing
-
16-Lead LFCSP (4mm x 4mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD8556ARZ
- Pin/Package Drawing
-
8-Lead SOIC
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD8556ARZ-REEL
- Pin/Package Drawing
-
8-Lead SOIC
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD8556ARZ-REEL7
- Pin/Package Drawing
-
8-Lead SOIC
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
May 4, 2016
- 14_0178
Conversion of 3x3mm, 4x4mm and 5x5mm LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to Amkor Philippines
AD8556ACPZ-R2
AD8556ACPZ-REEL
Obsolete
AD8556ACPZ-REEL7
PRODUCTION
Jun 30, 2015
- 15_0134
AD8556 Wafer Fab Transfer to Taiwan Semiconductor Manufacturing Company (TSMC)
AD8556ACPZ-R2
AD8556ACPZ-REEL7
PRODUCTION
AD8556ARZ
PRODUCTION
AD8556ARZ-REEL
PRODUCTION
AD8556ARZ-REEL7
PRODUCTION
Feb 8, 2010
- 04_0080
Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.
AD8556ACPZ-R2
AD8556ACPZ-REEL7
PRODUCTION
AD8556ARZ
PRODUCTION
AD8556ARZ-REEL
PRODUCTION
Jan 29, 2014
- 14_0014
ADI Corporate Obsolescence Notice-January 2014 (Standard Products)
AD8556ACPZ-REEL
Obsolete
Filter by Model
Part Models
Product Lifecycle
PCN
May 4, 2016
- 14_0178
Conversion of 3x3mm, 4x4mm and 5x5mm LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to Amkor Philippines
AD8556ACPZ-R2
AD8556ACPZ-REEL
Obsolete
AD8556ACPZ-REEL7
PRODUCTION
Jun 30, 2015
- 15_0134
AD8556 Wafer Fab Transfer to Taiwan Semiconductor Manufacturing Company (TSMC)
AD8556ACPZ-R2
AD8556ACPZ-REEL7
PRODUCTION
AD8556ARZ
PRODUCTION
AD8556ARZ-REEL
PRODUCTION
AD8556ARZ-REEL7
PRODUCTION
Feb 8, 2010
- 04_0080
Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.
AD8556ACPZ-R2
AD8556ACPZ-REEL7
PRODUCTION
AD8556ARZ
PRODUCTION
AD8556ARZ-REEL
PRODUCTION
Jan 29, 2014
- 14_0014
ADI Corporate Obsolescence Notice-January 2014 (Standard Products)
Software & Part Ecosystem
Evaluation Kits 1
EVAL-AD8556
AD8555/AD8556/AD8557 Evaluation Board
Features and Benefits
- Single- or dual-supply operation
- AC and DC signal evaluation
- Built-in 100 Ω bridge with unbalancing capability
- Provision to create low-pass filter
- Readback feature of programmed values
- External clamp voltage setting
- Interface for PC USB port
- Evaluation software, compatible with Microsoft Windows XP,
- Windows Vista, and Windows 7 SOIC/LFCSP socket for easy device replacement
- Supports AD8555, AD8556, and AD8557 ICs
Product Detail
The AD8556-EVALZ/AD8556CP-EBZ evaluation boards allow the quick demonstration and evaluation of the AD8555/AD8556/AD8557 zero-drift, digitally programmable sensor signal amplifiers.
The AD8555/AD8556/AD8557 are auto-zero instrumentation amplifiers with programmable gain and output offset adjustment features. The evaluation board enables a PC to communicate with the AD8555/AD8556/AD8557. The user can send commands to the evaluation board and read back the programmed values for the device that is being evaluated.
The user guide UG-896 supplements the information in the AD8555, AD8556, and AD8557 data sheets, which should be consulted in conjunction with this user guide when working with the evaluation board.
