AD8391

+3.3 V to +12 V xDSL Line Drive Amplifier with Power Down

Obsolete

Part Details

Not the part you were looking for?

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Features

High Output Voltage and Current Drive: 250mA Minimum Output Drive Current, 10Vp-p Output Voltage, RL=21 ohms
Low Power Operation: +3.3V to +12V Power Supply Range, 19mA(typ) Supply Current, 1-pin logic controlled Stand-by, Shutdown
Low Distortion: -94dBc SFDR @ 100kHz into 21 ohms, 8Vp-p

Differential: 4.5nV/rt hz Input Voltage noise density, 100kHz, Out of Band
SFDR=-82dBc, 144kHz to 500kHz, Zline=100 ohms, Pline=13.5dBm
High Speed: 60MHz Bandwidth (-3dB), 600V/us Slew Rate

Additional Details

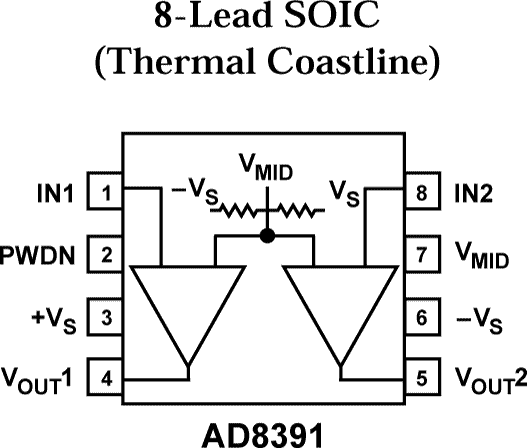

The AD8391 consists of two parallel, low cost xDSL line drive amplifiers capable of driving low distortion signals while running on both +3 V to +12 V single-supply or equivalent dual-supply rails. It is primarily intended for use in single-supply xDSL systems where low power is essential, such as line powered and battery backup systems. Each amplifier output drives more than 250 mA of current while maintaining -82 dBc of distortion at 100 kHz on +12 V, outstanding performance for any xDSL CPE application.
