Features and Benefits

  • High voltage drive to within 1.3 V of supply rails
  • Output short-circuit protection
  • High update rates
  • Fast, 100 Ms/s 10-bit input data update rate
  • Static power dissipation: 1.4 W
  • Voltage-controlled video reference (brightness), offset, and full-scale (contrast), output levels
  • INV bit reverses polarity of video signals
  • 3.3 V logic, 9 V to 18 V analog supplies
  • High accuracy voltage outputs
    Laser trimming eliminates the need for adjustments or calibration
  • Flexible logic XFR allows parallel AD8386 operation
  • Fast settling into capacities loads 35 ns settling time to 0.25% into 150 pF load
    Slew rate 400 V/µs

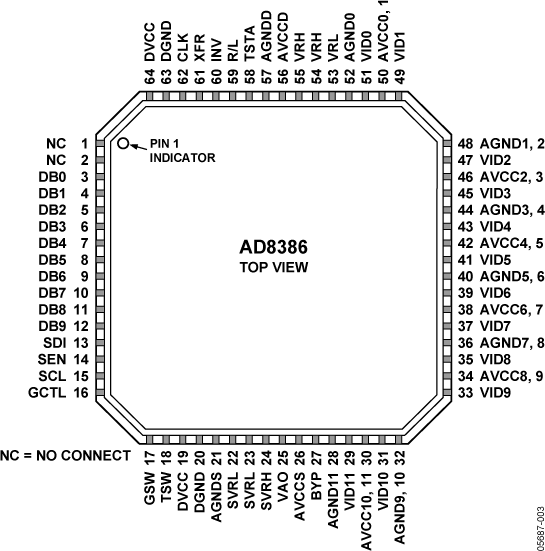

  • Available in 64-lead 9 mm × 9 mm LFCSP_VQ

Product Details

The AD8386 provides a fast, 10-bit, latched, decimating digital input that drives 12 high voltage outputs. Input words with 10 bits are loaded sequentially into 12 separate high speed, bipolar DACs. Flexible digital input format allows several AD8386s to be used in parallel in high resolution displays. The output signal can be adjusted for dc reference, signal inversion, and contrast for maximum flexibility.

The AD8386 is fabricated on ADI's fast bipolar, 26 V XFHV process, which provides fast input logic, bipolar DACs with trimmed accuracy and fast settling, high voltage, precision drive amplifiers on the same chip.

The AD8386 dissipates 1.4 W nominal static power.

The AD8386 is offered in 64-lead 9 mm x 9 mm LFCSP_VQ package and operates over the commercial temperature range of 0°C to 85°C.
