AD8372
41 dB Range, 1 dB Step Size, Programmable Dual VGA
Show More
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support PageFeatures
- Dual independent digitally controlled VGA
- Differential input and output
- 150 Ω differential input
- Open-collector differential output
- 7.8 dB noise figure to 100 MHz @ maximum gain
- HD2/HD3 better than 77 dBc for 1 V p-p differential output
- −3 dB bandwidth of 130 MHz
- 41 dB gain range
- 1 dB step size ± 0.2 dB
- Serial 8-bit bidirectional SPI control interface
- Wide input dynamic range
- Pin-programmable output stage
- Power-down feature
- Single 5 V supply: 106 mA per channel

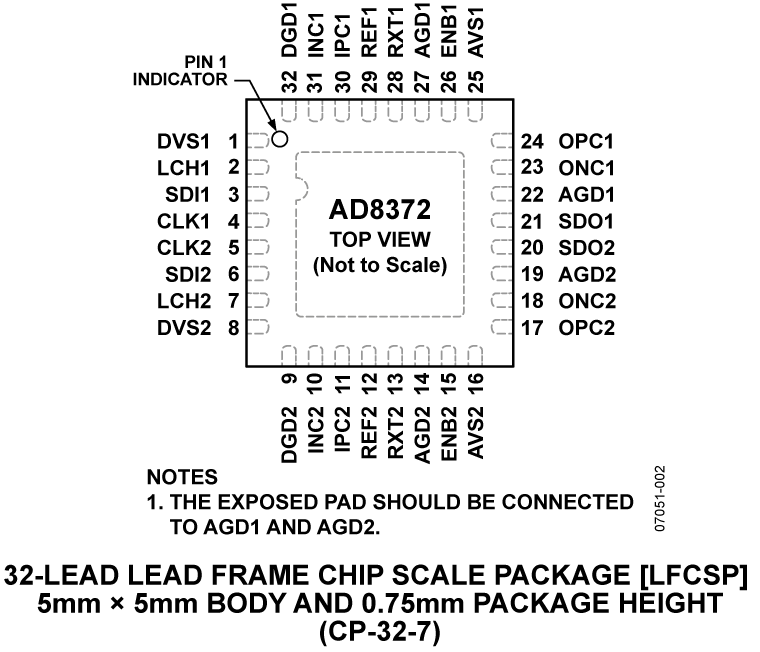

- 32-lead LFCSP, 5 mm × 5 mm package

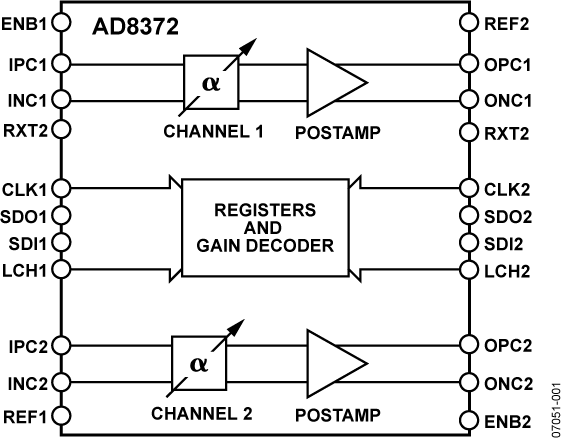

The AD8372 is a dual, digitally controlled, variable gain amplifier (VGA) that provides precise gain control, high IP3, and low noise figure. The excellent distortion performance and moderate signal bandwidth make the AD8372 a suitable gain control device for a variety of multichannel receiver applications.
For wide input dynamic range applications, the AD8372 provides a broad 41 dB gain range. The gain is programmed through a bidirectional 4-pin serial interface. The serial interface consists of a clock, latch, data input, and data output lines for each channel.
The AD8372 provides the ability to set the transconductance of the output stage using a single external resistor. The RXT1 and RXT2 pins provide a band gap derived stable reference voltage of 1.56 V. Typically 2.0 kΩ shunt resistors to ground are used to set the maximum gain to a nominal value of 31 dB. The current setting resistors can be adjusted to manipulate the gain and distortion performance of each channel. This is a flexible feature in applications where it is desirable to trade off distortion performance for lower power consumption.
The AD8372 is powered on by applying the appropriate logic level to the ENB1, ENB2 pins. When powered down, the AD8372 consumes less than 2.6 mA and offers excellent input-to-output isolation. The gain setting is preserved when powered down.
Fabricated on an Analog Devices, Inc., high frequency BiCMOS process, the AD8372 provides precise gain adjustment capabilities with good distortion performance. The quiescent current of the AD8372 is typically 106 mA per channel. The AD8372 amplifier comes in a compact, thermally enhanced 5 mm × 5 mm 32-lead LFCSP package and operates over the temperature range of −40°C to +85°C.
Applications
- Differential ADC drivers
- CMTS upstream direct sampling receivers
- CATV modem signal scaling
- Generic RF/IF gain stages
- Single-ended-to-differential conversion
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
- {{newProjectText}} {{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
AD8372
Documentation
Filters
1 Applied
Evaluation Design File
2
zip
456 kB
zip
456 kB
Frequently Asked Question
1
HTML
Documentation
Data Sheet 1
Evaluation Design File 1
Frequently Asked Question 1
Product Selection Guide 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
---|---|---|---|
AD8372ACPZ-R7 | 32-Lead LFCSP (5mm x 5mm w/ EP) |
|
|
AD8372ACPZ-WP | 32-Lead LFCSP (5mm x 5mm w/ EP) |
|
- AD8372ACPZ-R7
- Pin/Package Drawing
- 32-Lead LFCSP (5mm x 5mm w/ EP)
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- AD8372ACPZ-WP
- Pin/Package Drawing
- 32-Lead LFCSP (5mm x 5mm w/ EP)
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Nov 10, 2014
- 14_0047
Conversion of 5x5mm body Size LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to Amkor Philippines.
Oct 28, 2009
- 08_0008
Qualification of 8" 0.6um BiCMOS wafer fab process at Analog Devices, Limerick, Ireland.
AD8372ACPZ-R7
PRODUCTION
AD8372ACPZ-WP
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Nov 10, 2014
- 14_0047
Conversion of 5x5mm body Size LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to Amkor Philippines.
Oct 28, 2009
- 08_0008
Qualification of 8" 0.6um BiCMOS wafer fab process at Analog Devices, Limerick, Ireland.
Software & Part Ecosystem
Evaluation Kits 1
EVAL-AD8372
AD8372 Evaluation Board
Product Detail
AD8372-EVALZ is a fully populated, 4-layer, FR4-based evaluation board designed to allow easy evaluation of all features of the AD8372 DVGA. The evaluation board contains bypassable transformers to allow single ended or differential inputs and outputs on both DVGA channels, and a 25 pin D-Sub connector for external digital control of the on chip SPI port. This evaluation board requires only a single supply within the range of 4.5 V to 5.5 V.
