AD830

High Speed, Video Difference Amplifier

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.D)
Documentation View All Documentation
SPICE Model AD830 SPICE Macro Model Rev. A, 5/93 Download 2.47 K SPICE Model AD830A SPICE Macro Model Rev. A, 5/93 Download 2.58 K SPICE Model AD830J SPICE Macro Model Rev. A, 5/93 Download 2.59 K SPICE Model AD830S SPICE Macro Model Rev. A, 5/93 Download 2.59 K
Part Models 6
1ku List Price Starting From $5.80
Features
  • Differential amplification
  • Wide common-mode voltage range: +12.8 V to −12 V
  • Differential voltage: ±2 V
  • High CMRR: 60 dB at 4 MHz
  • Built-in differential clipping level: ±2.3 V
  • Fast dynamic performance
  • 85 MHz unity gain bandwidth
  • 35 ns settling time to 0.1%
  • 360 V/μs slew rate
  • Symmetrical dynamic response
  • Excellent video specifications
  • See datasheet for additional features

Additional Details
show more Icon

The AD830 is a wideband, differencing amplifier designed for use at video frequencies but also useful in many other applications. It accurately amplifies a fully differential signal at the input and produces an ouput voltage referred to a user-chosen level. The undesired common-mode signal is rejected, even at high frequencies. High impedance input ease interfacing to finite source impedances and thus preserve the excellent common-mode rejection. In many respects, it offers significant improvements over discrete difference amplifier approaches, in particular in high frequency common-mode rejection.

The wide common-mode and differential-voltage range of the AD830 make it particularly useful and flexible in level shifting applications, but at lower power dissipation than discrete solutions. Low distortion is preserved over the many possible differential and common-mode voltages at the input and output.

Good gain flatness and excellent differential gain of 0.06% and phase of 0.08° make the AD830 suitable for many video system applications. Furthermore, the AD830 is suited for general purpose signal processing from dc to 10 MHz.

APPLICATIONS

  • Differential line receiver
  • High speed level shifter
  • High speed in-amp
  • Differential to single-ended conversion
  • Resistorless summation and subtraction
  • High speed analog-to-digital converter
Show More Arrow image
file View Data Sheet (Rev.D)
Documentation View All Documentation
SPICE Model AD830 SPICE Macro Model Rev. A, 5/93 Download 2.47 K SPICE Model AD830A SPICE Macro Model Rev. A, 5/93 Download 2.58 K SPICE Model AD830J SPICE Macro Model Rev. A, 5/93 Download 2.59 K SPICE Model AD830S SPICE Macro Model Rev. A, 5/93 Download 2.59 K
Part Models 6
1ku List Price Starting From $5.80
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

AD830

Documentation

8
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • Application Note
  • All
    TickIcon
  • English
  • Chinese
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 01/01/2000
English

AD830: High Speed, Video Difference Amplifier Data Sheet (Rev.D)

Open PDF File

redirect
531.43 K
download

Download PDF

PDF Vector

PDF

UPDATED 01/01/1999
English

AD830: Military Data Sheet

Open PDF File

redirect
download

Download PDF

Application Note

6

PDF Vector

pdf

UPDATED 12/04/2003
English
AN-692: Universal Precision Op Amp Evaluation Board (Rev.A) redirect icon

621 kB

download

Download PDF

PDF Vector

pdf

UPDATED 12/04/2003
Chinese
AN-692: 通用精密运算放大器评估板 (Rev.0) redirect icon

541 kB

download

Download PDF

PDF Vector

pdf

UPDATED 12/04/2003
Japanese
AN-692: 汎用高精度オペアンプ評価用ボード (Rev.A) redirect icon

523 kB

download

Download PDF

PDF Vector

pdf

UPDATED 02/14/2015
English
AN-282: Fundamentals of Sampled Data Systems redirect icon

2131 kB

download

Download PDF

PDF Vector

pdf

UPDATED 11/09/2007
Chinese
AN-282: 采样数据系统基本原理[中文版] (Rev.A) redirect icon

1559 kB

download

Download PDF

PDF Vector

pdf

UPDATED 02/14/2015
Japanese
AN-282: サンプル・データ・システムの基本 redirect icon

1606 kB

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models

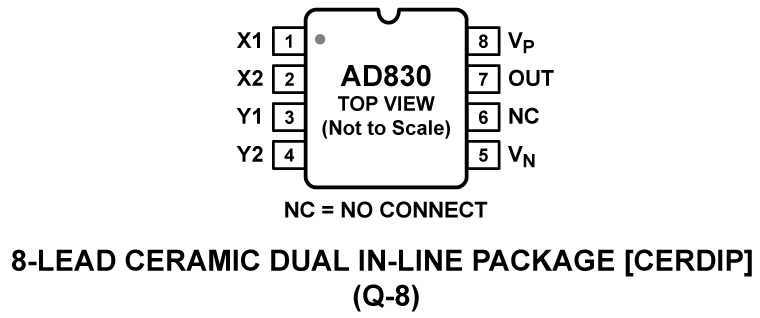

5962-9313001MPA 8-Lead CerDIP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

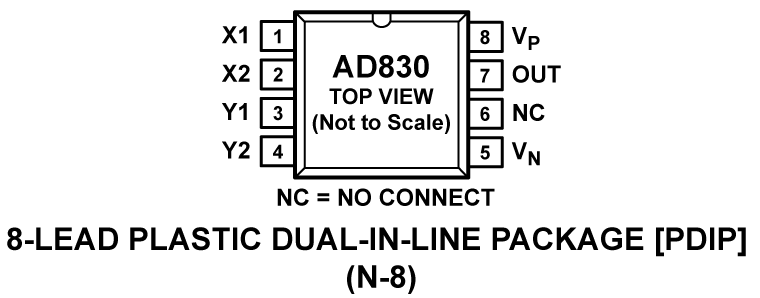

AD830ANZ 8-Lead PDIP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

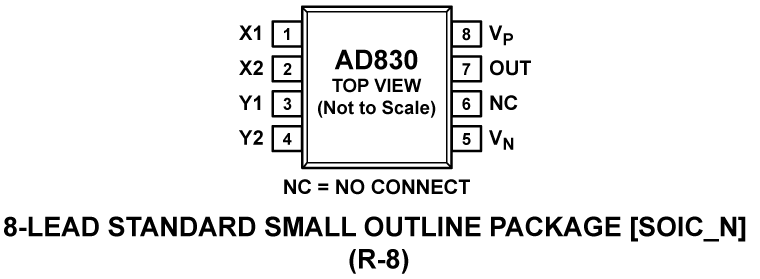

AD830ARZ 8-Lead SOIC external-link
