AD8231

PRODUCTION

Zero Drift, Digitally Programmable Instrumentation Amplifier

Viewing:

Overview

  • Digitally/pin-programmable gain
    • G = 1, 2, 4, 8, 16, 32, 64, or 128
  • Specified from −40°C to +125°C
    • 50 nV/°C maximum input offset drift
    • 10 ppm/°C maximum gain drift
  • Excellent dc performance
    • 80 dB minimum CMR, G = 1
    • 15 μV maximum input offset voltage
    • 500 pA maximum bias current
    • 0.7 μV p-p noise (0.1 Hz to 10 Hz)
  • See data sheet for additional features
AD8231-EP supports defense and aerospace applications (AQEC standard)
  • Download AD8231-EP data sheet (pdf)
  • Military temperature range: (−55°C to +125°C)
  • Controlled manufacturing baseline
  • One assembly/test site
  • One fabrication site
  • Enhanced product change notification
  • Qualification data available on request
  • V62/12646 DSCC Drawing Number

The AD8231 is a low drift, rail-to-rail, instrumentation amplifier with software-programmable gains of 1, 2, 4, 8, 16, 32, 64, or 128. The gains are programmed via digital logic or pin strapping.

The AD8231 is ideal for applications that require precision performance over a wide temperature range, such as industrial temperature sensing and data logging. Because the gain setting resistors are internal, maximum gain drift is only 10 ppm/°C for gains of 1 to 32. Because of the auto-zero input stage, maximum input offset is 15 μV and maximum input offset drift is just 50 nV/°C. CMRR is 80 dB for G = 1, increasing to 110 dB at higher gains.

The AD8231 also includes an uncommitted op amp that can be used for additional gain, differential signal driving, or filtering. Like the in-amp, the op amp has an auto-zero architecture, rail-to-rail input, and rail-to-rail output.

The AD8231 includes a shutdown feature that reduces current to a maximum of 1 μA. In shutdown, both amplifiers also have a high output impedance, which allows easy multiplexing of multiple amplifiers without additional switches.

The AD8231 is specified over the extended industrial tempera-ture range of −40°C to +125°C. It is available in a 4 mm × 4 mm 16-lead LFCSP.

Applications

  • Pressure and strain transducers
  • Thermocouples and RTDs
  • Programmable instrumentation
  • Industrial controls
  • Weigh scales
  • Automotive controls

AD8231
Zero Drift, Digitally Programmable Instrumentation Amplifier

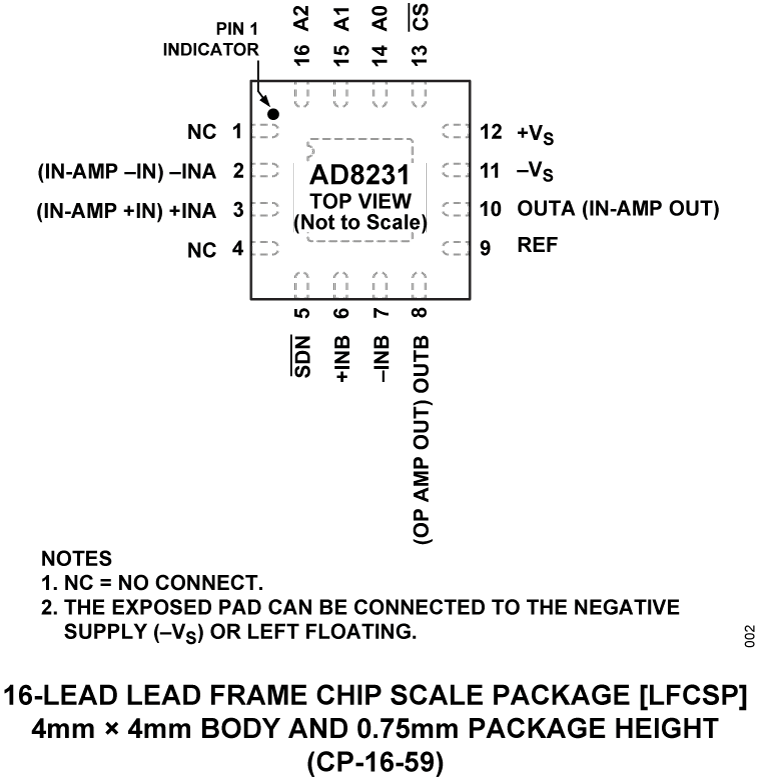

AD8231 Functional Block Diagram AD8231 Pin Configuration
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice


Models for the following parts are available in LTspice:

  • AD8231

In-Amp Diamond Plot Tool

The Diamond Plot Tool is a web application that generates a configuration-specific Output Voltage Range vs. Input Common-Mode Voltage graph, also known as the Diamond Plot, for Analog Devices Instrumentation Amplifiers. Based on user inputs such as supply voltage, gain, and input signal range, the tool detects saturation and recommends in-amps for which the input signal is in-range and the configuration is valid. Avoid saturation, find the best in-amp for your design, and save time.

Open Tool
LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.


Evaluation Kits

eval board
EVAL-AD8231

AD8231 Evaluation Board

Product Details

The AD8231-EVALZ has two AD8231s mounted on it. Z1 is the AD8231 on the left side of the board. It is configured to allow access of the in-amp and op amp separately. Z2 is the AD8231 on the right side of the board. It is set up as a differential output configuration. See AD8231-EVALZ data sheet for complete instruction.


EVAL-AD8231
AD8231 Evaluation Board
AD8231 evaluation board (angle) AD8231 evaluation board (bottom) AD8231 evaluation board (top)
