AD8229S
Aerospace 1 nV/√Hz Low Noise Instrumentation Amplifier
Top
Overview
Features and Benefits
- Low noise
1 nV/√Hz input noise
45 nV/√Hz output noise - Excellent ac specifications
15 MHz bandwidth (G = 1)
1.2 MHz bandwidth (G = 100)
22 V/μs slew rate
THD: 130 dBc (1 kHz, G = 1)
- High CMRR
126 dB (min) at G = 100
80 dB (min) to 5 kHz, G = 1 - Versatile
±4 V to ±17 V dual supply
Gain set with single resistor
(G = 1 to 1000)
Product Details
The AD8229 is an ultralow noise instrumentation amplifier designed for measuring small signals in the presence of large common-mode voltages and high temperatures.
The AD8229 has been designed for high temperature operation. The process is dielectrically isolated to avoid leakage currents at high temperatures. The design architecture was chosen to compensate for the low VBE voltages at high temperatures.
The AD8229 excels at measuring tiny signals. It delivers industry leading 1 nV/√Hz input noise performance. The high CMRR of the AD8229 prevents unwanted signals from corrupting the acquisition. The CMRR increases as the gain increases, offering high rejection when it is most needed.
The AD8229 is one of the fastest instrumentation amplifiers available. Its current feedback architecture provides high bandwidth at high gain, for example, 1.2 MHz at G = 100. The design includes circuitry to improve settling time after large input voltage transients. The AD8229 was designed for excellent distortion performance, allowing use in demanding applications such as vibration analysis.
Gain is set from 1 to 1000 with a single resistor. A reference pin allows the user to offset the output voltage. This feature can be useful when interfacing with analog-to-digital converters.
Product Categories
Markets and Technologies
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Documentation & Resources
-
AD8229S High Dose Rate Radiation Report7/31/2015
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|

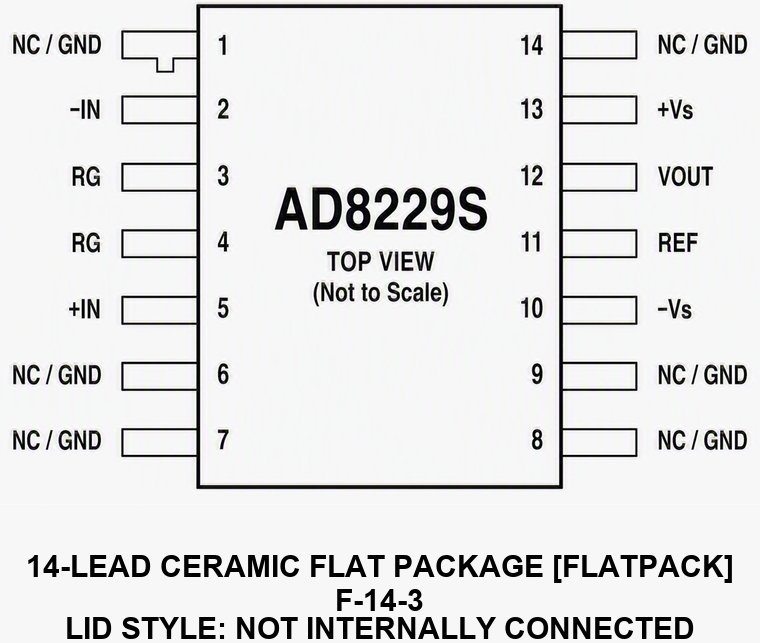

| 5962L1420502VXA | Material Declaration | Reliability Data | CER. FLATPACK WITH LEADS | |
| 5962R1420501VXA | Material Declaration | Reliability Data | CER. FLATPACK WITH LEADS | |
| AD8229AF-EMX | Material Declaration | Reliability Data | CER. FLATPACK WITH LEADS | |
| Wafer Fabrication Data |
