Features and Benefits

  • ±4000 V HBM ESD
  • High common-mode voltage range
    −2 V to +65 V operating
    −3 V to +68 V survival
  • Buffered output voltage
  • Wide operating temperature range
    8-Lead SOIC_N: −40°C to +125°C
  • Excellent ac and dc performance
    6 μV/°C typical offset drift
    −8 ppm/°C typical gain drift
    120 dB typical CMRR at dc
  • Qualified for Automotive Applications

Product Details

The AD8215 is a high voltage, precision current shunt monitor. It features a set gain of 20 V/V, with a maximum ±0.3% gain error over the entire temperature range. The buffered output voltage directly interfaces with any typical converter. Excellent common-mode rejection from −2 V to +65 V is independent of the 5 V supply. The AD8215 performs unidirectional current measurements across a shunt resistor in a variety of industrial and automotive applications, such as motor controls, solenoid controls, or battery management.

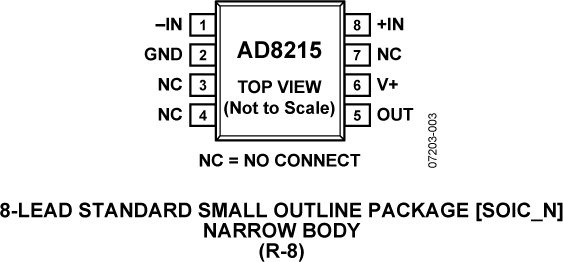

Special circuitry is devoted to output linearity being maintained throughout the input differential voltage range of 0 mV to 250 mV, regardless of the common-mode voltage present. The AD8215 has an operating temperature range of −40°C to +125°C and is offered in a small 8-lead SOIC_N package.


  • High-side current sensing
  • Motor controls
  • Transmission controls
  • Engine management
  • Suspension controls
  • Vehicle dynamic controls
  • DC-to-dc converters
  • Qualified for Automotive
  • Product Lifecycle icon-recommended Production

    At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    AD8215WYRZ Material Declaration Reliability Data 8-Lead SOIC
    AD8215WYRZ-R7 Material Declaration Reliability Data 8-Lead SOIC
    AD8215WYRZ-RL Material Declaration Reliability Data 8-Lead SOIC
    AD8215YRZ Material Declaration Reliability Data 8-Lead SOIC
    AD8215YRZ-R7 Material Declaration Reliability Data 8-Lead SOIC
    AD8215YRZ-RL Material Declaration Reliability Data 8-Lead SOIC
