AD8213

PRODUCTION

Dual, High Voltage Current Shunt Monitor

Data Sheet (Rev. D) Product Selection Table

Part Models: 9
1ku List Price: Starting From $2.36

Viewing:

Overview

±4000 V human body model (HBM) ESD
High common-mode input voltage range
- −2 V to +65 V operating
- −3 V to +68 V survival
Buffered output voltage
Wide operating temperature range
- −40°C to +125°C for Y grade
- −40°C to +150°C for H grade
Excellent ac and dc performance
- −10 ppm/°C typical gain drift
- 120 dB typical CMRR at dc
Qualified for automotive applications

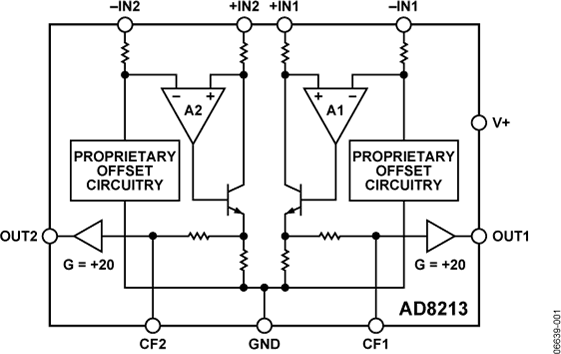

The AD8213 is a dual-channel, precision current sense amplifier. It features a set gain of 20 V/V, with a maximum ±0.5% gain error over the entire temperature range. The buffered output voltage directly interfaces with any typical converter. Excellent common-mode rejection from −2 V to +65 V, is independent of the 5 V supply. The AD8213 performs unidirectional current measurements across a shunt resistor in a variety of industrial and automotive applications, such as motor control, solenoid control, or battery management.

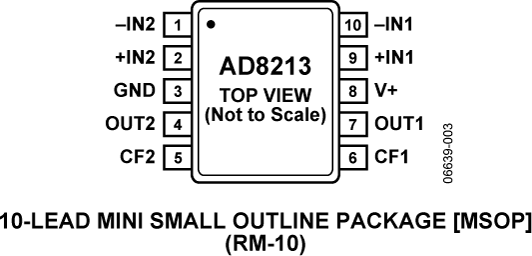

Special circuitry is devoted to output linearity being maintained throughout the input differential voltage range of 0 mV to 250 mV, regardless of the common-mode voltage present. The AD8213 also features additional pins that allow the user to low-pass filter the input signal before amplifying, via an external capacitor to ground. The AD8213 has an operating temperature range of −40°C to +125°C for the Y grade, −40°C to +150°C for the H grade and is offered in a small 10-lead MSOP package.

Applications

High-side current sensing

Motor controls

Transmission controls

Diesel injection controls

Engine management

Suspension controls

Vehicle dynamic controls

DC to DC converters

Part Models: 9
1ku List Price: Starting From $2.36

Documentation

Data Sheet 1

AD8213: Dual, High Voltage Current Shunt Monitor Data Sheet (Rev.D) 05/07/2007

Technical Articles 2

High-performance Adder Uses Instrumentation Amplifiers 09/03/2009

Auto-Zero Amplifiers 03/01/2010

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
AD8213WHRMZ	10-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8213WHRMZ-R7	10-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8213WHRMZ-RL	10-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8213WYRMZ	10-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8213WYRMZ-R7	10-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8213WYRMZ-RL	10-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8213YRMZ	10-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8213YRMZ-R7	10-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8213YRMZ-RL	10-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
