AD8212: Military Data Sheet1/6/2011
Overview
Features and Benefits
- Adjustable gain
- High common-mode voltage range 7 V to 65 V typical 7 V to >500 V with external pass transistor
- Current output
- Integrated 5 V series regulator
Product Details
The AD8212S is a high common-mode voltage, current shunt monitor. It accurately amplifies a small differential input voltage in the presence of large common-mode voltages up to 65 V (>500 V with an external PNP transistor). The AD8212S is ideal for current monitoring across a shunt resistor in applications controlling loads, such as motors and solenoids. The current output of the device is proportional to the input differential voltage. The user can select an external resistor to set the desired gain. The typical common-mode voltage range of the AD8212S is 7 V to 65 V. Another feature of the AD8212S is high voltage operation, which is achieved by using an external high voltage breakdown PNP transistor. In this configuration, the common-mode range of the AD8212S is equal to the breakdown of the external PNP transistor. Therefore, operation at several hundred volts is easily achieved. The AD8212S features a patented output base current compensation circuit for high voltage operation mode. This ensures that no base current is lost through the external transistor and excellent output accuracy is maintained regardless of common-mode voltage or temperature. Applications include: Current shunt measurement, Motor controls, DC-to-DC converters, Power supplies, Battery monitoring, Remote sensing
Product Categories
Markets and Technologies
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Documentation & Resources
-
AD8212S Displacement Damage Test Report9/14/2022
-
AD8212S High Dose Rate Radiation Report7/31/2015
-
AD8212S Low Dose Rate Radiation Report10/29/2013
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| 5962L0924402VHA | Material Declaration | Reliability Data | CERPAK(HERM CER SRF MOUNT) | |

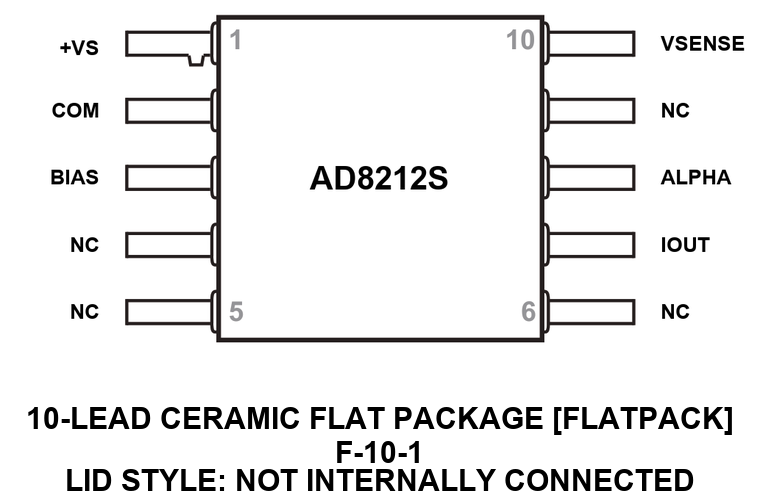

| 5962R0924401VHA | Material Declaration | Reliability Data | 10 ld Flat Pack | |
| AD8212AL-EMX | Material Declaration | Reliability Data | CERPAK(HERM CER SRF MOUNT) | |
| Wafer Fabrication Data |
