Overview
Features and Benefits
- ±8000 V HBM ESD for shunt-based applications
- AEC-Q100 qualified
- EMI filters included
- High common-mode voltage range
- −2 V to +50 V operating
- −20 V to +70 V survival
- Buffered output voltage
- Gain = 14 V/V
- Low-pass filter (single-pole or two-pole)
- Wide operating temperature range: −40°C to +125°C
- Excellent ac and dc performance
- ±1 mV voltage offset
- −5 ppm/°C typical gain drift
- 80 dB CMRR minimum dc to 10 kHz
- Qualified for automotive applications
Product Details
The AD8209A is a single-supply difference amplifier ideal for amplifying and low-pass filtering small differential voltages in the presence of a large common-mode voltage. The input common-mode voltage range extends from −2 V to +50 V at a single 5 V supply. The AD8209A is qualified per AEC-Q100 specifications. The amplifier offers enhanced input overvoltage and ESD protection, and includes electromagnetic interference (EMI) filtering.
Automotive applications demand robust, precision components for improved system control. The AD8209A provides excellent ac and dc performance, minimizing errors in the application. Typical offset and gain drift in the MSOP package are less than 5 μV/°C and −5 ppm/°C, respectively. The device also delivers a minimum common-mode rejection ratio (CMRR) of 80 dB from dc to 10 kHz.
The AD8209A features an externally accessible 100 kΩ resistor at the output of the preamplifier (A1) that can be used for low-pass filtering and for establishing gains other than 14 V/V.
Applications- High-side current sensing
- Motor controls
- Solenoid controls
- Power management
- Low-side current sensing
- Diagnostic protection
Product Categories
Markets and Technologies
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

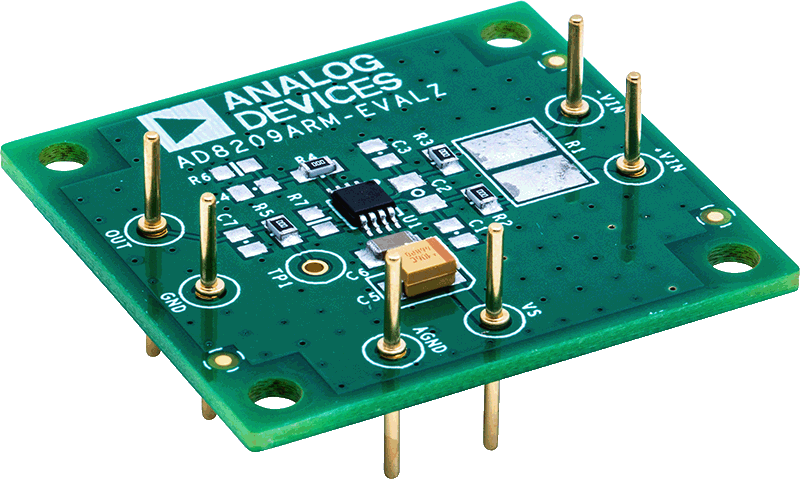

Evaluation Kits (1)
Documentation & Resources
Tools & Simulations
SPICE Models
CIR
AD8209A SPICE Macro Model
3.83 K
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| AD8209AWBRMZ | Material Declaration | Reliability Data | 8-Lead MSOP | |
| AD8209AWBRMZ-R7 | Material Declaration | Reliability Data | 8-Lead MSOP | |
| AD8209AWBRMZ-RL | Material Declaration | Reliability Data | 8-Lead MSOP | |
| Wafer Fabrication Data |
