Overview
Features and Benefits
- Triple high speed differential driver
- 225 MHz, −3 dB large signal bandwidth
- 450 MHz, −3 dB small signal bandwidth
- Easily drives 1.4 V p-p video signal into doubly terminated 100 Ω UTP cable
- 1600 V/µs slew rate
- Fixed internal gain of 2
- Internal common-mode feedback network
- Output balance error −60 dB @ 50 MHz
- On-chip sync-on-common-mode circuitry
- Output pull-down feature for line isolation
- Differential input and output
- See data sheet for additional features
Product Details
The AD8134 is a major advancement beyond using discrete op amps for driving differential RGB signals over twisted pair cable. The AD8134 is a triple, low cost differential or single-ended input to differential output driver, and each amplifier has a fixed gain of 2 to compensate for the attenuation of the line termination resistors. The AD8134 is specifically designed for RGB signals but can be used for any type of analog signals or high speed data transmission. The AD8134 is capable of driving either Category 5 (Cat-5) unshielded twisted pair (UTP) cable or differential printed circuit board transmission lines with minimal signal degradation.
A unique feature that allows the user to transmit balanced horizontal and vertical video sync signals over the three common-mode channels with minimal electromagnetic interference (EMI) radiation is included on-chip.
The outputs of the AD8134 can be set to a low voltage state that allows easy differential multiplexing of multiple drivers on the same twisted pair cable, when used with external series diodes.
The AD8134 driver is a natural complement to the AD8143, AD8129, and AD8130 differential receivers.
Manufactured on the Analog Devices next generation XFCB bipolar process, the AD8134 has a large signal bandwidth of 225 MHz and a slew rate of 1600 V/µs. The AD8134 has an internal common-mode feedback feature that provides output gain and phase matching that is balanced to −60 dB at 50 MHz, suppressing harmonics and reducing radiated EMI.

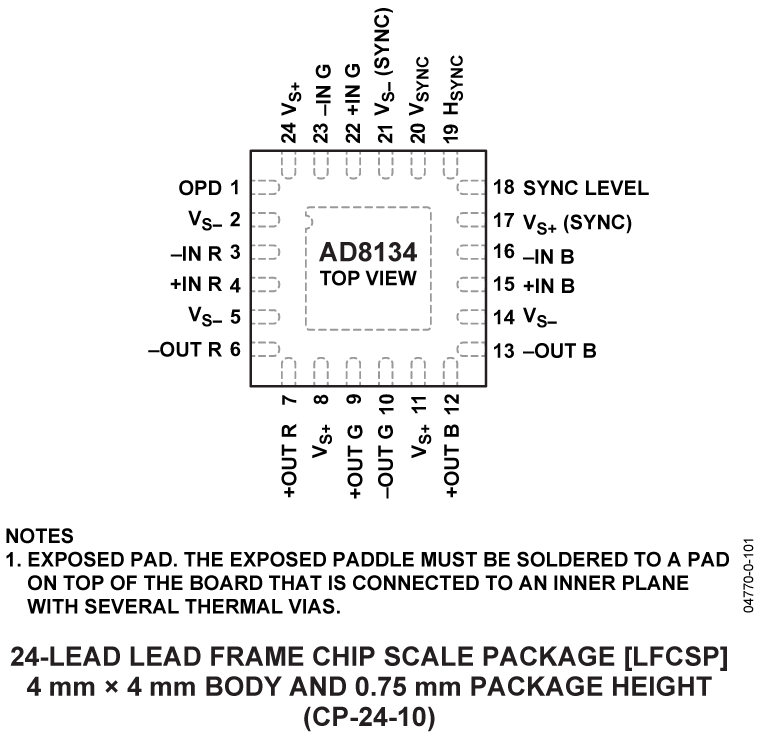

The AD8134 is available in a 24-lead LFCSP and can operate over the −40°C to +85°C extended industrial temperature range.
Applications
- Keyboard-video-mouse (KVM) networking
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
