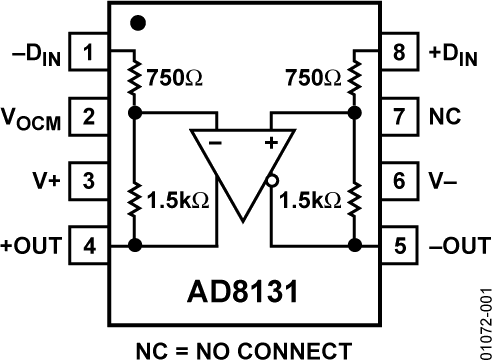

AD8131

PRODUCTION

Low-Cost, High Speed Differential Driver

Data Sheet (Rev. B) Product Selection Table

Part Models: 6
1ku List Price: Starting From $2.58

Viewing:

Part Details

High Speed:
400 MHz –3 dB Full Power Bandwidth
2000 V/µs Slew Rate
Fixed Gain of 2 with No External Components
Internal Common-Mode Feedback to Improve Gain and Phase Balance: –60 dB @10 MHz

Separate Input to Set the
Common-Mode Output Voltage
Low Distortion:
68 dB SFDR @ 5 MHz 200 Ω Load
Power Supply Range +2.7 V to ±5 V

Part Models: 6
1ku List Price: Starting From $2.58

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
AD8131ARMZ	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD8131ARMZ-REEL	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD8131ARMZ-REEL7	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD8131ARZ	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD8131ARZ-REEL	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD8131ARZ-REEL7	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 30, 2017 - 15_0176 Assembly Transfer of Select 8/10L MSOP Products to Amkor Philippines
		PCN15_0176_Form Material_Report Detailed Change Description Qualification Results Summary Qualification Results Summary
AD8131ARMZ	PRODUCTION
AD8131ARMZ-REEL	PRODUCTION
AD8131ARMZ-REEL7	PRODUCTION
Jan 5, 2015 - 14_0246 Qualification of ASE Chungli, as an Alternate Assembly Site for Select MSOP Devices
		PCN14_0246_Form Material_Report Detailed Change Description Qualification Results Summary
AD8131ARMZ	PRODUCTION
AD8131ARMZ-REEL	PRODUCTION
AD8131ARMZ-REEL7	PRODUCTION
May 15, 2012 - 10_0006 Halogen Free Material Change for mini SOIC Products
		PCN10_0006_Form Material_Report Qualification Report Summary Qualification Report Summary
AD8131ARMZ	PRODUCTION
AD8131ARMZ-REEL	PRODUCTION
AD8131ARMZ-REEL7	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

Sys-Parameter Models for Keysight Genesys

Sys-Parameter models contain behavioral parameters, such as P1dB, IP3, gain, noise figure and return loss, which describe nonlinear and linear characteristics of a device.

Open Tool

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

Open Tool

AD8131 SPICE Macro Models 2

Evaluation Kits

Universal Evaluation Board for Single Differential Amplifiers

Buy Now View Details

Product Details

The Universal Differential Amplifier Evaluation Boards can be used to evaluate single, high speed, fully differential amplifiers. The evaluation boards are bare boards that enable users to quickly prototype a variety of differential or single-ended circuits, which minimizes risk and reduces time to market. These boards are all RoHs Compliant. See references below on what board to order by lead count and package.
