AD7981

High Temperature, 16-Bit, 600 kSPS PulSAR ADC

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 3
1ku List Price Starting From $105.93
Features
  • Download AD7981-KGD Data Sheet. Available as Known Good Die and fully guaranteed to data sheet specifications.
  • Extreme high temperature operation
    • Specified temperature range
      • −55°C to +210°C (10-lead FLATPACK)
      • −55°C to +175°C (10-Lead MSOP)
  • High performance
    • Pseudo differential analog input range
      • 0 V to VREF with VREF between 2.4 V and 5.1 V
    • Throughput: 600 kSPS
      • Zero latency architecture
    • 16-bit resolution with no missing codes
    • INL: ±2.5 LSB maximum, DNL: ±0.9 LSB maximum
    • Dynamic range: 92 dB, VREF = 5 V
    • SNR: 91 dB at fIN = 1 kHz, VREF = 5 V
    • THD: −102 dB at fIN = 1 kHz, VREF = 5 V
    • SINAD: 90.5 dB at fIN = 1 kHz, VREF = 5 V
  • Low power dissipation
    • Single-supply 2.5 V operation with 1.8 V to 5 V logic interface
    • 2.25 mW typical at 600 kSPS (VDD only)
    • 4.65 mW typical at 600 kSPS (total)
    • 75 μW typical at 10 kSPS
  • Proprietary serial interface
    • SPI-/QSPI-/MICROWIRE-/DSP-compatible
  • Daisy-chain multiple ADCs and busy indicator
  • Small footprint
    • 10-lead, 3 mm × 3 mm, monometallic wire bonding MSOP
    • 110-lead, 0.255 inches × 0.255 inches, monometallic wire bonding FLATPACK
Additional Details
show more Icon

The AD7981 is a 16-bit, successive approximation, PulSAR® analog-to-digital converter (ADC) designed for high temperature operation. The AD7981 is capable of sample rates of up to 600 kSPS while maintaining low power consumption from a single power supply, VDD. It is a fast throughput, high accuracy, high temperature, successive approximation register (SAR) ADC, packaged in a small form factor with a versatile serial port interface (SPI).

On the CNV rising edge, the AD7981 samples an analog input, IN+, between 0 V and REF with respect to a ground sense, IN−. The reference voltage, REF, is applied externally and can be set independent of the supply voltage, VDD. The device power scales linearly with throughput.

The SPI-compatible serial interface also features the ability, using the SDI input, to daisy-chain several ADCs on a single, 3-wire bus and provides an optional busy indicator. It is compatible with 1.8 V, 2.5 V, 3 V, or 5 V logic, using the separate supply, VIO.

For space constrained applications, the AD7981 is available in a 10-lead mini small outline package (MSOP) with operation speci-fied from −55°C to +175°C and 10-lead ceramic flat package (FLATPACK) with operation specified from −55°C to +210°C. These packages are designed for robustness at extreme temperatures, including monometallic wire bonding, and are qualified for up to 1000 hours of operation at the maximum temperature rating.

The AD7981 is a member of a growing series of high temperature qualified products offered by Analog Devices, Inc. For a complete selection of available high temperature products, see the high temperature product list and qualification data available at www.analog.com/hightemp.

Applications

  • Oil and gas exploration
  • Avionics
  • Heavy industrial
  • High temperature environments
  • Scientific instrumentation
Part Models 3
1ku List Price Starting From $105.93

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
AD7981-KGD-WP
  • HTML
  • HTML
AD7981HFZ
  • HTML
  • HTML
AD7981HRMZ
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 23, 2017

- 17_0144

AD7981 Timing Specifications Data Sheet Update

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 23, 2017

- 17_0144

arrow down

AD7981 Timing Specifications Data Sheet Update

Evaluation Kit

Evaluation Kits 1

reference details image

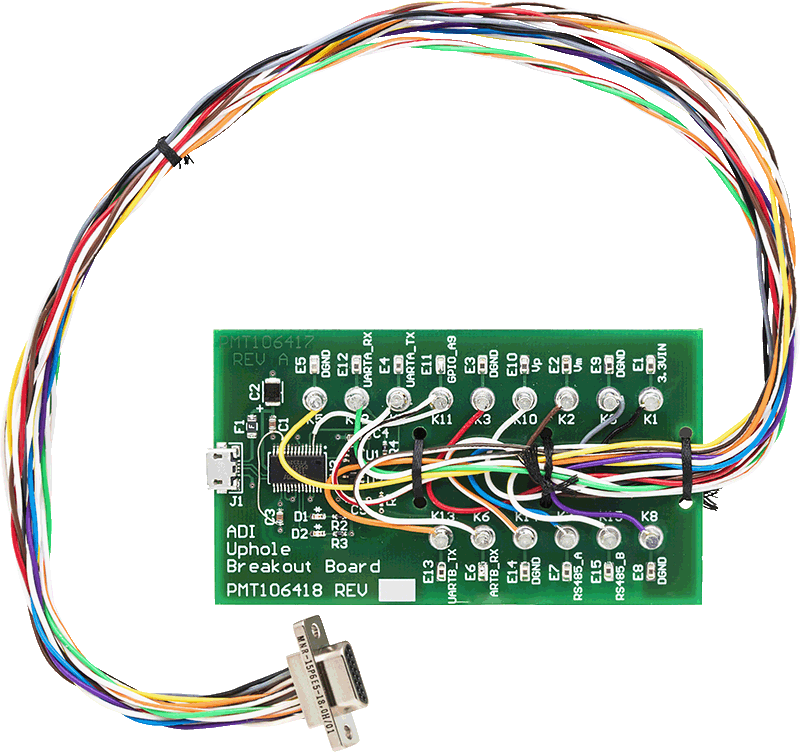

EV-HT-200CDAQ1

200°C High Temperature Data Acquisition and Control System Reference Design

zoom

EV-HT-200CDAQ1

200°C High Temperature Data Acquisition and Control System Reference Design

200°C High Temperature Data Acquisition and Control System Reference Design

Features and Benefits

  • Complete high temperature data acquisition reference platform with all components and assembly materials rated to at least 200°C
  • 10 channels of high precision analog to digital conversion
    • (2) Direct channels, 400ksps max
    • (8) Multiplexed channels, 16ksps max (including temp sensor)
    • Multiple GPIO for external control and optional external triggering
  • Complete software package including
    • Optimized firmware with RTOS for multiple modes of data acquisition
    • PC Host software for control, viewing and logging data
    • Source code available for all software
  • Form factor compatible with downhole oil/gas exploration instrumentation
  • Kit includes analog and digital/power breakout boards for rapid evaluation


Product Detail

EV-HT-200CDAQ1 builds on the CN0365 analog front end reference design from with the goal of providing a foundation for a high temperature, low power microcontroller-based data acquisition and control solution that meets the requirements for many downhole instrumentation and other high temperature applications. Based upon the AD7981 analog-to-digital SAR converter, this reference design demonstrates a full featured system with two high speed simultaneously sampled channels along with 8 additional multiplexed channels suitable for covering the acquisition requirements of a broad range of downhole tools (10 channels total). This analog front end is connected to the VORAGO Technologies VA10800 ARM® Cortex®-M0 based microcontroller via multiple SPI ports. Once acquired, the data can be processed locally or transmitted via a UART or optional RS485 communications interface. Other supporting components on the board, including memory, clock, power and passives are all rated for high temperature operation by their respective suppliers and verified to operate reliably at 200°C or higher. In addition to the hardware, open source firmware is supplied for the project using FreeRTOS with optimized drivers and data acqusition protocol with multiple modes of operation. Open source PC software included allows the users to connect to the board via UART to control acquisition modes, view data, log data and perform signal analysis. This platform is suitable for reference design, rapid prototyping (such as new sensor techniques) and lab testing of high temperature instrumentation systems.
Reference Designs

Reference Designs 1

High Temperature Data Acquisition System

16-Bit, 600 kSPS, Low Power Data Acquisition System for High Temperature Environments
