Features and Benefits
- 8-channel, 24-bit simultaneous sampling ADC
- Single-ended or true differential inputs
- PGA per channel (gains of 1, 2, 4, and 8)
- Low dc input current
- ±4 nA (differential)/±8 nA (single-ended)
- Up to 128 kSPS ODR per channel
- Programmable ODRs and bandwidth
- SRC for coherent sampling
- Sampling rate resolution up to 15.2 × 10−6 SPS
- Low latency sinc3 and sinc5 filter paths
- Adjustable phase synchronization
- Internal 2.5 V reference
- Two power modes
- High resolution mode
- Low power mode
- Optimizes power dissipation and performance
- Low resolution SAR ADC for system and chip diagnostics
- Power supply
- Bipolar (±1.65 V) or unipolar (3.3 V) supplies
- Digital I/O supply: 1.8 V to 3.6 V
- Performance temperature range: −40°C to +105°C
- Functional temperature range: −40°C to +125°C
- Combined ac and dc performance
- 107 dB SNR/dynamic range at 32 kSPS in high resolution mode (sinc5)
- −109 dB THD
- ±8 ppm of FSR INL
- ±15 μV offset error
- ±0.1% FS gain error
- ±10 ppm/°C typical temperature coefficient

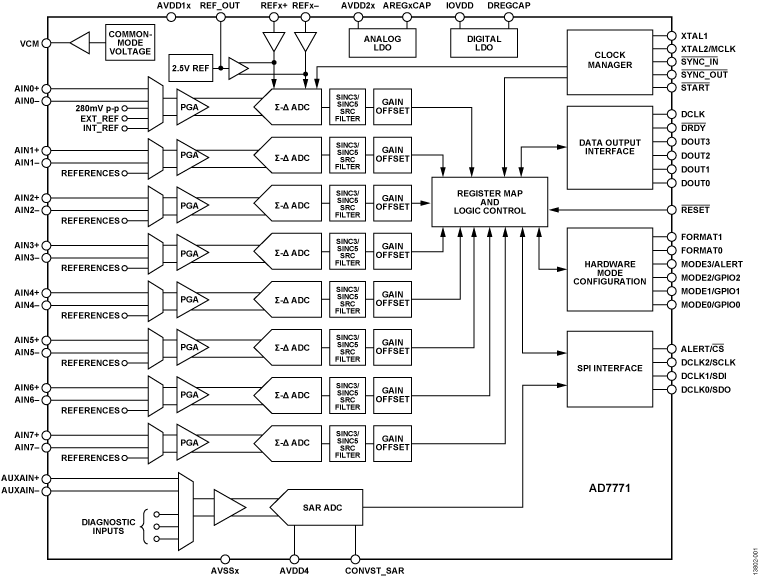

The AD7771 is an 8-channel, simultaneous sampling analog-to-digital converter (ADC). Eight full Σ-Δ ADCs are on-chip. The AD7771 provides an ultralow input current to allow direct sensor connection. Each input channel has a programmable gain stage allowing gains of 1, 2, 4, and 8 to map lower amplitude sensor outputs into the full-scale ADC input range, maximizing the dynamic range of the signal chain. The AD7771 accepts a VREF voltage from 1 V up to 3.6 V. The analog inputs accept unipolar (0 V to VREF) or true bipolar (±VREF/2 V) analog input signals with 3.3 V or ±1.65 V analog supply voltages, respectively. The analog inputs can be configured to accept true differential or single-ended signals to match different sensor output configurations.
Each channel contains an ADC modulator and a sinc3/sinc5, low latency digital filter. A sample rate converter (SRC) is provided to allow fine resolution control over the AD7771 output data rate (ODR). This control can be used in applications where the ODR resolution is required to maintain coherency with 0.01 Hz changes in the line frequency. The SRC is programmable through the serial port interface (SPI). The AD7771 implements two different interfaces: a data output interface and SPI control interface. The ADC data output interface is dedicated to transmitting the ADC conversion results from the AD7771 to the processor. The SPI writes to and reads from the AD7771 configuration registers and for the control and reading of data from the successive approximation register (SAR) ADC. The SPI can also be configured to output the Σ-Δ conversion data.
The AD7771 includes a 12-bit SAR ADC. This ADC can be used for AD7771 diagnostics without having to decommission one of the Σ-Δ ADC channels dedicated to system measurement functions. With the use of an external multiplexer, which can be controlled through the three general-purpose input/output pins (GPIOs), and signal conditioning, the SAR ADC can validate the Σ-Δ ADC measurements in applications where functional safety is required. In addition, the AD7771 SAR ADC includes an internal multiplexer to sense internal nodes.
The AD7771 contains a 2.5 V reference and reference buffer. The reference has a typical temperature coefficient of ±10 ppm/°C.
The AD7771 offers two modes of operation: high resolution mode and low power mode. High resolution mode provides a higher dynamic range while consuming 16.6 mW per channel; low power mode consumes only 5.25 mW per channel at a reduced dynamic range specification.
The specified operating temperature range is −40°C to +105°C, although the device is operational up to +125°C.
Note that throughout this data sheet, certain terms are used to refer to either the multifunction pins or a range of pins. The multifunction pins, such as DCLK0/SDO, are referred to either by the entire pin name or by a single function of the pin, for example, DCLK0, when only that function is relevant. In the case of ranges of pins, AVSSx refers to the following pins: AVSS1A, AVSS1B, AVSS2A, AVSS2B, AVSS3, and AVSS4.
- Power quality and measurement applications
- General-purpose data acquisition
- Electroencephalography (EEG)
- Industrial process control
Markets and Technologies
Comparable Parts Click to see all in Parametric Search
Sample Rate (max)
ADC SNR in dBFS (typ)
Offset LSB (typ)
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)

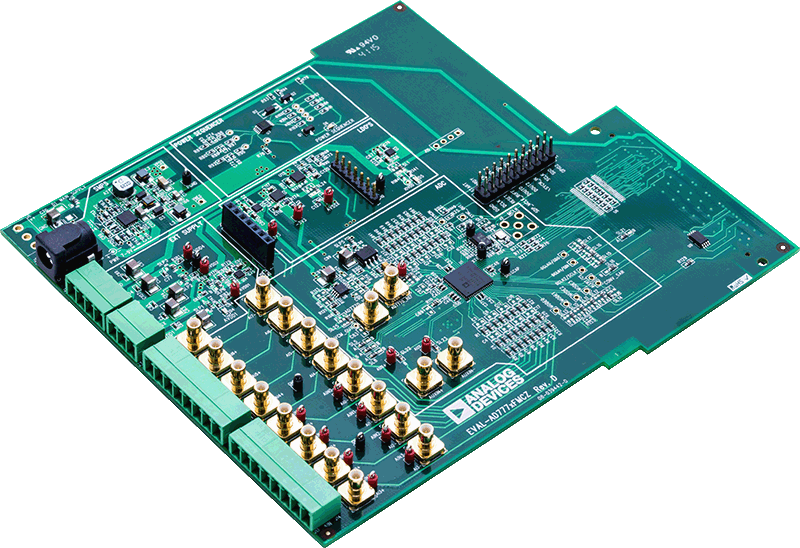

The EVAL-AD7770FMCZ/EVAL-AD7771FMCZ/EVAL-AD7779FMCZ evaluation kit features the AD7770, AD7771, and AD7779 24-bit, analog-to-digital converters (ADCs). The board interfaces with the system demonstration platform SDP-H1 controller board (EVAL-SDP-CH1Z). The SDP-H1 controller board supplies power to the EVAL-AD7770FMCZ/EVAL-AD7771FMCZ/EVAL-AD7779FMCZ evaluation board and also connects to a PC running a Windows® operating system via a USB cable. The AD777x evaluation software fully configures the AD7770, AD7771, and AD7779 device register functionality and provides dc and ac time domain analysis in the form of waveform graphs, histograms, and associated noise analysis for ADC performance evaluation.
The EVAL-AD7770FMCZ/EVAL-AD7771FMCZ/EVAL-AD7779FMCZ evaluation board allows the user to evaluate the features of the ADC. The user PC software executable controls the AD7770, AD7771, and AD7779 over the USB cable through the SDP-H1 controller board.
Full specifications for the AD7770, AD7771, or AD7779 are available in the AD7770, AD7771, or AD7779 data sheets and should be consulted in conjunction with user guide UG-884 when working with the evaluation board.
Documentation & Resources
AN-1405: Diagnostic Features on the AD7770 and AD7779 (Rev. A)4/3/2017
AN-1393: Translating System Level Protection and Measurement Requirements to ADC Specifications (Rev. 0)2/26/2016
AN-1392: How to Calculate Offset Errors and Input Impedance in ADC Converters with Chopped Amplifiers (Rev. 0)2/26/2016
AN-1388: Coherent Sampling for Power Quality Measurements Using the AD7779 24-Bit Simultaneous Sampling Sigma-Delta ADC (Rev. 0)2/26/2016
AD777X: FAQs (EngineerZone)10/21/2021
