Overview
Features and Benefits
- AD7741: One Single-Ended Input Channel
- AD7742: Two Differential or Three Pseudo-Differential Input Channels
- Integral Nonlinearity of 0.012% at fOUT(Max) = 2.75 MHz (AD7742) and at fOUT(Max) = 1.35 MHz (AD7741)
- Single +5 V Supply Operation
- Buffered Inputs
- Programmable Gain Analog Front-End
- On-Chip +2.5 V Reference
- Internal/External Reference Option
- Power Down to 35 µA Max
- Minimal External Components Required
- 8-Lead and 16-Lead DIP and SOIC Packages
Product Details

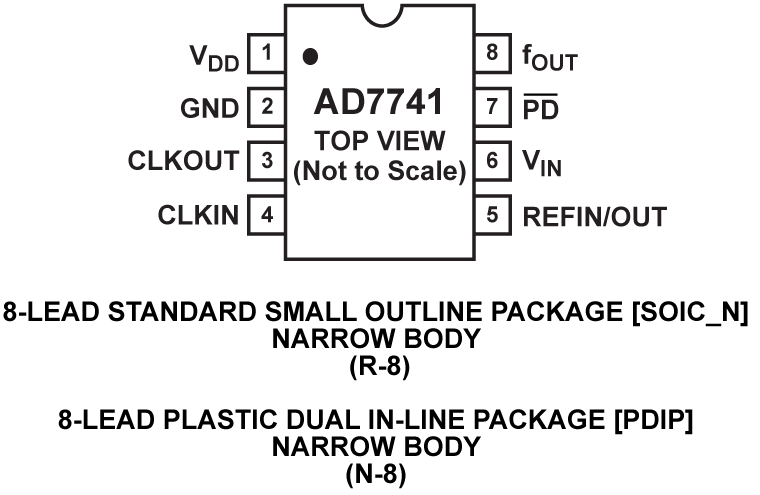

The AD7741/AD7742 are a new generation of synchronous voltage-to-frequency converters (VFCs). The AD7741 is a single-channel version in an 8-lead package (SOIC/DIP) and the AD7742 is a multichannel version in a 16-lead package (SOIC/DIP). No user trimming is required to achieve the specified performance.
The AD7741 has a single buffered input whereas the AD7742 has four buffered inputs that may be configured as two fully-differential inputs or three pseudo-differential inputs. Both parts include an on-chip +2.5 V bandgap reference that provides the user with the option of using this internal reference or an external reference.
The AD7741 has a single-ended voltage input range from 0 V to REFIN. The AD7742 has a differential voltage input range from –VREF to +VREF. Both parts operate from a single +5 V supply consuming typically 6 mA, and also contain a power down feature that reduces the current consumption to less than 35 μA.
Applications
- Low Cost Analog-to-Digital Conversion
- Signal Isolation
- AD7742 is obsolete
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
Documentation & Resources
-
AN-276: Analog to Digital Conversion by Using V/F Converters1/1/2000PDF646 kB
-
FAQs7/26/2017
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
---|---|---|---|---|
AD7741BNZ | Material Declaration | Reliability Data | 8-Lead PDIP | |
AD7741BRZ | Material Declaration | Reliability Data | 8-Lead SOIC | |
AD7741BRZ-REEL7 | Material Declaration | Reliability Data | 8-Lead SOIC | |
AD7741YRZ | Material Declaration | Reliability Data | 8-Lead SOIC | |
Wafer Fabrication Data |
