AD7543

NOT RECOMMENDED FOR NEW DESIGNS

12-Bit, Multiplying I_OUT, SERIAL

Data Sheet (Rev. B) Product Selection Table

Part Models: 9
1ku List Price: Starting From $24.43

Viewing:

Overview

Resolution: 12 Bits
Nonlinearity: ±1/2 LSB T_min to T_max
Low Gain Drift: 2ppm/°C typ, 5ppm/°C max
Serial Load on Positive or Negative Strobe
Asynchronous CLEAR Input for Initialization
Full 4-Quadrant Multiplication
Low Multiplying Feedthrough: 1 LSB max @10kHz

Requires no Schottky Diode Output Protection
Low Power Dissipation: 40 mW max
+5V Supply
Small Size:

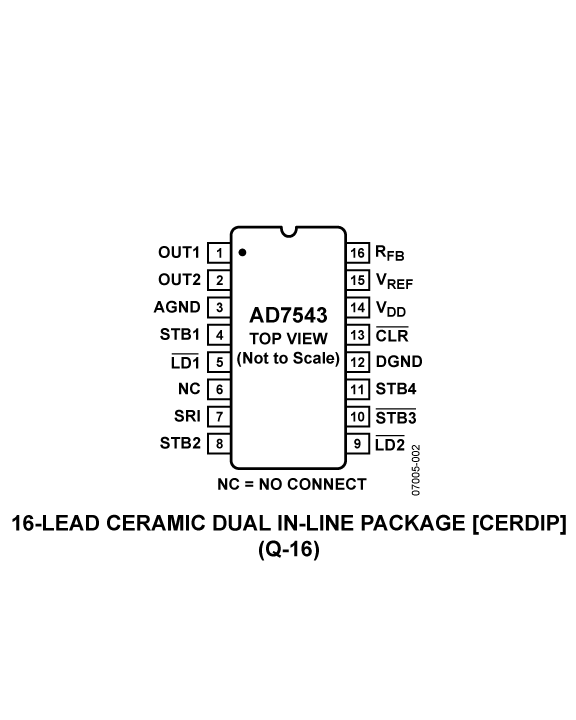

16-pin DIP

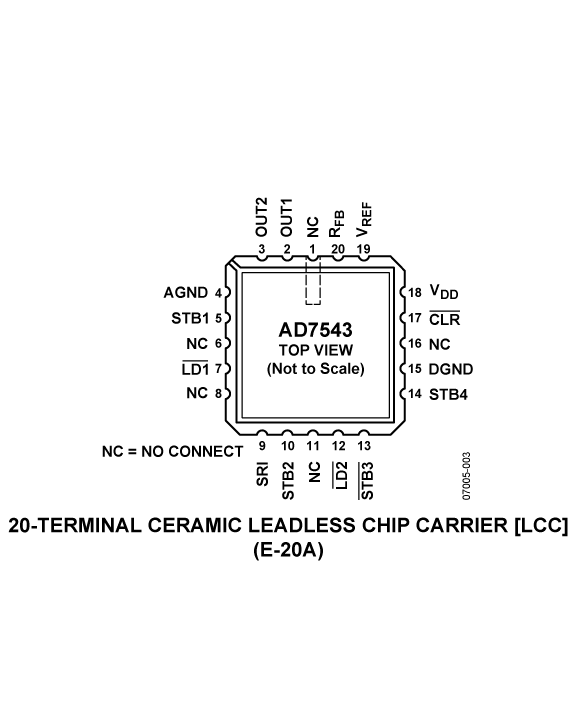

20-Terminal Surface Mount Package
Low Cost

The AD7543 is a precision 12-bit monolithic CMOS multiplying DAC designed for serial interface applications.

The DAC's logic circuitry consists of a 12-bit serial-in parallel-out shift register (Register A) and a 12-bit DAC input register (Register B). Serial data at the AD7543 SRI pin is clocked into Register A on the leading or trailing edge (user selected) of the strobe input. Once Register A is full its contents are loaded into Register B under control of the LOAD inputs.

Part Models: 9
1ku List Price: Starting From $24.43

Documentation

Data Sheet 1

AD7543: CMOS Serial Input 12-Bit DAC Scanned Data Sheet (Rev.B) 09/30/1980

Application Note 1

AN-225: 12-Bit Voltage-Output DACs for Single-Supply 5V and 12V Systems 01/01/2000

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
AD7543GKNZ	16-Lead PDIP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD7543GTQ/883B	16 ld CerDIP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD7543JNZ	16-Lead PDIP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD7543KNZ	16-Lead PDIP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD7543KPZ	20-Lead Flatpack	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD7543KRZ	16-Lead SOIC Wide	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD7543KRZ-REEL	16-Lead SOIC Wide	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD7543SQ/883B	16 ld CerDIP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD7543TE/883B	20 ld LCC	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Mar 29, 2021 - 21_0033 Assembly Site Transfer for 14/16L 300_MIL PDIP to Cirtek
		PCN21_0033_Form Material_Report Detailed Change Description Qualification Results Summary
AD7543GKNZ	PRODUCTION
AD7543JNZ	PRODUCTION
Aug 19, 2009 - 07_0024 Package Material Changes for SOT23, MiniSO, MQFP, PDIP, PLCC, SOIC (narrow and wide body), SSOP, TSSOP and TSSOP exposed pad
		Material_Report Material_Report Parts List PCN07_0024_Form Qual Data
AD7543GKNZ	PRODUCTION
AD7543JNZ	PRODUCTION
AD7543KNZ	PRODUCTION
Apr 9, 2018 - 16_0026 Qualify TeamQuest Technology, Inc. for Burn-in and Life Test of Military and Aerospace Devices
		PCN16_0026_Form Material_Report Qualification Results Summary
AD7543GTQ/883B
AD7543SQ/883B
AD7543TE/883B
Nov 7, 2012 - 12_0199 Qualification of New Conductive Silver-Filled Glass Die Attach Adhesive for Cerdip and Ceramic Flatpack (Cerpack) Packages.
		PCN12_0199_Form Material_Report Qualification Report Summary Datasheet Specification Comparison
AD7543GTQ/883B
AD7543SQ/883B
Nov 9, 2011 - 11_0050 Transfer of ADI Hermetics Assembly location from Paranaque, Manila to General Trias, Cavite Philippines
		PCN11_0050_Form Material_Report
AD7543GTQ/883B
AD7543SQ/883B
AD7543TE/883B
Nov 9, 2011 - 11_0182 Test Site Transfer from Analog Devices Philippines Inc in Paranaque to Analog Devices General Trias in Cavite, Philippines
		PCN11_0182_Form Material_Report
AD7543GTQ/883B
AD7543SQ/883B
AD7543TE/883B
Feb 8, 2010 - 04_0080 Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.
		PCN04_0080_Form Material_Report Reliability Report Reliability Report
AD7543GTQ/883B
AD7543JNZ	PRODUCTION
AD7543KNZ	PRODUCTION
AD7543KRZ	PRODUCTION
AD7543SQ/883B
AD7543TE/883B
Aug 4, 2010 - 10_0117 Halogen Free Material Change for SOIC_W Products at Carsem
		PCN10_0117_Form Material_Report Reliability Report
AD7543KRZ	PRODUCTION
AD7543KRZ-REEL	PRODUCTION
Feb 1, 2010 - 10_0020 Test Solutions Services, Inc.(TSSI) as Subcontractor Burn-in Facility.
		Material_Report PCN10_0020_Form Qual Plan
AD7543TE/883B		Material_Report PCN10_0020_Form Qual Plan

This is the most up-to-date revision of the Data Sheet.
