AD5762R
Complete Dual, 16-Bit, High Accuracy, Serial Input, Bipolar Voltage Output DAC
Top
Overview
Features and Benefits
- Complete dual, 16-bit, digital-to-analog converter (DAC)
- Programmable output range: ±10 V, ±10.2564 V, or ±10.5263 V
- ±1 LSB maximum INL error, ±1 LSB maximum DNL error
- Low noise: 60 nV/√Hz
- Settling time: 10 µs maximum
- Integrated reference buffers
- Internal reference: 10 ppm/°C maximum
- On-chip die temperature sensor
- Output control during power-up/brownout
- Programmable short-circuit protection
- Simultaneous updating via LDAC
- Asynchronous CLR to zero code
- Digital offset and gain adjust
- Logic output control pins
- DSP-/microcontroller-compatible serial interface
- Temperature range: −40°C to +85°C
- Industrial complementary metal-oxide semiconductor (iCMOS) process technology
Product Details

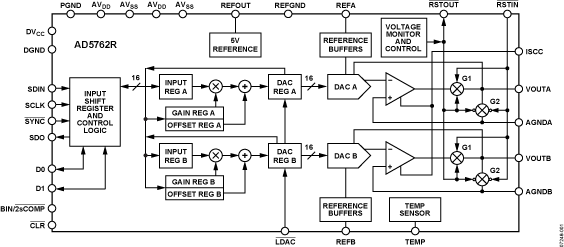

The AD5762R is a dual, 16-bit, serial input, bipolar voltage output DAC that operates from supply voltages of ±11.4 V to ±16.5 V. Nominal full-scale output range is ±10 V. The AD5762R provides integrated output amplifiers, reference buffers, and proprietary power-up/power-down control circuitry. The device also features a digital input/output port, programmed via the serial interface, and an analog temperature sensor. The device incorporates digital offset and gain adjust registers per channel.
The AD5762R is a high performance converter that provides guaranteed monotonicity, an integral nonlinearity (INL) of ±1 LSB, low noise, and a 10 µs settling time. The AD5762R includes an on-chip 5 V reference with a reference temperature coefficient of 10 ppm/°C maximum. During power-up when the supply voltages are changing, VOUTx is clamped to 0 V via a low impedance path.
The AD5762R is based on the iCMOS® technology platform, which is designed for analog systems designers within industrial/instrumentation equipment original equipment manufacturers (OEMs) who need high performance ICs at higher voltage levels. iCMOS enables the development of analog ICs capable of 30 V and operation at ±15 V supplies, while allowing reductions in power consumption and package size coupled with increased ac and dc performance.

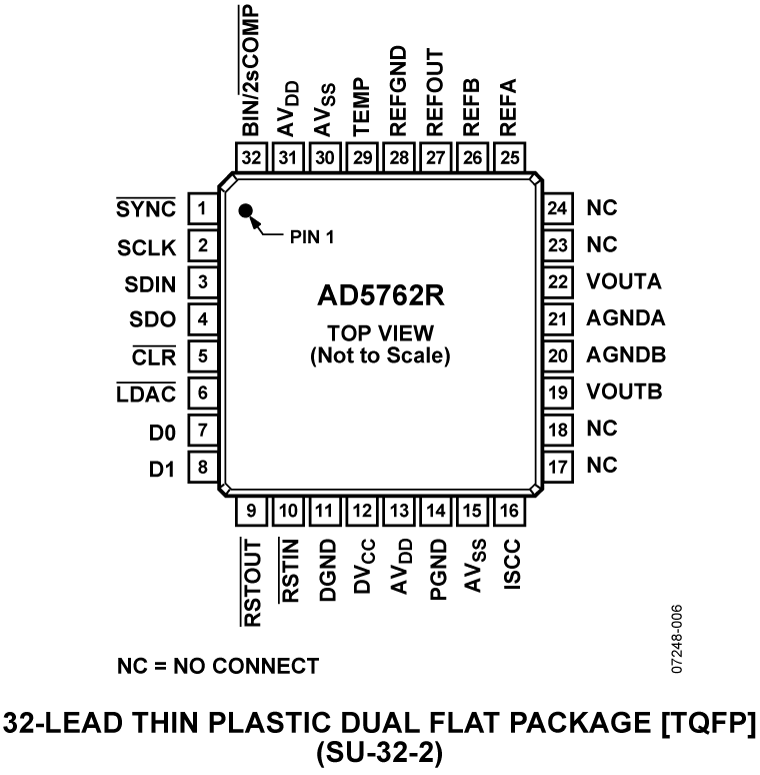

The AD5762R uses a serial interface that operates at clock rates of up to 30 MHz and is compatible with DSP and microcontroller interface standards. Double buffering allows the simultaneous updating of all DACs. The input coding is programmable to either twos complement or offset binary formats. The asynchronous clear function clears all DAC registers to either bipolar zero or zero scale, depending on the coding used. The AD5762R is ideal for both closed-loop servo control and open-loop control applications. The AD5762R is available in a 32-lead TQFP and offers guaranteed specifications over the −40°C to +85°C industrial temperature range.
Applications
- Industrial automation
- Open-loop/closed-loop servo control
- Process control
- Data acquisition systems
- Automatic test equipment
- Automotive test and measurement
- High accuracy instrumentation
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
