AD5666

Quad, 16 Bit D/A Converter with 10ppm/°C Max On-Chip Reference in 14-Lead TSSOP

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 6
1ku List Price Starting From $9.11
Features
  • Low power quad 16-bit DAC

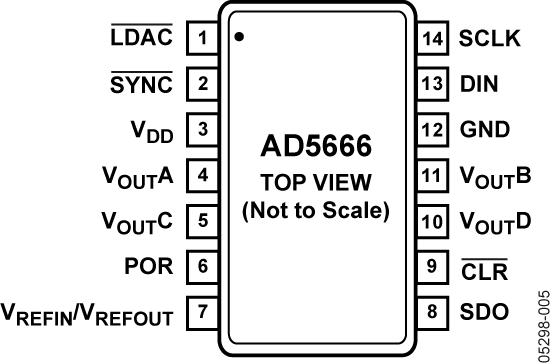

  • 14-lead TSSOP
  • On-chip 1.25 V/2.5 V, 5 ppm/°C reference
  • Power down to 400 nA at 5 V, 200 nA at 3 V
  • 2.7 V to 5.5 V power supply
  • Guaranteed monotonic by design
  • Power-on reset to zero scale or midscale
  • 3 power-down functions
  • See data sheet for additional features
Additional Details
show more Icon

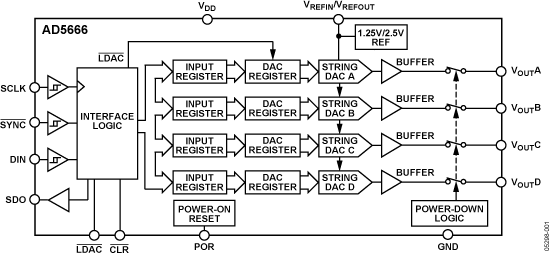

The AD5666 is a low power, quad, 16-bit, buffered voltage-output DAC. The part operates from a single 2.7 V to 5.5 V supply and is guaranteed monotonic by design.

The AD5666 has an on-chip reference with an internal gain of 2. The AD5666-1 has a 1.25 V 5 ppm/°C reference, giving a full-scale output of 2.5 V; the AD5666-2 has a 2.5 V 5 ppm/°C reference, giving a full-scale output of 5 V. The on-board reference is off at power-up, allowing the use of an external reference. The internal reference is turned on by writing to the DAC.

The part incorporates a power-on reset circuit that ensures that the DAC output powers up to 0 V (POR pin low) or to midscale (POR pin high) and remains powered up at this level until a valid write takes place. The part contains a power-down feature that reduces the current consumption of the device to 400 nA at 5 V and provides software-selectable output loads while in power-down mode for any or all DAC channels.

The outputs of all DACs can be updated simultaneously using the LDAC function, with the added functionality of user-select-able DAC channels to simultaneously update. There is also an asynchronous CLR that clears all DACs to a software-selectable code—0 V, midscale, or full scale.

The AD5666 utilizes a versatile 3-wire serial interface that operates at clock rates of up to 50 MHz and is compatible with standard SPI®, QSPI, MICROWIRE, and DSP interface standards. The on-chip precision output amplifier enables rail-to-rail output swing.

Product Highlights

  1. Quad, 16-bit DAC.
  2. On-chip 1.25 V/2.5 V, 5 ppm/°C reference.
  3. Available in 14-lead TSSOP.
  4. Selectable power-on reset to 0 V or midscale.
  5. Power-down capability. When powered down, the DAC typically consumes 200 nA at 3 V and 400 nA at 5 V.

Applications

  • Process control
  • Data acquisition systems
  • Portable battery-powered instruments
  • Digital gain and offset adjustment
  • Programmable voltage and current sources
  • Programmable attenuators
Part Models 6
1ku List Price Starting From $9.11

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
AD5666ARUZ-2
  • HTML
  • HTML
AD5666ARUZ-2REEL7
  • HTML
  • HTML
AD5666BRUZ-1
  • HTML
  • HTML
AD5666BRUZ-1REEL7
  • HTML
  • HTML
AD5666BRUZ-2
  • HTML
  • HTML
AD5666BRUZ-2REEL7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 5, 2021

- 21_0035

Amkor Philippines as an Alternate Site for TSSOP_4.4

AD5666ARUZ-2

PRODUCTION

AD5666ARUZ-2REEL7

PRODUCTION

AD5666BRUZ-1

PRODUCTION

AD5666BRUZ-1REEL7

PRODUCTION

AD5666BRUZ-2

PRODUCTION

AD5666BRUZ-2REEL7

PRODUCTION

Feb 11, 2011

- 10_0005

Halogen Free Material Change for TSSOP Products Assembled at Amkor

AD5666ARUZ-2

PRODUCTION

AD5666ARUZ-2REEL7

PRODUCTION

AD5666BRUZ-1

PRODUCTION

AD5666BRUZ-1REEL7

PRODUCTION

AD5666BRUZ-2

PRODUCTION

AD5666BRUZ-2REEL7

PRODUCTION

Feb 8, 2010

- 04_0080

Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.

AD5666ARUZ-2

PRODUCTION

AD5666BRUZ-1

PRODUCTION

AD5666BRUZ-2

PRODUCTION

Mar 20, 2009

- 09_0035

AD5666 Data Sheet Specification Change

AD5666ARUZ-2

PRODUCTION

AD5666ARUZ-2REEL7

PRODUCTION

AD5666BRUZ-1

PRODUCTION

AD5666BRUZ-1REEL7

PRODUCTION

AD5666BRUZ-2

PRODUCTION

AD5666BRUZ-2REEL7

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 5, 2021

- 21_0035

arrow down

Amkor Philippines as an Alternate Site for TSSOP_4.4

AD5666ARUZ-2

PRODUCTION

AD5666ARUZ-2REEL7

PRODUCTION

AD5666BRUZ-1

PRODUCTION

AD5666BRUZ-1REEL7

PRODUCTION

AD5666BRUZ-2

PRODUCTION

AD5666BRUZ-2REEL7

PRODUCTION

Feb 11, 2011

- 10_0005

arrow down

Halogen Free Material Change for TSSOP Products Assembled at Amkor

AD5666ARUZ-2

PRODUCTION

AD5666ARUZ-2REEL7

PRODUCTION

AD5666BRUZ-1

PRODUCTION

AD5666BRUZ-1REEL7

PRODUCTION

AD5666BRUZ-2

PRODUCTION

AD5666BRUZ-2REEL7

PRODUCTION

Feb 8, 2010

- 04_0080

arrow down

Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.

AD5666ARUZ-2

PRODUCTION

AD5666BRUZ-1

PRODUCTION

AD5666BRUZ-2

PRODUCTION

Mar 20, 2009

- 09_0035

arrow down

AD5666 Data Sheet Specification Change

AD5666ARUZ-2

PRODUCTION

AD5666ARUZ-2REEL7

PRODUCTION

AD5666BRUZ-1

PRODUCTION

AD5666BRUZ-1REEL7

PRODUCTION

AD5666BRUZ-2

PRODUCTION

AD5666BRUZ-2REEL7

PRODUCTION

Evaluation Kit

Evaluation Kits 1

EVAL-AD5666

AD5666 Evaluation Board

zoom

EVAL-AD5666

AD5666 Evaluation Board

AD5666 Evaluation Board

Features and Benefits

  • Full featured evaluation board for the AD5666
  • On-board reference
  • Various link options
  • PC control in conjunction with Analog Devices, Inc., system demonstration platform (SDP)
  • PC software for control of DAC

Product Detail

The AD5666 evaluation board (EVALAD5666SDZ) is designed to help customers quickly prototype new AD5666 circuits and reduce design time. The AD5666 operates from a single supply. The board populates the AD5666BRUZ-2, which has a 2.5 V, 5 ppm/°C reference, giving a full-scale output of 5 V. Additionally, the board populates 2.5 V and 5 V external references, giving a full-scale output of 2.5 V and 5 V, respectively.

Full data on the AD5666 can be found in the AD5666 data sheet, which should be consulted in conjunction with this document when using the evaluation board.

The evaluation board interfaces to the PC via the SDP board. Software is included in the evaluation board kit that allows you to easily program the AD5666.
