Features
|
|
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The AD565A uses 12 precision, high-speed bipolar current-steering switches, control amplifier and a laser-trimmed thin-film resistor network to produce a very fast, high accuracy analog output current. The AD565A also includes a buried Zener reference that features low-noise, long-term stability and temperature drift characteristics comparable to the best discrete reference diodes.
The combination of performance and flexibility in the AD565A has resulted from major innovations in circuit design, an important new high-speed bipolar process, and continuing advances in laser-wafer-trimming techniques (LWT). The AD565A have a 10-90% full-scale transition time less than 35 ns and settle to within ±1/2 LSB in 250 ns. It is laser-trimmed at the wafer level to ±1/8 LSB typical linearity. High speed and accuracy make the AD565A the ideal choice for high-speed display drivers as well as fast analog-to-digital converters.
The laser trimming process which provides the excellent linearity is also used to trim both the absolute value and the temperature coefficient of the reference of the AD565A resulting in a typical full-scale gain TC of 10 ppm/°C.
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
AD565S
Documentation
Filters
1 Applied
-
All
-
Data Sheet
-
Cross Reference Guide
-
All
-
English
Data Sheet
1
AD565S: Standard Military Drawing
Cross Reference Guide
1
Documentation
Data Sheet 1
Cross Reference Guide 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| 5962-9689201VJA |

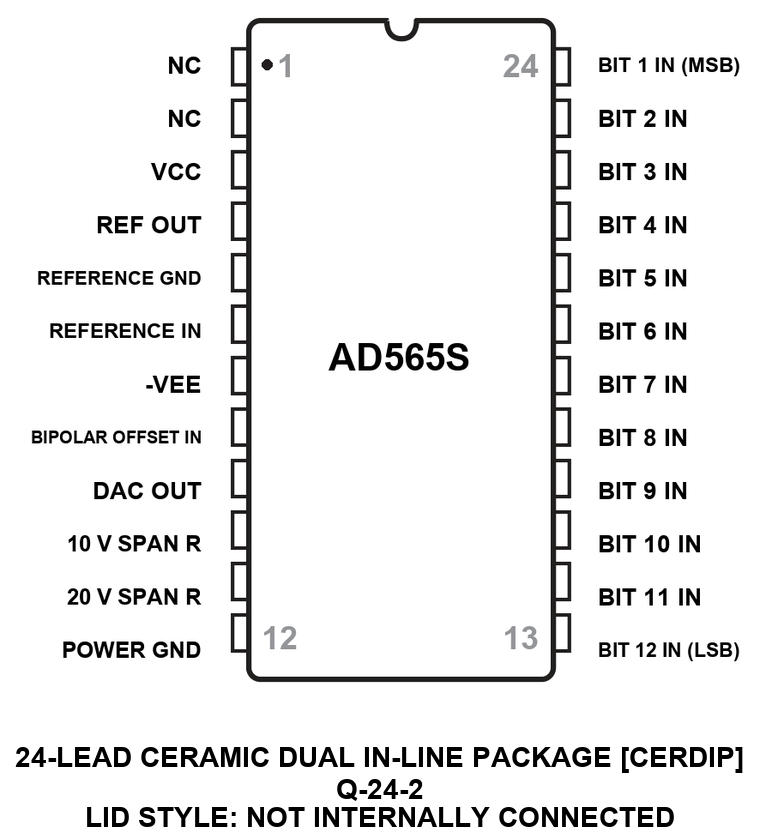

24-Lead CerDIP (Wide 0.6 Inch)
|
|
|
| 5962-9689202VJA |
24-Lead CerDIP (Wide 0.6 Inch)
|
|
|
| AD565-000C | 24 ld CerDIP(300 Mil) |
|
- 5962-9689201VJA
- Pin/Package Drawing
-
24-Lead CerDIP (Wide 0.6 Inch)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- 5962-9689202VJA
- Pin/Package Drawing
-
24-Lead CerDIP (Wide 0.6 Inch)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD565-000C
- Pin/Package Drawing
- 24 ld CerDIP(300 Mil)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Jul 30, 2018
- 16_0026
Qualify TeamQuest Technology, Inc. for Burn-in and Life Test of Military and Aerospace Devices
5962-9689201VJA
5962-9689202VJA
AD565-000C
Nov 18, 2015
- 15_0219
Laser Marking Standardization for Aerospace Packages
5962-9689201VJA
5962-9689202VJA
AD565-000C
Oct 2, 2013
- 13_0163
Qualify TSSI Cavite, Phils for Burn-in and Life Test of MIL-PRF-38535 QMLV Aerospace Devices
5962-9689201VJA
5962-9689202VJA
Nov 9, 2011
- 11_0050
Transfer of ADI Hermetics Assembly location from Paranaque, Manila to General Trias, Cavite Philippines
5962-9689201VJA
5962-9689202VJA
Nov 9, 2011
- 11_0182
Test Site Transfer from Analog Devices Philippines Inc in Paranaque to Analog Devices General Trias in Cavite, Philippines
5962-9689201VJA
5962-9689202VJA
Filter by Model
Part Models
Product Lifecycle
PCN
Jul 30, 2018
- 16_0026
Qualify TeamQuest Technology, Inc. for Burn-in and Life Test of Military and Aerospace Devices
5962-9689201VJA
5962-9689202VJA
AD565-000C
Nov 18, 2015
- 15_0219
Laser Marking Standardization for Aerospace Packages
5962-9689201VJA
5962-9689202VJA
AD565-000C
Oct 2, 2013
- 13_0163
Qualify TSSI Cavite, Phils for Burn-in and Life Test of MIL-PRF-38535 QMLV Aerospace Devices
5962-9689201VJA
5962-9689202VJA
Nov 9, 2011
- 11_0050
Transfer of ADI Hermetics Assembly location from Paranaque, Manila to General Trias, Cavite Philippines
Nov 9, 2011
- 11_0182
Test Site Transfer from Analog Devices Philippines Inc in Paranaque to Analog Devices General Trias in Cavite, Philippines
