AD5624
2.7 V to 5.5 V, 450 µA, Rail-to-Rail Output, Quad, 12-Bit nano DAC®
Show More
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- Low power quad nanoDACs: 12 Bits
- Guaranteed monotonic by design
- Relative Accuracy: ±12 LSBs max
- 10-lead MSOP and 3mm × 3mm LFCSP_WD package
- 2.7 V to 5.5 V power supply
- Power-on reset to zero
- Per channel power-down
- Serial interface, up to 50MHz
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The AD5624/AD5664, members of the nanoDAC® family, are low power, quad, 12-, 16-bit buffered voltage-out DACs that operate from a single 2.7 V to 5.5 V supply and are guaranteed monotonic by design.
The AD5624/AD5664 require an external reference voltage to set the output range of the DAC. The part incorporates a power-on reset circuit that ensures the DAC output powers up to 0 V and remains there until a valid write takes place. The parts contain a power-down feature that reduces the current consumption of the device to 480 nA at 5 V and provides software-selectable output loads while in power-down mode.
The low power consumption of these parts in normal operation makes them ideally suited to portable battery-operated equipment. The power consumption is 2.25 mW at 5 V, going down to 2.4 μW in power-down mode.
The AD5624/AD5664 on-chip precision output amplifier allows rail-to-rail output swing to be achieved.
The AD5624/AD5664 use a versatile 3-wire serial interface that operates at clock rates up to 50 MHz, and are compatible with standard SPI®, QSPI™, MICROWIRE™, and DSP interface standards.
PRODUCT HIGHLIGHTS
- Relative accuracy: ±12 LSBs maximum.
- Available in 10-lead MSOP and 10-lead, 3 mm × 3 mm, LFCSP_WD.
- Low power, typically consumes 1.32 mW at 3 V and 2.25 mW at 5 V.
- Maximum settling time of 4.5 μs (AD5624) and 7 μs (AD5664).
APPLICATIONS
- Process control
- Data acquisition systems
- Portable battery-powered instruments
- Digital gain and offset adjustment
- Programmable voltage and current sources
- Programmable attenuators
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
AD5624
Documentation
Filters
1 Applied
-
All
-
Data Sheet
-
All
-
English
-
Japanese
Documentation
Solutions Bulletin & Brochure 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| AD5624BCPZ-R2 |
10-Lead LFCSP (3mm x 3mm)
|
|
|
| AD5624BCPZ-REEL7 |
10-Lead LFCSP (3mm x 3mm)
|
|
|
| AD5624BRMZ |
10-Lead MSOP
|
|
|
| AD5624BRMZ-REEL7 |
10-Lead MSOP
|
|
- AD5624BCPZ-R2
- Pin/Package Drawing
-
10-Lead LFCSP (3mm x 3mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD5624BCPZ-REEL7
- Pin/Package Drawing
-
10-Lead LFCSP (3mm x 3mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD5624BRMZ
- Pin/Package Drawing
-
10-Lead MSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD5624BRMZ-REEL7
- Pin/Package Drawing
-
10-Lead MSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Aug 6, 2014
- 13_0223
Assembly and Test Transfer of Select 2x3mm and 3x3mm LFCSP Products to STATS ChipPAC China
AD5624BCPZ-R2
AD5624BCPZ-REEL7
PRODUCTION
Feb 8, 2010
- 04_0080
Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.
AD5624BCPZ-R2
AD5624BCPZ-REEL7
PRODUCTION
AD5624BRMZ
PRODUCTION
AD5624BRMZ-REEL7
PRODUCTION
May 15, 2012
- 10_0006
Halogen Free Material Change for mini SOIC Products
AD5624BRMZ
PRODUCTION
AD5624BRMZ-REEL7
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Aug 6, 2014
- 13_0223
Assembly and Test Transfer of Select 2x3mm and 3x3mm LFCSP Products to STATS ChipPAC China
AD5624BCPZ-R2
AD5624BCPZ-REEL7
PRODUCTION
Feb 8, 2010
- 04_0080
Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.
AD5624BCPZ-R2
AD5624BCPZ-REEL7
PRODUCTION
AD5624BRMZ
PRODUCTION
AD5624BRMZ-REEL7
PRODUCTION
May 15, 2012
- 10_0006
Halogen Free Material Change for mini SOIC Products
AD5624BRMZ
PRODUCTION
AD5624BRMZ-REEL7
PRODUCTION
Software & Part Ecosystem
| Parts | Product Life Cycle | Description | ||
|---|---|---|---|---|
|
isoPower1 |
||||
|
PRODUCTION |
Quad-Channel, 2.5 kV Isolators with Integrated DC-to-DC Converter (3/1 channel directionality) |
|||
|
Low Input Bias Current Op Amps (≤100 pA)1 |
||||
|
PRODUCTION |
Single-Supply, Rail-to-Rail, Low Power FET-Input Op Amp |
|||
|
Low Power Op Amps (≤ 1mA/amp) 1 |
||||
|
PRODUCTION |
Rail-to-Rail Dual Op Amp |
|||
|
Series Voltage References2 |
||||
|
PRODUCTION |
Ultraprecision, Low Noise, 3.00 V XFET® Voltage Reference |
|||
|
PRODUCTION |
5.0V Precision Micropower, Low Dropout, Low Voltage Reference |
|||
|
Standard Digital Isolators3 |
||||
|
PRODUCTION |
1 kV RMS Quad-Channel Digital Isolator |
|||
|
PRODUCTION |
1 kV RMS Quad-Channel Digital Isolator |
|||
|
PRODUCTION |
Triple-Channel Digital Isolator |
|||
|
USB Isolators1 |
||||
|
PRODUCTION |
Full/Low Speed USB Digital Isolator |
|||
Can't find the software or driver you need?
Request a Driver/SoftwareEvaluation Kits 1

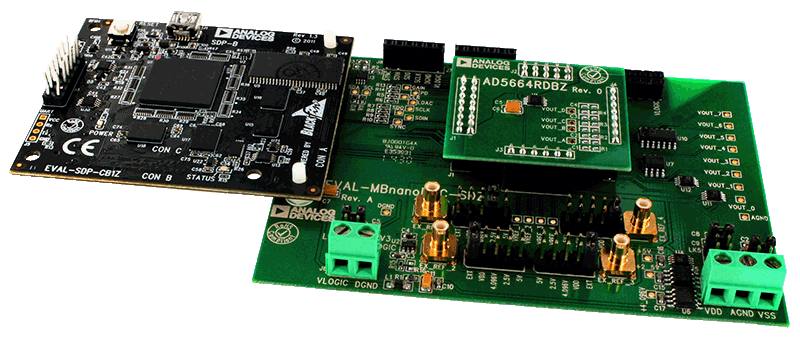

EVAL-AD5664R
AD5664R Evaluation Board
Product Detail
The EVAL-AD5664REBZ (Cypress based) is no longer available. Please use EVAL-AD5664RDBZ (SDP based).
The EVAL-AD5664RDBZ evaluation board helps users quickly prototype new AD5664R circuits and reduce design time. The AD5664R operates from a single 2.7 V to 5.5 V supply.
For full data, see the AD5664R data sheet, which must be used in conjunction with user guide UG-986 when using the EVALAD5664RDBZ evaluation board.
The EVAL-AD5664RDBZ evaluation board interfaces to the USB port of a PC via the SDP-B controller board. Software that allows users to program the AD5664R can be downloaded via the EVAL-AD5664RDBZ product page.
The EVAL-AD5664RDBZ evaluation board requires the EVALSDP-CB1Z board (SDP-B controller board).
Resources
Software
ZIP
4.71 M
ZIP
643.04 M
Evaluation Kits1
Tools & Simulations 2
Precision DAC Error Budget Tool
IBIS Model 1
IBIS Model
