AD5535B
32-Channel, 14-Bit DAC with Full-Scale Output Voltage Programmable from 50 V to 200 V
Show More
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support PageFeatures
- High integration
- 32-channel, 14-bit denseDAC® with integrated high voltage output amplifier
- Guaranteed monotonic
- Housed in 15 mm × 15 mm CSP_BGA package
- Full-scale output voltage programmable from 50 V to 200 V via reference input
- 550 µA drive capability
- Integrated silicon diode for temperature monitoring
- DSP-/microcontroller-compatible serial interface
- 1.2 MHz channel update rate
- Asynchronous RESET facility
- –10°C to +85°C temperature range
The AD5535B is a 32-channel, 14-bit denseDAC® with an on-chip high voltage output amplifier. This device is targeted for optical micro-electromechanical systems. The output voltage range is programmable via the REF_IN pin. The output range is 0 V to 50 V when REF_IN = 1 V, and 0 V to 200 V when REF_IN = 4 V. Each amplifier can source 550 μA, which is ideal for the deflection and control of optical MEMS mirrors.
The selected digital-to-analog converter (DAC) register is written to via the 3-wire interface. The serial interface operates at clock rates of up to 30 MHz and is compatible with DSP and micro-controller interface standards.
The device is operated with AVCC = 4.75 V to 5.25 V, DVCC = 2.7 V to 5.25 V, V+ = 4.75 V to 5.25 V, and VPP of up to 225 V. REF_IN is buffered internally on the AD5535B and should be driven from a stable reference source.
Applications
- Optical microelectromechanical systems (MEMS)
- Optical crosspoint switches
- Micropositioning applications using piezoelectric actuators
- Level setting in automotive test and measurement
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
- {{newProjectText}} {{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
AD5535B
Documentation
Filters
1 Applied
Data Sheet
1
User Guide
1
Documentation
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
---|---|---|---|
AD5535BKBCZ | 124-Ball CSP-BGA (15mm x 15mm x 1.4mm) |
|
- AD5535BKBCZ
- Pin/Package Drawing
- 124-Ball CSP-BGA (15mm x 15mm x 1.4mm)
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Sep 2, 2020
- 19_0304
AD5535B Bill of Materials and Minor Metal Mask Change
Feb 10, 2016
- 16_0031
Laminate Revision - AD5535B
May 21, 2015
- 15_0043
Removal of Production Burn-In for AD5535B Product
AD5535BKBCZ
Filter by Model
Part Models
Product Lifecycle
PCN
Sep 2, 2020
- 19_0304
AD5535B Bill of Materials and Minor Metal Mask Change
Feb 10, 2016
- 16_0031
Laminate Revision - AD5535B
May 21, 2015
- 15_0043
Removal of Production Burn-In for AD5535B Product
Software & Part Ecosystem
Parts | Product Life Cycle | Description |
---|---|---|
RECOMMENDED FOR NEW DESIGNS |
32-Channel, 14-Bit DAC with Full-Scale Output Voltage Programmable from 50 V to 200 V |
Can't find the software or driver you need?
Request a Driver/SoftwareEvaluation Kits 1

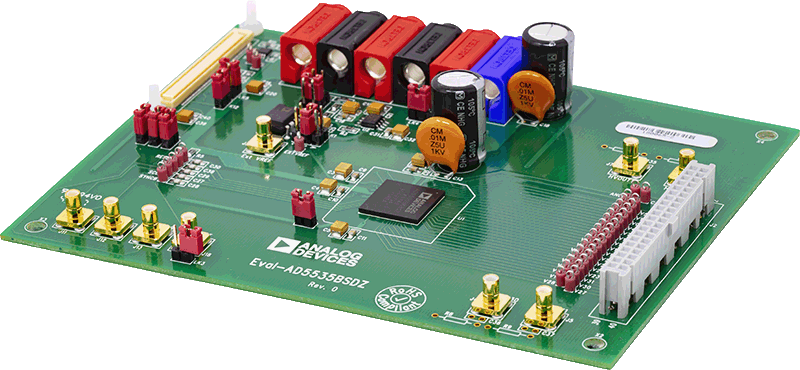

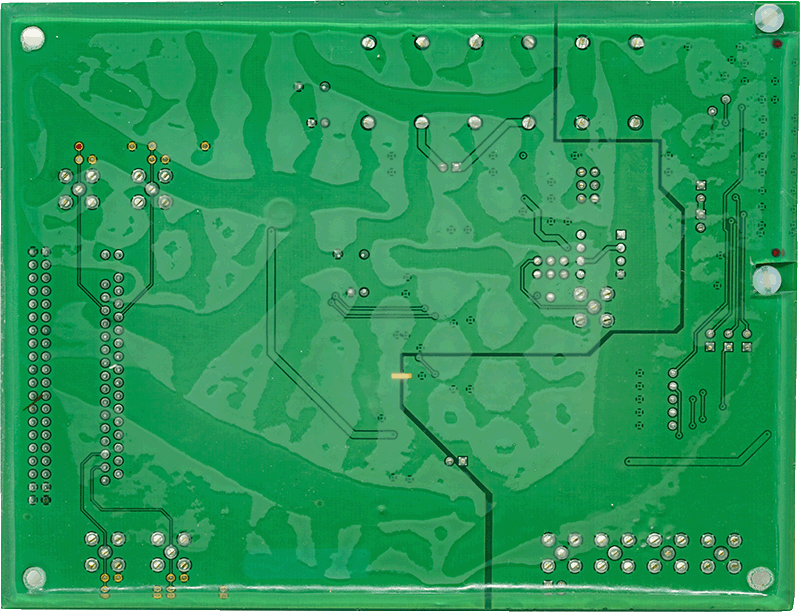

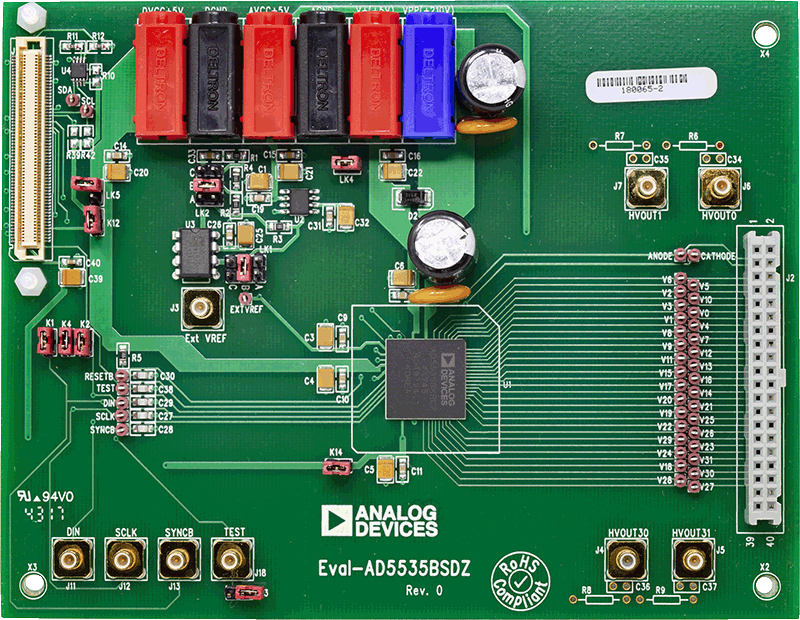

EVAL-AD5535B
AD5535B Evaluation Board
Product Detail
Resources
Evaluation Kits1
Tools & Simulations 2
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
