AD5532: 32-Channel, 14-Bit Voltage-Output DAC Data Sheet (Rev. C)5/19/2000736 kB
Features and Benefits
- High integration: 32-channel DAC in 12 mm × 12 mm CSPBGA
- Adjustable voltage output range
- Guaranteed monotonic
- Output impedance:
0.5 Ω (AD5532-1, AD5532-2)
500 Ω (AD5532-3)
1 kΩ (AD5532-5)
- Output voltage span:
10 V (AD5532-1, AD5532-3, AD5532-5)
20 V (AD5532-2)
- Readback capability
- DSP/microcontroller compatible serial interface
- Infinite sample-and-hold capability to ±0.018% accuracy
- Temperature range −40°C to +85°C
The AD5532 is a 32-channel, 14-bit voltage-output DAC with an additional infinite sample-and-hold mode. The selected DAC register is written to via the 3-wire serial interface; VOUT for this DAC is then updated to reflect the new contents of the DAC register. DAC selection is accomplished via Address Bits A0–A4. The output voltage range is determined by the offset voltage at the OFFS_IN pin and the gain of the output amplifier. It is restricted to a range from VSS + 2 V to VDD – 2 V because of the headroom of the output amplifier.
The device is operated with AVCC = 5 V ± 5%; DVCC = 2.7 V to 5.25 V; VSS = −4.75 V to −16.5 V; and VDD = 8 V to 16.5 V. The AD5532 requires a stable 3 V reference on REF_IN as well as an offset voltage on OFFS_IN.
- 32-channel, 14-bit DAC in one package, guaranteed monotonic.

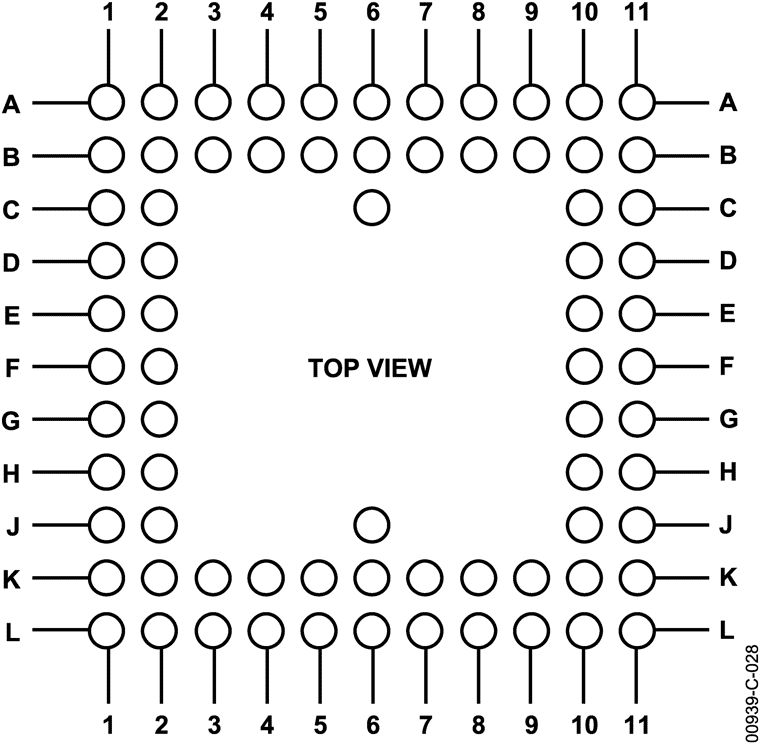

- Available in a 74-lead CSPBGA package with a body size of 12 mm ×12 mm.
- Droopless/infinite sample-and-hold mode.
- Automatic test equipment
- Optical networks
- Level setting
- Industrial control systems
- Data acquisition
- Low cost I/O
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
The evaluation board allows the functionality and performance of the AD5532 to be easily evaluated. The eval board connects to a PC via the printer port. Software is provided to allow the user to program the registers of the AD5532.
Documentation & Resources
Extending the denseDAC™ Multichannel D/As3/8/20081100 kB
Getting 14-Bit Performance from a 32-Channel 14-Bit String DAC2/1/2003 Analog Dialogue
Tools & Simulations
Precision DAC Error Budget Tool
The Precision DAC Error Budget Tool is a web application that calculates the DC Accuracy of precision DAC signal chains. It shows how the static errors accumulate throughout your signal chain to quickly evaluate the design tradeoffs. Calculations include the DC errors introduced by Voltage References, Operation Amplifiers and Precision DACs.
