Features
- 2.5 V to 5.5 V supply operation
- True 12-bit accuracy
- 5 V operation @ < 1 µA
- Fast 3-wire serial input
- Fast 5 µs settling time
- 1.9 MHz, 4-quadrant multiply BW
- Upgrade for DAC8043 and DAC8043A
- Standard and rotated pinout
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The AD5441 is an improved high accuracy 12-bit multiplying digital-to-analog converter (DAC) in space-saving 8-lead packages. Featuring serial input, double buffering, and excellent analog performance, the AD5441 is ideal for applications where PC board space is at a premium. Improved linearity and gain error performance permit reduced part counts through the elimination of trimming components. Separate input clock and load DAC control lines allow full user control of data loading and analog output.
The circuit consists of a 12-bit serial-in/parallel-out shift register, a 12-bit DAC register, a 12-bit CMOS DAC, and control logic. Serial data is clocked into the input register on the rising edge of the clock pulse. When the new data-word is clocked in, it is loaded into the DAC register with the LD input pin. Data in the DAC register is converted to an output current by the DAC.
Consuming only 1 μA from a single 5 V power supply, the AD5441 is the ideal low power, small size, high performance solution to many application problems.

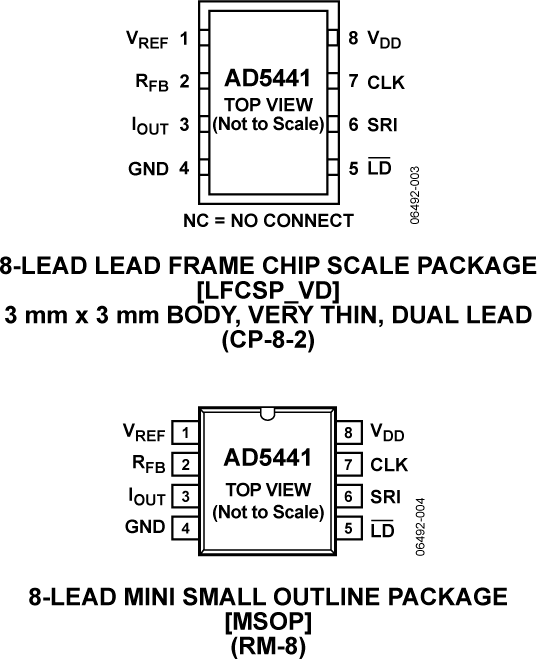

The AD5441 is specified over the extended industrial (−40°C to +125°C) temperature range. It is available in an 8-lead LFCSP and an 8-lead MSOP.
Applications
- Ideal for PLC applications in industrial control
- Programmable amplifiers and attenuators
- Digitally controlled calibration and filters
- Motion control systems
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
AD5441
Documentation
Filters
1 Applied
-
All
-
Data Sheet
-
All
-
English
-
Japanese
Documentation
Solutions Bulletin & Brochure 2
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| AD5441BRMZ |
8-Lead MSOP
|
|
|
| AD5441BRMZ-REEL7 |
8-Lead MSOP
|
|
- AD5441BRMZ
- Pin/Package Drawing
-
8-Lead MSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD5441BRMZ-REEL7
- Pin/Package Drawing
-
8-Lead MSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Jan 5, 2015
- 14_0246
Qualification of ASE Chungli, as an Alternate Assembly Site for Select MSOP Devices
AD5441BRMZ
PRODUCTION
AD5441BRMZ-REEL7
PRODUCTION
May 15, 2012
- 10_0006
Halogen Free Material Change for mini SOIC Products
AD5441BRMZ
PRODUCTION
AD5441BRMZ-REEL7
PRODUCTION
Nov 16, 2009
- 06_0157
Qualification of the 8" H6 Thin Film BiPolar Wafer Fab Process at Analog Devices, Limerick, Ireland
AD5441BRMZ
PRODUCTION
AD5441BRMZ-REEL7
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Jan 5, 2015
- 14_0246
Qualification of ASE Chungli, as an Alternate Assembly Site for Select MSOP Devices
AD5441BRMZ
PRODUCTION
AD5441BRMZ-REEL7
PRODUCTION
May 15, 2012
- 10_0006
Halogen Free Material Change for mini SOIC Products
AD5441BRMZ
PRODUCTION
AD5441BRMZ-REEL7
PRODUCTION
Nov 16, 2009
- 06_0157
Qualification of the 8" H6 Thin Film BiPolar Wafer Fab Process at Analog Devices, Limerick, Ireland
AD5441BRMZ
PRODUCTION
AD5441BRMZ-REEL7
PRODUCTION
Tools & Simulations 1
Precision DAC Error Budget Tool
