AD534S

Aerospace Internally Trimmed Precision IC Multiplier

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 2
1ku List Price
price unavailable

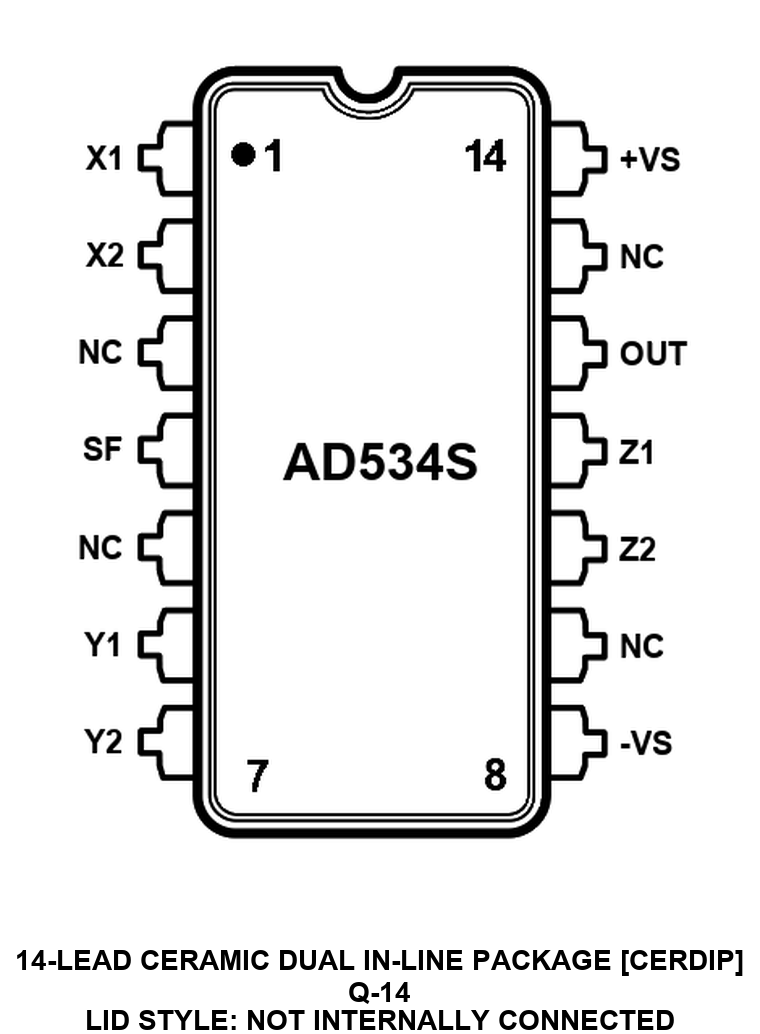

Features
  • All Inputs (X, Y and Z) Differential
    High Impedance for [(X1 - X2) (Y1 - Y2)/10 V] + Z2
    Transfer Function
  • Scale-Factor Adjustable to Provide up to X100 Gain
  • Low Noise Design: 90 µV rms typical, 10 Hz-10 kHz
  • Excellent Long Term Stability
Additional Details
show more Icon
The AD534 is a monolithic laser trimmed four-quadrant multiplier divider having accuracy specifications previously found only in expensive hybrid or modular products. Excellent supply rejection, low temperature coefficients and long term stability of the on-chip thin film resistors and buried Zener reference preserve accuracy even under adverse conditions of use. It is the first multiplier to offer fully differential, high impedance operation on all inputs, including the Z-input, a feature which greatly increases its flex-NC ibility and ease of use. The scale factor is pretrimmed to the standard value of 10.00 V; by means of an external resistor, this can be reduced to values as low as 3 V.
Part Models 2
1ku List Price
price unavailable

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
5962-9053701VCA
  • HTML
  • HTML
AD5340000C
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 30, 2018

- 16_0026

Qualify TeamQuest Technology, Inc. for Burn-in and Life Test of Military and Aerospace Devices

Nov 18, 2015

- 15_0219

Laser Marking Standardization for Aerospace Packages

Oct 2, 2013

- 13_0163

Qualify TSSI Cavite, Phils for Burn-in and Life Test of MIL-PRF-38535 QMLV Aerospace Devices

Nov 7, 2012

- 12_0199

Qualification of New Conductive Silver-Filled Glass Die Attach Adhesive for Cerdip and Ceramic Flatpack (Cerpack) Packages.

Nov 9, 2011

- 11_0050

Transfer of ADI Hermetics Assembly location from Paranaque, Manila to General Trias, Cavite Philippines

Nov 9, 2011

- 11_0182

Test Site Transfer from Analog Devices Philippines Inc in Paranaque to Analog Devices General Trias in Cavite, Philippines

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 30, 2018

- 16_0026

arrow down

Qualify TeamQuest Technology, Inc. for Burn-in and Life Test of Military and Aerospace Devices

Nov 18, 2015

- 15_0219

arrow down

Laser Marking Standardization for Aerospace Packages

Oct 2, 2013

- 13_0163

arrow down

Qualify TSSI Cavite, Phils for Burn-in and Life Test of MIL-PRF-38535 QMLV Aerospace Devices

Nov 7, 2012

- 12_0199

arrow down

Qualification of New Conductive Silver-Filled Glass Die Attach Adhesive for Cerdip and Ceramic Flatpack (Cerpack) Packages.

Nov 9, 2011

- 11_0050

arrow down

Transfer of ADI Hermetics Assembly location from Paranaque, Manila to General Trias, Cavite Philippines

Nov 9, 2011

- 11_0182

arrow down

Test Site Transfer from Analog Devices Philippines Inc in Paranaque to Analog Devices General Trias in Cavite, Philippines
