AD5339
2.5 V to 5.5 V, 250 µA, 2-Wire Interface, Dual Voltage Output,12-Bit DACs
Show More
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support PageFeatures
- AD5337: 2 buffered 8-bit DACs in 8-lead MSOP
- AD5338, AD5338-1: 2 buffered 10-bit DACs in 8-lead MSOP
- AD5339: 2 buffered 12-bit DACs in 8-lead MSOP
- Low power operation: 250 μA @ 3 V, 300 μA @ 5 V
- 2-wire (I2C-compatible) serial interface
- 2.5 V to 5.5 V power supply
- Guaranteed monotonic by design over all codes
- See datasheet for additional features
The AD5337 / AD5338 / AD5339 are dual 8-, 10-, and 12-bit buffered voltage output DACs, respectively. Each part is housed in an 8-lead MSOP package and operates from a single 2.5 V to 5.5 V supply, consuming 250 μA at 3 V. On-chip output amplifiers allow rail-to-rail output swing with a slew rate of 0.7 V/μs. A 2-wire serial interface operates at clock rates up to 400 kHz. This interface is SMBus compatible at VDD < 3.6 V. Multiple devices can be placed on the same bus.
The references for the two DACs are derived from one reference pin. The outputs of all DACs can be updated simultaneously using the software LDAC function. The parts incorporate a power-on reset circuit to ensure that the DAC outputs power up to 0 V and remain there until a valid write to the device takes place. A software clear function resets all input and DAC registers to 0 V. A power-down feature reduces the current consumption of the devices to 200 nA @ 5 V (80 nA @ 3 V).
The low power consumption of these parts in normal operation makes them ideally suited to portable battery-operated equipment. The power consumption is typically 1.5 mW at 5 V and 0.75 mW at 3 V, reducing to 1 μW in power-down mode.
APPLICATIONS
- Portable battery-powered instruments
- Digital gain and offset adjustment
- Programmable voltage and current sources
- Programmable attenuators
- Industrial process control
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
- {{newProjectText}} {{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
AD5339
Documentation
Filters
1 Applied
Data Sheet
2
User Guide
1
Documentation
Solutions Bulletin & Brochure 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
---|---|---|---|
AD5339ARMZ | 8-Lead MSOP |
|
|
AD5339ARMZ-REEL7 | 8-Lead MSOP |
|
|
AD5339BRMZ | 8-Lead MSOP |
|
|
AD5339BRMZ-REEL7 | 8-Lead MSOP |
|
- AD5339ARMZ
- Pin/Package Drawing
- 8-Lead MSOP
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- AD5339ARMZ-REEL7
- Pin/Package Drawing
- 8-Lead MSOP
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- AD5339BRMZ
- Pin/Package Drawing
- 8-Lead MSOP
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- AD5339BRMZ-REEL7
- Pin/Package Drawing
- 8-Lead MSOP
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Mar 22, 2021
- 21_0001
Addition of Amkor Philippines as an Alternate Site for Singulated MSOP and MSOP_EP
AD5339ARMZ
PRODUCTION
AD5339ARMZ-REEL7
PRODUCTION
AD5339BRMZ
PRODUCTION
AD5339BRMZ-REEL7
PRODUCTION
Jan 5, 2015
- 14_0246
Qualification of ASE Chungli, as an Alternate Assembly Site for Select MSOP Devices
AD5339ARMZ
PRODUCTION
AD5339ARMZ-REEL7
PRODUCTION
May 15, 2012
- 10_0006
Halogen Free Material Change for mini SOIC Products
AD5339ARMZ
PRODUCTION
AD5339ARMZ-REEL7
PRODUCTION
AD5339BRMZ
PRODUCTION
AD5339BRMZ-REEL7
PRODUCTION
Feb 8, 2010
- 04_0080
Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.
AD5339ARMZ
PRODUCTION
AD5339ARMZ-REEL7
PRODUCTION
AD5339BRMZ
PRODUCTION
AD5339BRMZ-REEL7
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Mar 22, 2021
- 21_0001
Addition of Amkor Philippines as an Alternate Site for Singulated MSOP and MSOP_EP
AD5339ARMZ
PRODUCTION
AD5339ARMZ-REEL7
PRODUCTION
AD5339BRMZ
PRODUCTION
AD5339BRMZ-REEL7
PRODUCTION
Jan 5, 2015
- 14_0246
Qualification of ASE Chungli, as an Alternate Assembly Site for Select MSOP Devices
AD5339ARMZ
PRODUCTION
AD5339ARMZ-REEL7
PRODUCTION
May 15, 2012
- 10_0006
Halogen Free Material Change for mini SOIC Products
AD5339ARMZ
PRODUCTION
AD5339ARMZ-REEL7
PRODUCTION
AD5339BRMZ
PRODUCTION
AD5339BRMZ-REEL7
PRODUCTION
Feb 8, 2010
- 04_0080
Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.
AD5339ARMZ
PRODUCTION
AD5339ARMZ-REEL7
PRODUCTION
AD5339BRMZ
PRODUCTION
AD5339BRMZ-REEL7
PRODUCTION
Evaluation Kits 1

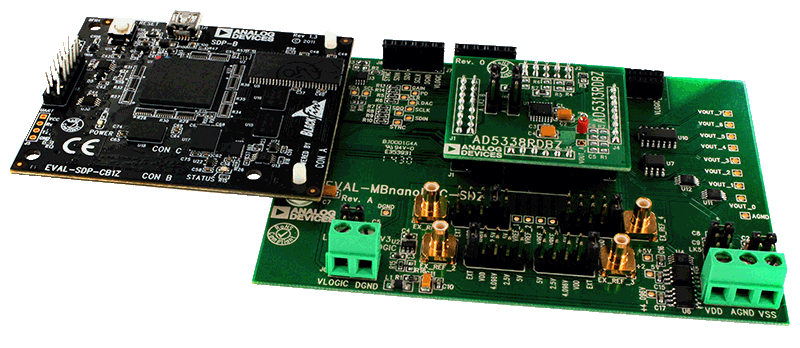

EVAL-AD5339
AD5339 Evaluation Board
Product Detail
The EVAL-AD5339DBZ is designed to quickly prototype AD5339 circuits and reduce design time. The EVAL-AD5339DBZ evaluation board interfaces with the USB port of a PC via the SDP-B controller board. Software can be downloaded which allows users to program the AD5339.
This evaluation board requires the SDP-B controller board.
Full specifications for the AD5339 are listed in the AD5339 data sheet available from Analog Devices, Inc., and should be consulted in conjunction with UG-980 when using the evaluation board.
