MAXM17572

RECOMMENDED FOR NEW DESIGNS

4.5V to 60V, 1A Himalaya uSLIC Step-Down Power Module

Data Sheet (Rev. 0) Product Selection Table

Part Models: 2
1ku List Price: Starting From $3.98

Viewing:

Overview

Easy to use
- Wide 4.5V to 60V Input
- Adjustable 0.9V to 12V Output
- ±1.2% Feedback Accuracy
- Up to 1A Output Current
- Internally Control Loop Compensated
- All Ceramic Capacitors
Flexible Design
- PWM Mode of Operation
- Adjustable Frequency with External Frequency Synchronization (400kHz to 2.2MHz)
- Programmable Soft-Start
- Open-Drain Power Good Output (RESET Pin)
- Programmable EN/UVLO threshold
- Auxiliary Bootstrap Supply (EXTV_CC) for Improved Efficiency

Robust Operation
- Over Temperature Protection
- Hiccup Over Current Protection
- High Industrial Ambient Operating Temperature Range (-40°C to +125°C)/Junction Temperature Range (-40°C to +150°C)
Rugged
- Complies with CISPR32 (EN55032) Class B Conducted and Radiated Emissions.

The Himalaya series of voltage regulator ICs, power modules, and chargers enable cooler, smaller, and simpler power-supply solutions. The MAXM17572 is a high-efficiency, synchronous, Himalaya step-down DC-DC power module with integrated controller, MOSFETs, compensation components, and inductor that operates over a wide input-voltage range. The module operates from 4.5V to 60V input and delivers up to 1A output current over a programmable output voltage range of 0.9V to 12V. The module significantly reduces design complexity and manufacturing risks, and offers a true “plug-and-play” power supply solution, reducing the time-to-market. The MAXM17572 employs peak-current-mode control architecture.

The MAXM17572 offers programmable switching frequency, RESET output voltage monitoring, adjustable input undervoltage lockout, and programmable soft-start. The module also features hiccup-mode overload protection and a thermal shutdown function.

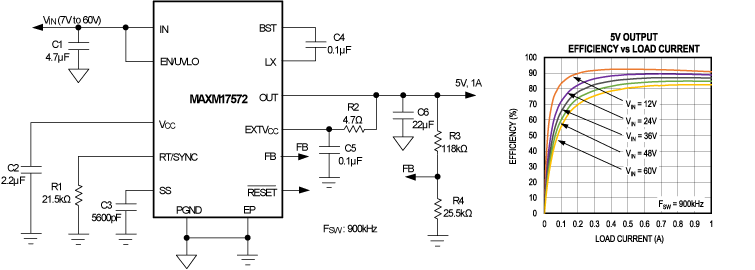

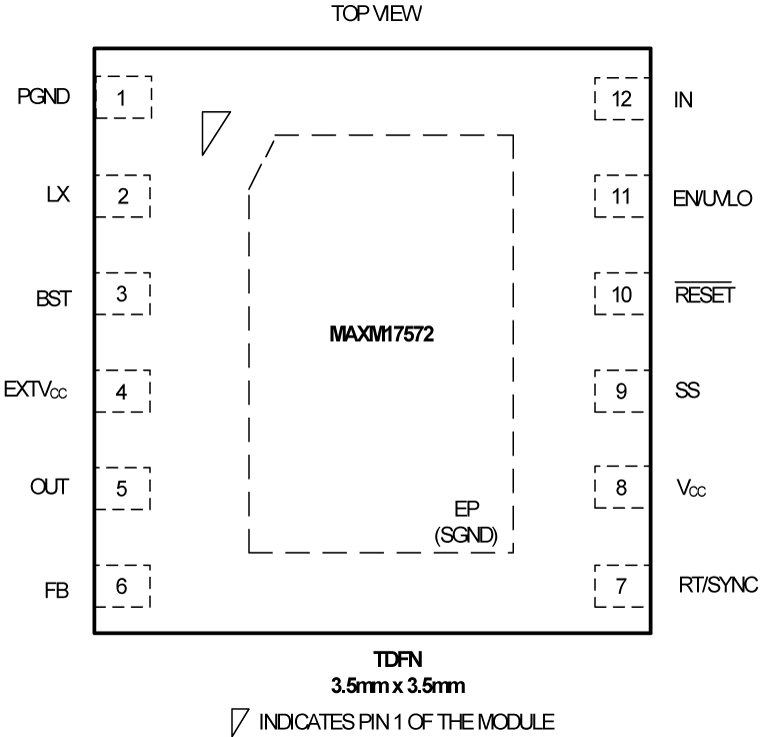

The MAXM17572 is available in a low-profile, compact, 12-pin 3.5mm x 3.5mm x 2.3mm uSLIC package. Simulation models are available.

APPLICATIONS

Industrial Power Supplies
Distributed Supply Regulation
FPGA and DSP Point-of-Load Regulator
Base Station Point-of-Load Regulator
HVAC and Building Control

Part Models: 2
1ku List Price: Starting From $3.98

Documentation

Data Sheet 1

MAXM17572: 4.5V to 60V, 1A Himalaya uSLIC Step-Down Power Module Data Sheet (Rev.0) 03/29/2023

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAXM17572AMC+	12-CSP_BGA_EM-3.5X3.5X2.3	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAXM17572AMC+T	12-CSP_BGA_EM-3.5X3.5X2.3	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

EE-Sim Power® Tools 1

The EE-Sim DC-DC Converter Tool uses your requirements to quickly create a complete power design including a schematic, BOM with commercially available parts, and time and frequency domain simulations. Your customized schematic can be downloaded for further analysis in the standalone EE-Sim OASIS Simulator, featuring SIMPLIS and SIMetrix SPICE engines.

Start EE-Sim Now

SIMPLIS Models 1

MAXM17572 SIMPLIS Schematic

Evaluation Kits

Evaluation Kit for MAXM17572 in 5V Output Application

Buy Now View Details

Features and Benefits

Wide 7.0V to 60V Input Range
Programmed 5V output, up to 1A Output Current
High 89.4% Efficiency (V_IN = 24V, V_OUT = 5V at 0.7A)
900kHz Switching Frequency
Enable/UVLO Input, Resistor-Programmable UVLO Threshold
Programmed 1ms Soft-Start Time

PWM Mode of Operation
Open-Drain RESET Output
External Frequency Synchronization
Overcurrent and Overtemperature Protection
Low-Profile, Surface-Mount Components
Proven PCB Layout
Fully Assembled and Tested
Complies with CISPR32 (EN55032) Class B Conducted and Radiated Emissions

Product Details

The MAXM17572 5V output evaluation kit (EV kit) provides a proven design to evaluate the MAXM17572 high-voltage, high-efficiency, synchronous step-down DC-DC power module. The EV kit is programmed for 5V output and delivers load currents up to 1A. The programmed switching frequency is 900kHz for optimum efficiency and component size. The EV kit features an adjustable input under-voltage lockout, adjustable softstart, open-drain RESET signal, and external frequency synchronization. The MAXM17572 module data sheet provides a complete description, features, benefits, and parameters of the part that should be read in conjunction with this EV kit data sheet prior to operating the EV kit.
