MAX22515

IO-Link Transceiver with Integrated Protection

Show More showmore-icon

Saves Board Space while Providing Low Power Dissipation

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.7)
Documentation View All Documentation
IBIS Model MAX22515 IBIS Model Download 2.38MB
Part Models 4
1ku List Price Starting From $1.81
Features
  • High Configurability and Integration Reduces SKU
    • Operates from 8V to 36V
    • Auxiliary Digital Input (DI)
    • I2C or Pin Mode Control
    • Selectable C/Q Driver Current: 50mA to 250mA
    • Selectable C/Q Driver Slew Rate (I2C Mode)
    • Integrated Oscillator for IO-Link Communication
    • IO-Link Wake-Up Detection and Wake-Up Generation
    • Integrated Linear Regulators: 3.3V and 5V
    • Compatible Register Set to MAX22513
    • Able to Communicate at COM1, COM2, and COM3 Data Rates
  • Integrated Protection Enables Robust Systems
    • ±1.2kV/500Ω Surge Protection on V24, C/Q, DI, and GND
    • Reverse Polarity Protection on V24, C/Q, DI,and GND
    • Hot-Plug Protection on Supply Input (V24)
    • Glitch Filters for Improved Burst Resilience
    • Selectable Driver Overcurrent Configuration
    • -40°C to +125°C Operating Temperature Range
    • Fast Demagnetization of Inductive Loads
  • Optimized for Small Designs
    • Low Power Dissipation: 2Ω (typ) C/Q Driver On-Resistance
    • 1.3mA (typ) Supply Current
    • Available in Two Tiny Packages:
      • 20-Bump WLP (2.5mm x 2.0mm)
      • 24-Pin TQFN-EP (4mm x 4mm)
Additional Details
show more Icon

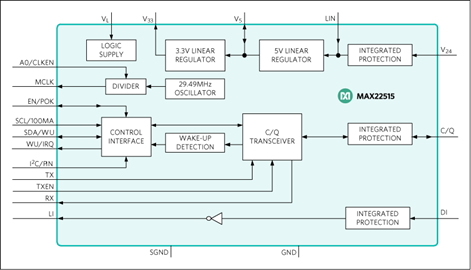

The MAX22515 low-power industrial transceiver can operate as either an IO-Link device or an IO-Link master transceiver in industrial applications. The MAX22515 features a selectable control interface (pin mode or I2C), two integrated linear regulators, and integrated surge protection for robust communication. The transceiver includes one C/Q input-output channel and one digital input (DI) channel.

The device features a flexible control interface. Pin-control logic inputs allow for operation with switching sensors that do not use a microcontroller. For sensors that use a microcontroller, an I2C interface is available providing extensive configuration and diagnostics. Additionally, an integrated oscillator simplifies the clock generation for IO-Link devices.

The MAX22515 features extensive integrated protection to ensure robust communication in harsh industrial environments. All IO-Link line interface pins (V24, C/Q, DI, and GND) are reverse voltage protected, short-circuit protected, hot-plug protected, and feature integrated ±1.2kV/500Ω surge protection.

The MAX22515 is available in a tiny WLP package (2.5mm x 2.0mm) or a 24-pin TQFN-EP package (4mm x 4mm) and operates over the -40°C to +125°C temperature range.

Applications

  • IO-Link Sensor and Actuator Devices
  • Industrial Sensors
  • IO-Link Masters
Show More Arrow image
file View Data Sheet (Rev.7)
Documentation View All Documentation
IBIS Model MAX22515 IBIS Model Download 2.38MB
Part Models 4
1ku List Price Starting From $1.81
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

MAX22515

Documentation

2
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • Technical Articles
  • All
    TickIcon
  • English
resetfilter

Reset Filters

Data Sheet

1

PDF Vector

PDF

UPDATED 11/11/2021
English

MAX22515: IO-Link Transceiver with Integrated Protection Data Sheet (Rev.7)

Open PDF File

redirect
659.00K
download

Download PDF

Technical Articles

1

PDF Vector

HTML

UPDATED 04/02/2021
English
Configuring an IO-Link Device Transceiver for Use in an IO-Link Master redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Solutions Bulletin & Brochure 1

IO-Link Handbook

Webcast 2

Designing Industrial Connectivity Solutions for The Smart Factory
Design Considerations for IO-Link Industrial Smart Factory Sensors & Actuator

Video

1

Thumbnail Image

Video

2022-10-04

03:58

Introduction to the MAX22515 IO-Link Transceiver with Integrated Protection

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX22515ATG+ 24-TQFN-4X4X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX22515ATG+T 24-TQFN-4X4X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX22515AWP+ 20-WLCSP-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX22515AWP+T 20-WLCSP-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Software & Part Ecosystem

Evaluation Kits 1

MAX22515EVKIT

Evaluation Kit for the MAX22515

zoom

MAX22515EVKIT

Evaluation Kit for the MAX22515

download icon

Download

 print icon

Print
MAX22515EVKIT
Evaluation Kit for the MAX22515

Features and Benefits

  • IO-Link-Compliant Device Transceiver
  • I/O and I2C Interface Terminals
  • Arduino® Compatible Connector
  • Windows 10-Compatible Software
  • USB-PC Connection
  • Proven PCB Layout
  • Fully Assembled and Tested
Buy Now View Details

Product Detail

The MAX22515 evaluation kit (EV kit) consists of the evaluation board and software. The EV kit is a fully assembled and tested circuit board that evaluates the MAX22515 IO-Link® dual-channel device transceiver.

The EV kit includes Windows®-compatible software that provides a graphical user interface (GUI) for exercising the features of the MAX22515. The EV kit is connected to a PC through a USB-A-to-micro-B cable.

Applications

  • Industrial Sensors
  • IO-Link Masters
  • IO-Link Sensor and Actuator Devices
