MAX17332

AccuCharge + ModelGauge m5 EZ 1-Cell Charger, Fuel Gauge, and Protector

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.1)
Documentation View All Documentation
Part Models 2
1ku List Price Starting From $2.71
Features
  • Non-Volatile Programmable Stand-Alone Charger
    • 1% Charge Current, 256 Current Settings
    • 0.25% Charge Voltage, 2.42V to 4.8V, Configurable
    • Optional Manual Charge Control
    • FET Temperature Limit and Heat Regulation
    • Prequal, SmartFull, and Step-Charging Options
    • JEITA—9 Temperature Regions
  • Battery Health + Programmable Safety/Protection
    • Overvoltage/Overcharge Current
    • Temperature Region Dependent
    • Overcharge/Discharge/Short-Circuit Current
    • Over/Under Temperature
    • Zero-Volt or >1.8V Charging Option
    • Undervoltage + SmartEmpty
  • Pushbutton Wakeup/Factory Ship Mode (0.5μA)
  • ModelGauge m5 EZ Algorithm
    • Percent, Capacity,Time-to-Empty/Full, Age
    • Cycle+™ Age Forecast + Age-Scheduled Charging
  • Dynamic Power—Estimates Power Capability
  • SHA-256 Authentication to Prevent Cloning
  • Precision Measurement Without Calibration
    • Current, Voltage, Power, Time, Cycles
    • Die Temperature and two Thermistors
  • History Logging, User Data
  • Low Quiescent Current
    • FETs Enabled: 35μA Active, 21μA Hibernate
    • FETs Disabled: 8μA Ship, 0.5μA Shutdown
  • 2-Wire (I2C) and 1-Wire®
  • 1.9 mm x 2.5 mm 15-Bump 0.5mm Pitch Wafer-Level Package (WLP)
Additional Details
show more Icon

The MAX17332 is a 35μA IQ stand-alone charger, fuel gauge, protector, and battery internal self-discharge detection IC for 1-cell lithium-ion/polymer batteries. When a voltage source is present, the IC regulates charging by modulating the charge N-FET, using AccuCharge™charger technology. The IC regulates charge voltage, current, and FET temperature. Stand-alone charging is supported by flexible configuration in nonvolatile memory. The IC supports the following applications:

  • Low-Power Charging
    • 1mA to 500mA directly from universal 5V USB
    • No USB identification/coordination needed

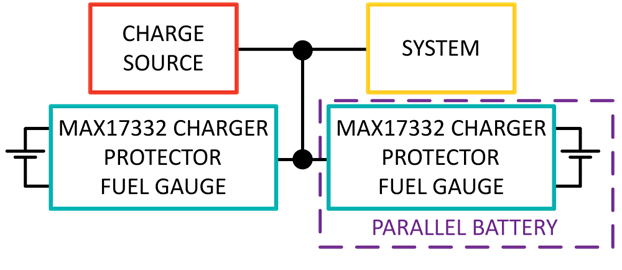

  • High-Power Parallel Packs (>1000mA)
    • Independently charges parallel packs
    • Prevents cross-charging for parallel batteries
    • Coordinates external DC-DC with alerts
    • Minimizes dropout and heat
  • Protection and Charging Control—pack or host side

The IC ideal diode circuit supports a quick response to system transients and adapter removal with low voltage drop across the CHG FET.

The IC uses the ModelGauge™ m5 EZ algorithm that combines the short-term accuracy and linearity of a coulomb counter with the long-term stability of a voltage-based fuel gauge to provide industry-leading accuracy. The IC automatically compensates for cell aging, temperature, and discharge rate while providing accurate state-of-charge (SOC) in milliampere-hours (mAh) or percentage (%) over a wide range of operating conditions.

The IC monitors the voltage, current, temperature, and state of the battery to provide protection against over/undervoltage, overcurrent, short-circuit, over/undertemperature and overcharge conditions, and internal self-discharge protection using external high-side N-FETs to ensure that the lithium-ion/polymer battery operates under safe conditions which prolongs the life of the battery.

APPLICATIONS

  • USB PPS and Direct Charging
  • Smart Batteries and Hybrid Supercap Batteries
  • Dual Screen Smartphones, Tablets
  • Hearables, Wearables, Smartwatches
  • Medical Devices, Health, Fitness Monitors
  • Handheld Radios, Computers, Accessories
  • Home/Building Automation, Sensors, Cameras
  • Parallel Battery AR/VR Systems
Show More Arrow image
file View Data Sheet (Rev.1)
Documentation View All Documentation
Part Models 2
1ku List Price Starting From $2.71
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

MAX17332

Documentation

7
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • Technical Articles
  • All
    TickIcon
  • English
  • Japanese
  • Chinese
resetfilter

Reset Filters

Data Sheet

1

PDF Vector

PDF

UPDATED 03/07/2023
English

MAX17332: AccuCharge + ModelGauge m5 EZ 1-Cell Charger, Fuel Gauge, and Protector Data Sheet (Rev.1)

Open PDF File

redirect
3.89 M
download

Download PDF

Technical Articles

6

PDF Vector

HTML

UPDATED 04/02/2024
English
Open-Ear Audio: Enhanced, High Quality Solutions for AR/VR Applications redirect icon

PDF Vector

HTML

UPDATED 04/02/2024
Japanese
オープンイヤー・オーディオ：AR/VRアプリケーション向けに拡張された高品質ソリューション redirect icon

PDF Vector

HTML

UPDATED 07/09/2024
English
Enabling Automation in Logistics and Retail - Part 1 redirect icon

PDF Vector

HTML

UPDATED 08/15/2023
English
How Parallel Battery Charging with USB-C Helps to Enhance the Consumer Experience redirect icon

PDF Vector

HTML

UPDATED 08/15/2023
Chinese
利用USB-C实现并联电池充电如何帮助提升用户体验 redirect icon

PDF Vector

HTML

UPDATED 08/15/2023
Japanese
USB Type-Cによる並列バッテリ充電、この手法は消費者に何をもたらすのか？ redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Video

1

Thumbnail Image

Video

2023-04-27

40:31

MAX17332 EVKIT GUI Software Demo

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX17332X22+ 15-WLCSP-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX17332X22+T 15-WLCSP-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Nov 17, 2022

- 2350

DESIGN

MAX17332X22+

PRODUCTION

MAX17332X22+T

PRODUCTION

pdf

pcn_2350

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Nov 17, 2022

- 2350

arrow down

DESIGN

MAX17332X22+

PRODUCTION

MAX17332X22+T

PRODUCTION

pdf

pcn_2350

external-icon

Software & Part Ecosystem

Evaluation Kits 1

reference details image

MAX17332EVKIT

Evaluation Kit for MAX17332

zoom

MAX17332EVKIT

Evaluation Kit for MAX17332

download icon

Download

 print icon

Print

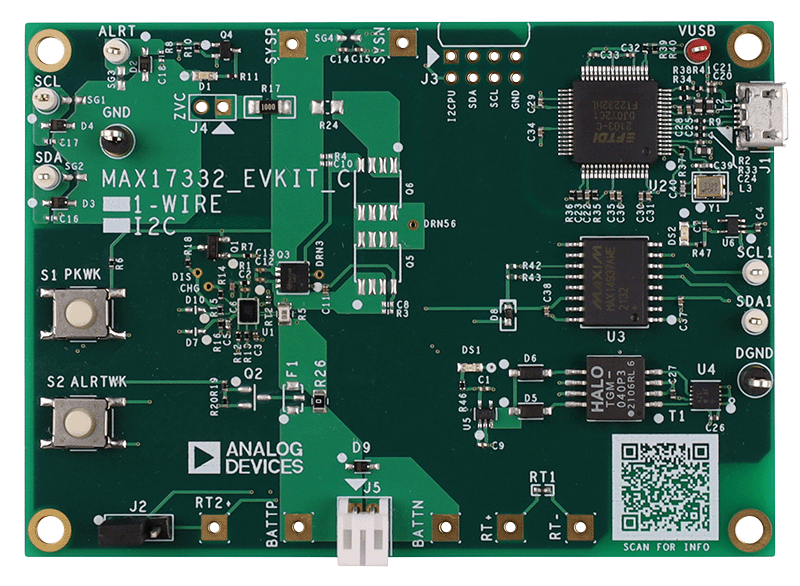

MAX17332EVKIT
Evaluation Kit for MAX17332

Features and Benefits

  • ModelGauge m5 Algorithm
  • Charges, Monitors, and Protects a 1S Battery
  • Full Protection Solution On-Board for Evaluation
  • Battery Voltage (VBATT) Range of +2.16V to +4.9V with Default Hardware
  • Input Voltage up to 5.7V
  • Default Current Range -5A (Discharge) to +2.56A (Charge) with 10mΩ Sense Resistor (Higher Currents can be Supported by Changing to a Smaller Sense Resistor)
  • Two Thermistor Measurements
  • On-Board I2C Communication Interface with Built-In MAXUSB Interface
  • Windows 7 or Newer Compatible Software
  • Proven PCB Layout
  • Fully Assembled and Tested
Buy Now View Details

Product Detail

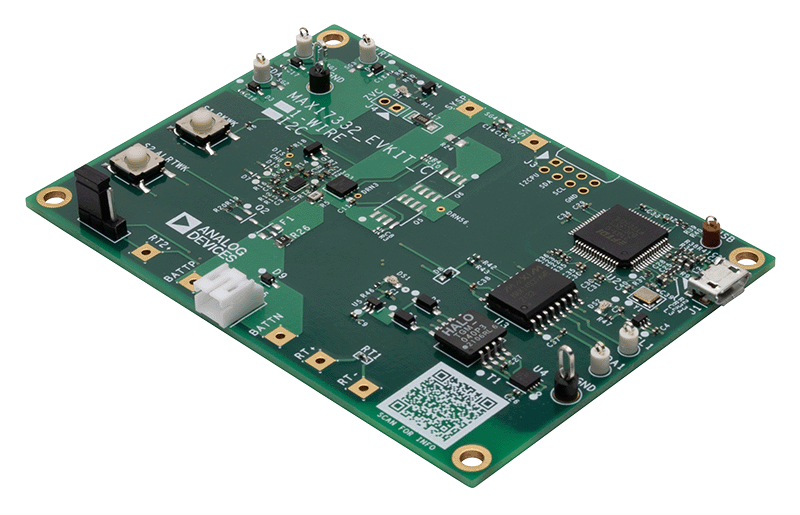

The MAX17332 evaluation kit (EV kit) is a fully assembled and tested surface-mount PCB that evaluates the standalone charger, fuel gauge IC with protector and optional SHA-256 authentication for 1 cell lithium-ion/polymer batteries.

The MAX17332 EV kits include the IC evaluation board with integrated I2C interface and USB micro-B cable. Windows® based graphical user interface (GUI) software is available for use with the EV kit and can be downloaded from MAX17332 product page under the Design Resources tab. Windows 7 or newer Windows operating system is required to use with the EV kit GUI software.
