LTM8060F

RECOMMENDED FOR NEW DESIGNS

Quad 40V_IN, 3A Silent Switcher μModule Regulator with Package-Level EMI Shield

Data Sheet (Rev. A) Product Selection Table

Part Models: 2
1ku List Price: Starting From $22.13

Viewing:

Overview

Package-Level EMI Shielding
Minimize Near-Field Electric Field Noise
Reduce Near-Field Magnetic Field Noise
Pin-to-Pin Compatible with the LTM8060
Four Complete 3A (4A peak) Step-Down SwitchingPower Supplies
Low Noise Silent Switcher Architecture
Compliant with CISPR22 Class B/CISPR25 Class 5
Wide Input Voltage Range: 3V to 40V
Wide Output Voltage Range: 0.8V to 8V

4A Continuous Output Current per Channel at 12V_IN,3.3V_OUT, f_SW = 2MHz, T_A = 60°C
Multiphase or Multi-module Parallelable forIncreased Output Current
Low Thermal Resistance, θ_JA = 8.4°C/W,θ_JCtop = 4.6°C/W, θ_JCbot = 1°C/W
Selectable Switching Frequency: 200kHz to 3MHz

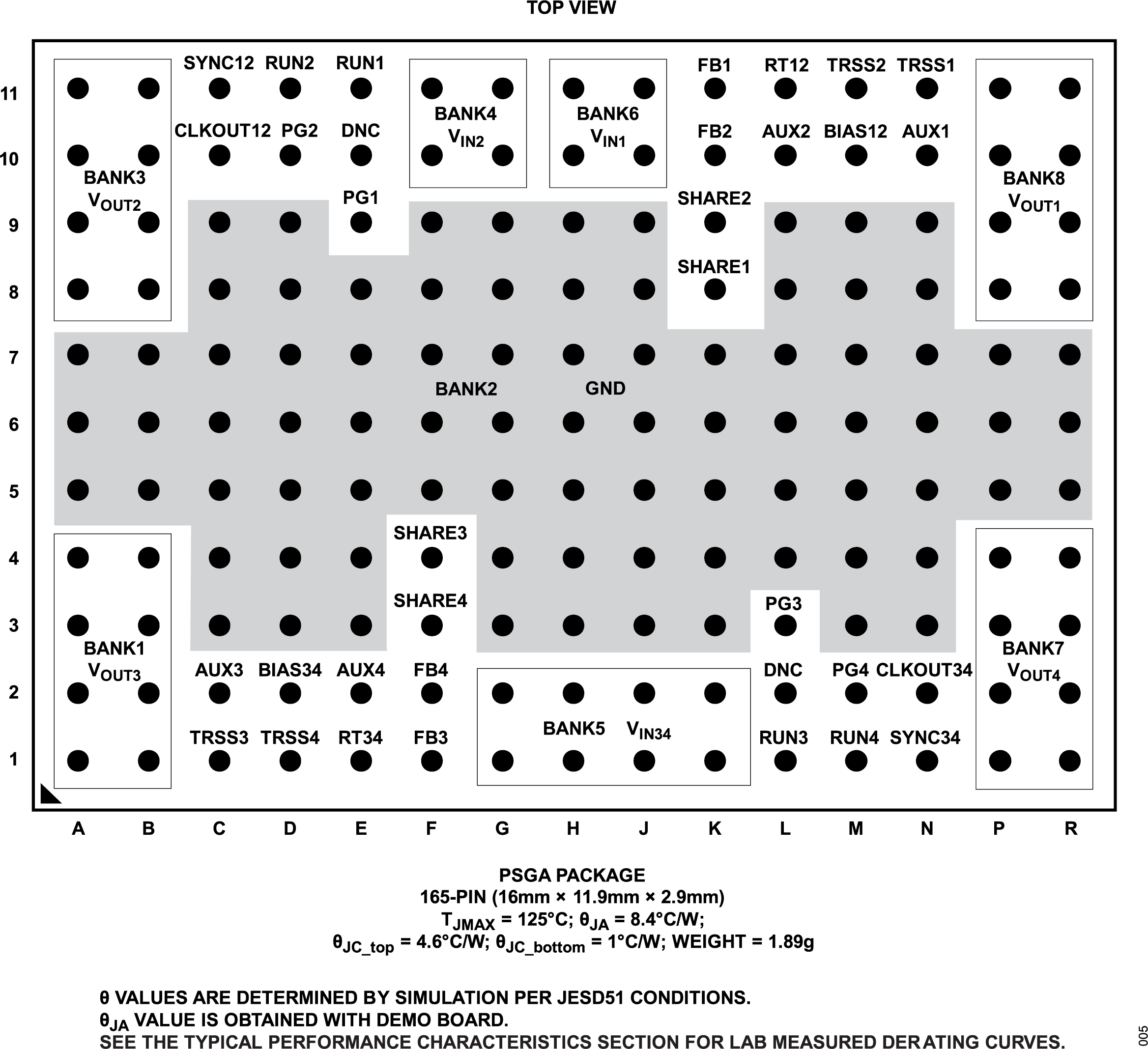

Available in a Compact 165-Pin, 16mm × 11.9mm ×2.9mm, Pre-Soldered Grid Array (PSGA) Package

The LTM8060F is a quad 40VIN, 3A (4A peak) step-down Silent Switcher^® power μModule® (micromodule) regulator with package-level Electromagnetic interference (EMI) shield. The package-level EMI shield enables the Faraday cage to be applied directly to the LTM8060F package, and the EMI shield is electrically connected to the GND pins, providing a compact and effective near-field EMI reduction. The EMI shield eliminates all electric field noise, and a 10dB reduction is achieved on magnetic field noise. The Silent Switcher architecture minimizes EMI while delivering high efficiency.

Included in the package are the controllers, the power switches, the inductors, and the support components. Operating over a wide input voltage range, the LTM8060F supports output voltages from 0.8V to 8V and a switching frequency range of 200kHz to 3MHz, each set by a single resistor. Only the bulk input and the output filter capacitors are needed to finish the design. The LTM8060F outputs can be paralleled in an array for up to 12A (16A peak) capability.

APPLICATIONS

Automated Test Equipment
Industrial Supplies
Medical Equipment

Part Models: 2
1ku List Price: Starting From $22.13

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTM8060FEV#PBF	165-Lead (16mm × 11.9mm × 3.32mm)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTM8060FIV#PBF	165-Lead (16mm × 11.9mm × 3.32mm)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

LTM8060

LTpowerCAD

Design tools for the following parts are available in LTpowerCAD:

LTM8060
LTM8060F

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

LTM8060F: Quad 40VIN, 3A Silent Switcher μModule Regulator with Package-Level EMI Shield

Buy Now View Details

Features and Benefits

Optional Circuitry for Parallel Operation
Input EMI Filter (VEMI)

Product Details

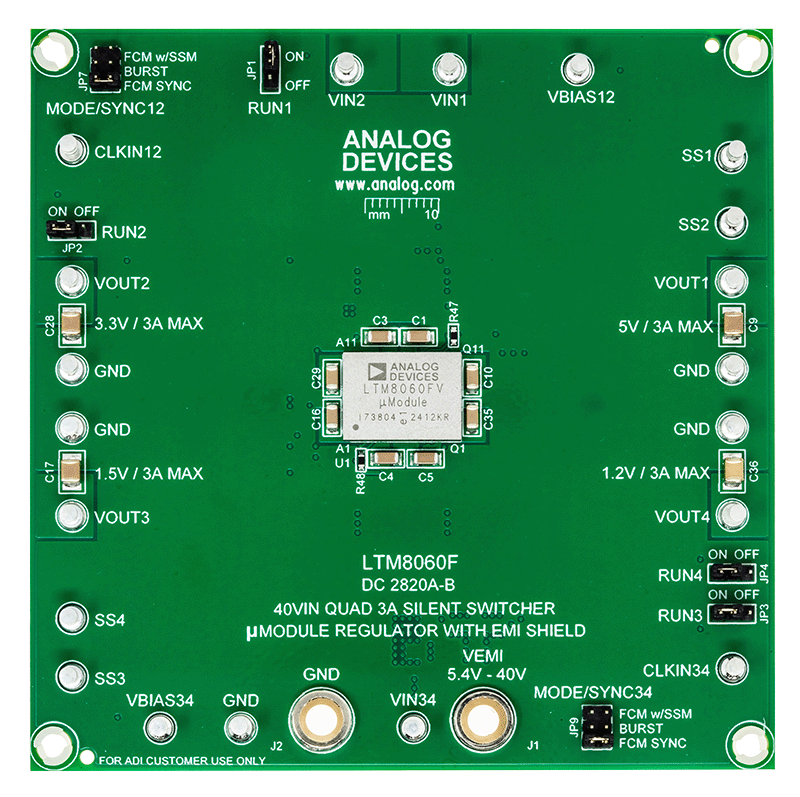

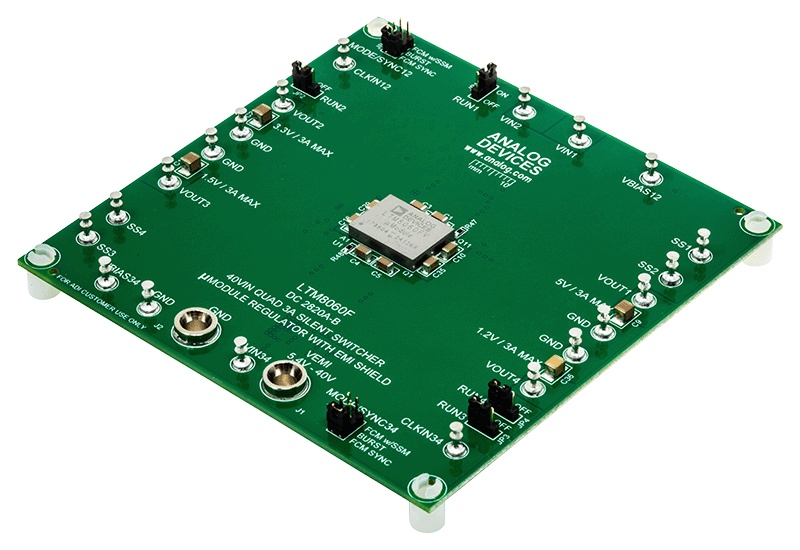

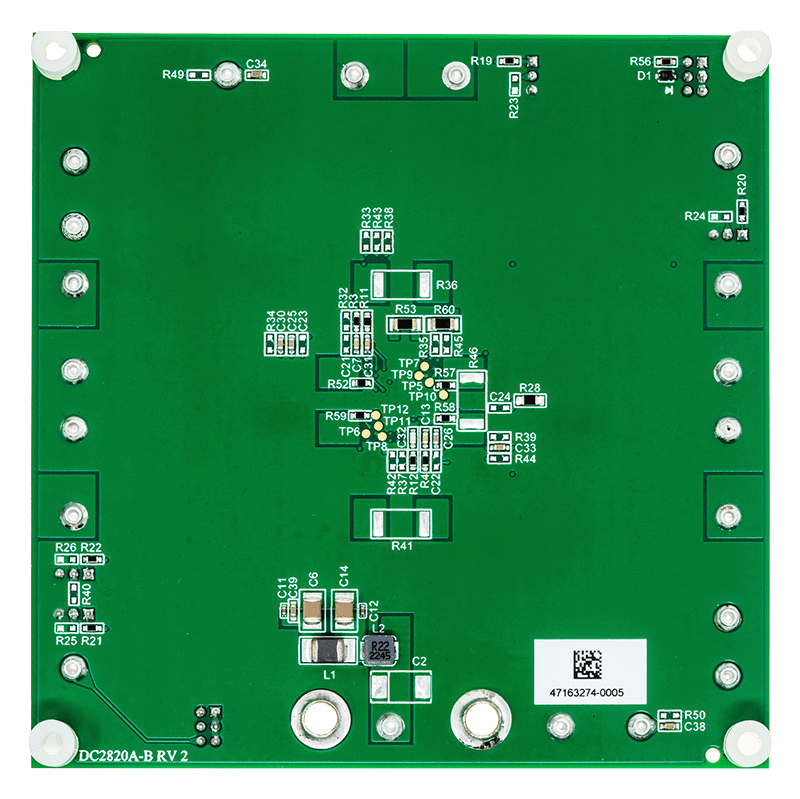

The DC2820A-B evaluation board features the LTM^®8060F, a quad output high-performance step-down Silent Switcher® power μModule^® regulator in a thermally enhanced 16mm × 11.9mm × 2.9mm pre-soldered grid array (PSGA) package with a package-level electromagnetic interference (EMI) shield. The DC2820A-B has a wide operating input voltage range of 5.4V to 40V. The output rails are configured for 5V, 3.3V, 1.5V, and 1.2V. They are resistor programmable from 0.8V to 8V. Each output can provide up to 3A, and phases can also be paralleled together to satisfy higher rail current requirements.

The LTM8060F is a complete multi-output DC-to-DC point-of-load regulator in a compact form factor, requiring only a few input and output capacitors and resistors to set the output voltages and operating frequency. Output voltage tracking is made available by the TRSS pins for supply rail sequencing. External clock synchronization is available through the SYNC pins.

The CLKOUT pins provide for optional synchronization of additional phases. For reduced noise, spread spectrum operation is available through the SYNC pin programming. The LTM8060F data sheet must be read in conjunction with this user guide for working on or modifying the DC2820A-B.

Resources

DC2820A-B User Guide: LTM8060F | Quad 40V, V_IN, 3A Silent Switcher μModule Regulator with Package-Level EMI Shield (Rev.A)
2/14/2025

DC2820A-B Schematic (Rev.2)
1/28/2025

DC2820A-B Design Files (Rev.2)
1/28/2025
