LTM4732

RECOMMENDED FOR NEW DESIGNS

16VIN, 4A Ultralow Noise Silent Switcher 3 μModule Regulator

Data Sheet (Rev. A) Product Selection Table
Viewing:

Overview

  • Complete solution in <1cm2 (single-sided PCB) or 0.5cm2 (dual-sided PCB)
  • Low-noise Silent Switcher®3 architecture
    • Ultralow EMI emissions
    • Ultralow RMS noise (10Hz to 100kHz): 4μVRMS
  • ±1.5% maximum total DC output voltage error over line, load, and temperature
  • Input voltage range: 3V to 16V
  • Output voltage range: 0.3V to 6V
  • 4A maximum continuous output current
  • Adjustable and synchronizable: 400kHz to 4MHz
  • Current mode control, fast transient response
  • Forced continuous mode capability
  • Multiphase parallel with current sharing
  • Programmable power good
  • Available in a tiny 28-Pin 6.25mm × 4mm × 1.92mm BGA package

The LTM4732 is a complete 4A step-down Silent Switcher 3 power μModule® (micromodule) regulator in a tiny 6.25mm × 4mm × 1.92mm ball grid array (BGA) package. The package includes the switching controller, the power MOSFETs, an inductor, and the supporting components. Operating over an input voltage range of 3V to 16V, the LTM4732 supports an output range of 0.3V to 6V. A single resistor sets the output voltage, enabling unity-gain operation over the output range and resulting in virtually constant output noise independent of the output voltage. Only the bulk input and output capacitors are required to complete the design.

The LTM4732 employs the Silent Switcher 3 architecture with internal hot loop bypass capacitors to achieve low electromagnetic interference (EMI) and high efficiency. Additionally, the LTM4732 has an ultralow noise architecture to obtain exceptional low-frequency (<100kHz) output noise. The low electromagnetic interference (EMI) and the low-noise features make the LTM4732 ideal for noise-sensitive applications with a high-efficiency synchronous switching regulator. The LTM4732 is available with a RoHS-compliant terminal finish.

APPLICATIONS

  • Telecom, networking, and industrial equipment 
  • RF power supplies: PLLs, VCOs, mixers, LNAs, PAs 
  • Low-noise instrumentation 
  • High speed/high precision data converters
LTM4732
16VIN, 4A Ultralow Noise Silent Switcher 3 μModule Regulator

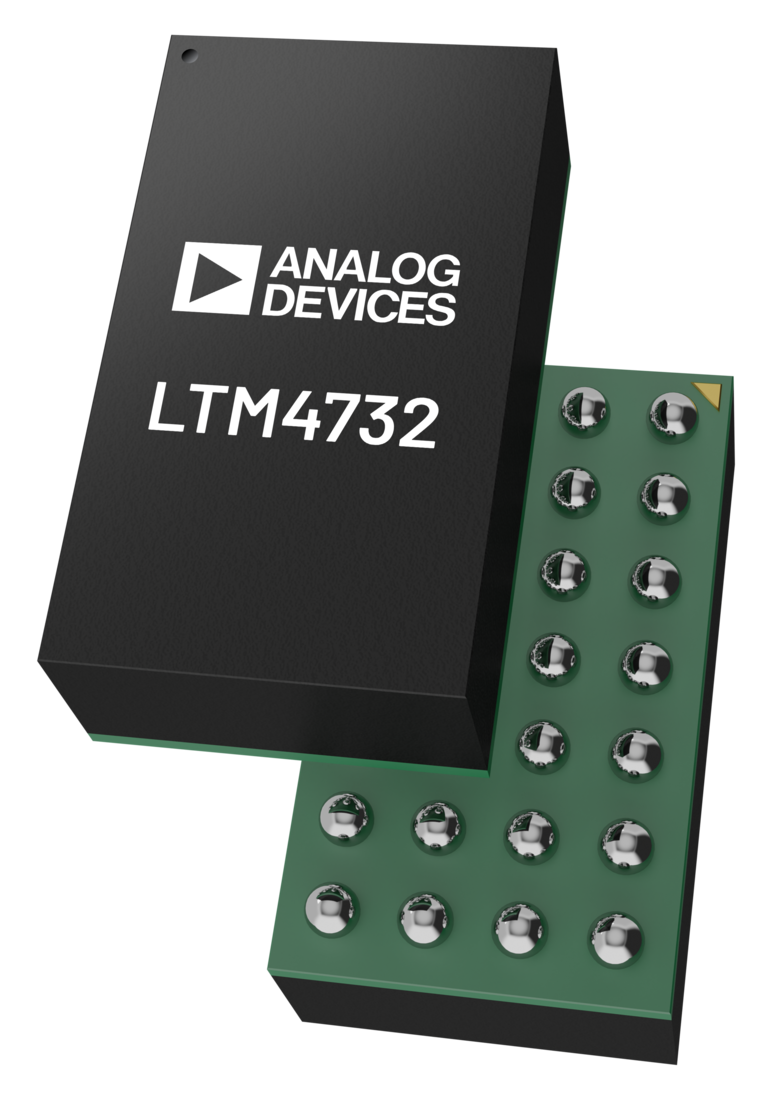

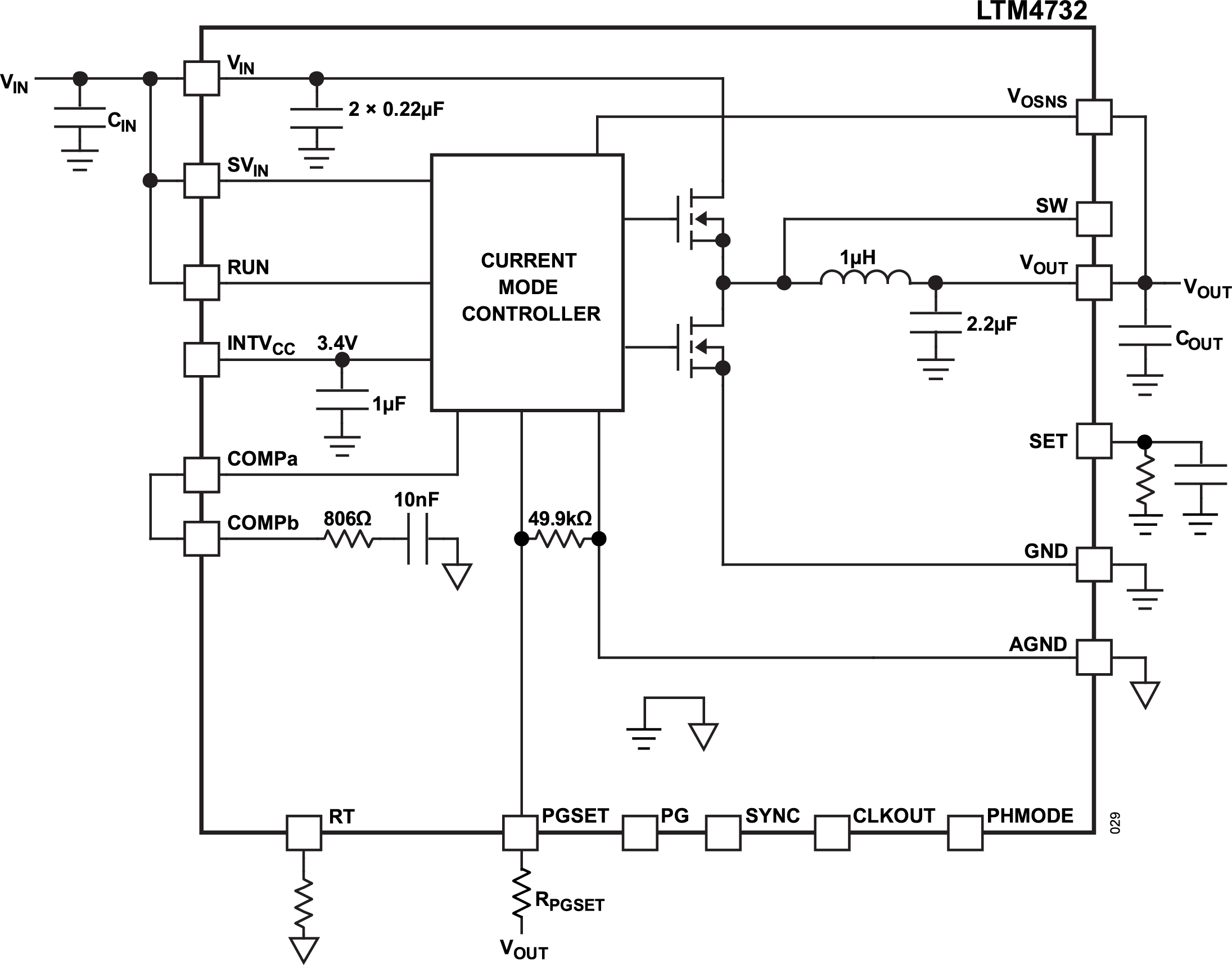

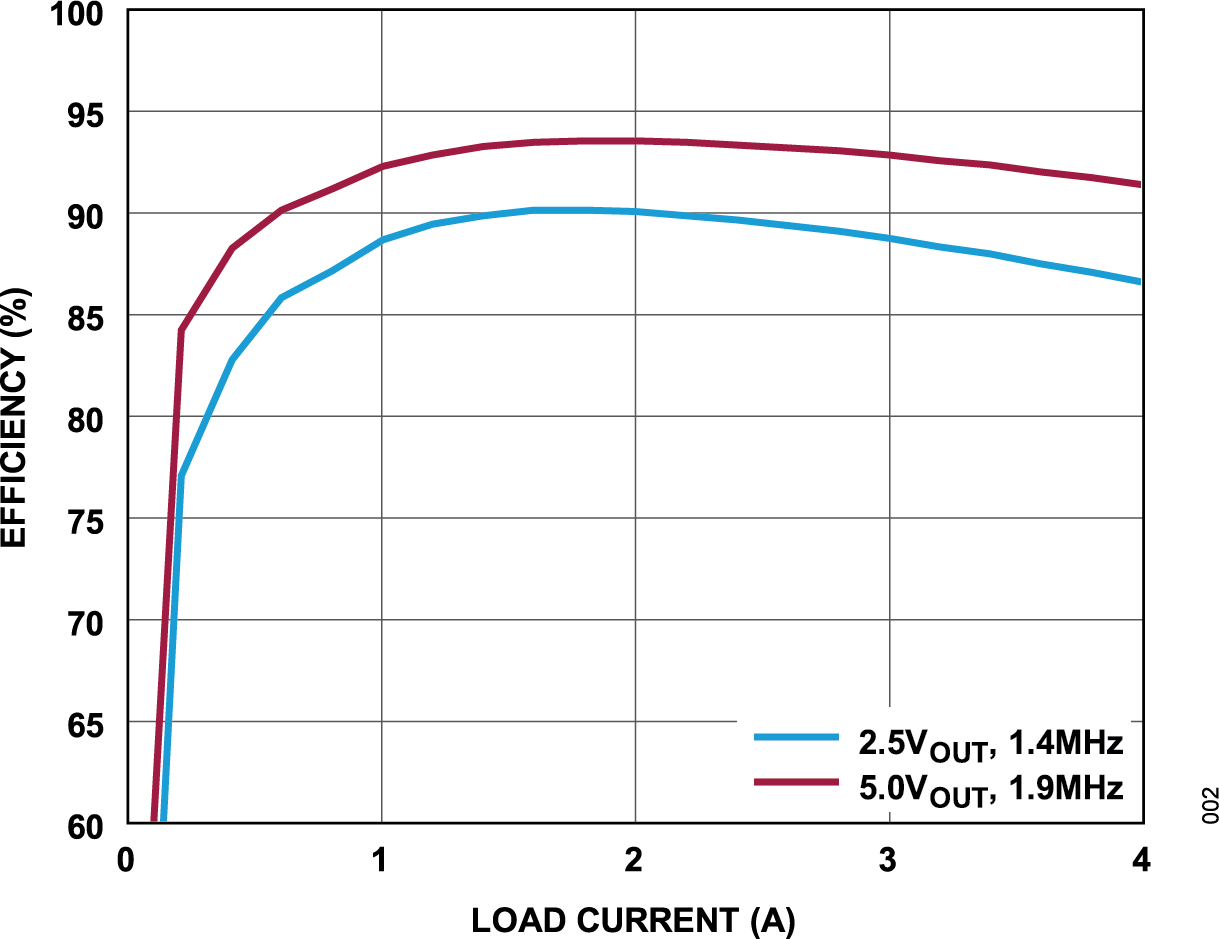

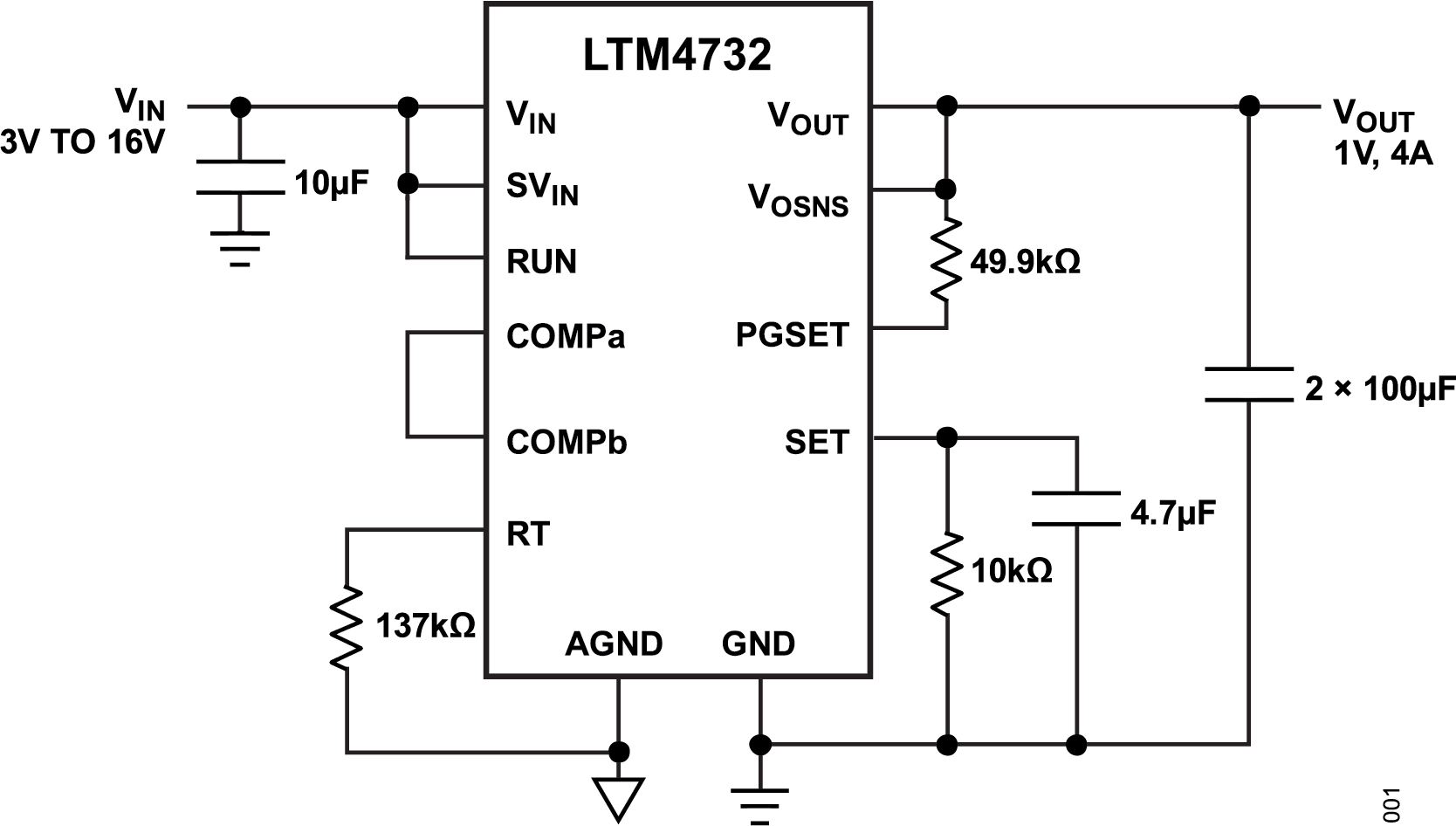

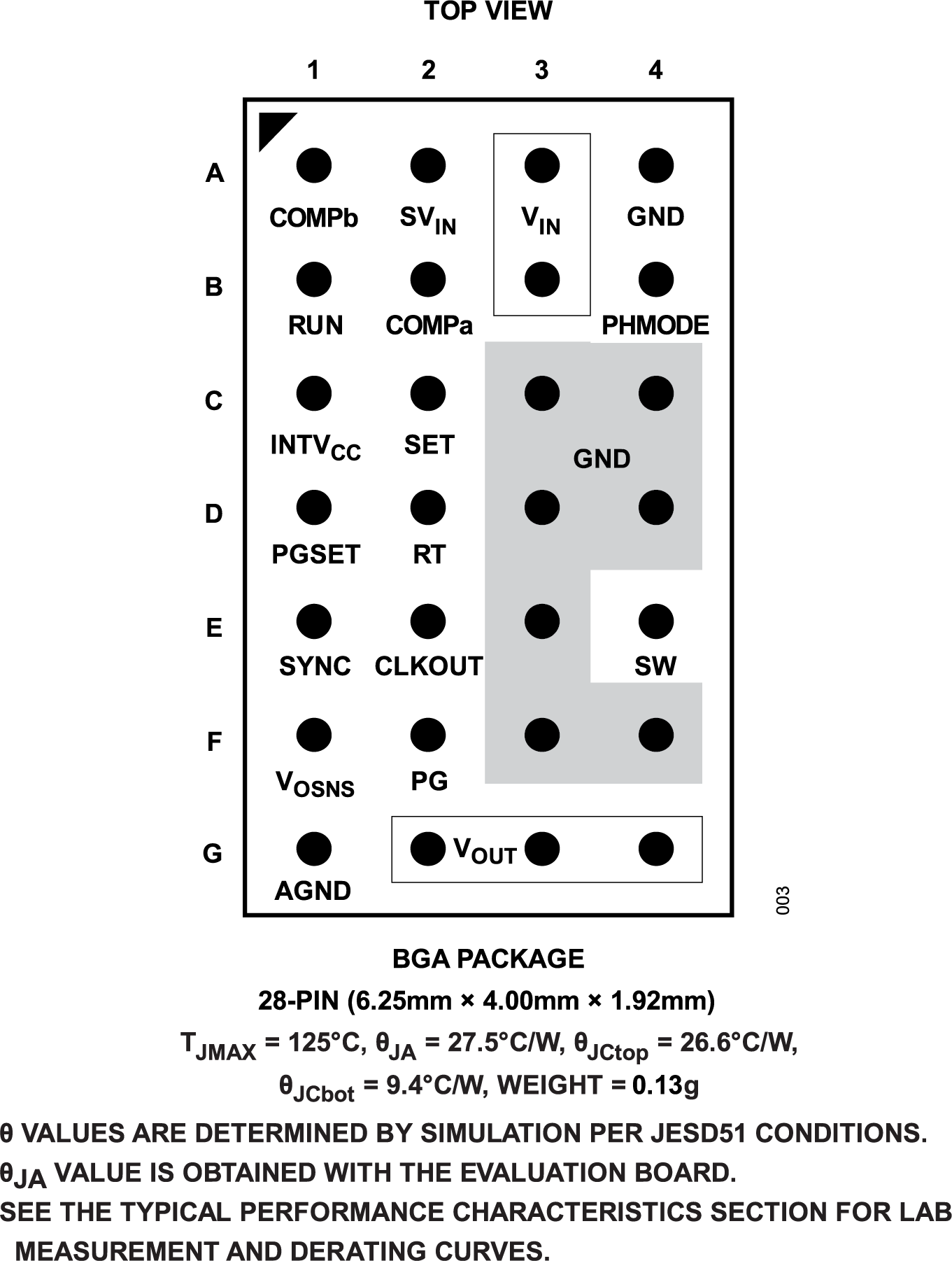

LTM4732 Typical Application Circuit LTM4732 Typical Application Graph LTM4732 Simplified Block Diagram LTM4732 Pin Configuration LTM4732 Chip Illustration
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

User Guide 1

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTpowerCAD 1

Design tools for the following parts are available in LTpowerCAD:

  • LTM4732
LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

LTpowerCAD

LTpowerCAD® is a power supply design program which selects power stage components, provides detailed power efficiency, shows quick loop Bode plot stability and load transient analysis, and can export to LTspice for simulation.

Evaluation Kits

eval board
schematic 1
schematic 2
schematic 3
EVAL-LTM4732-AZ

LTM4732: 16V, 4A Ultralow Noise Silent Switcher 3 μModule Regulator

Buy Now View Details

Features and Benefits

  • Parallel for High-Power Applications
  • External or Internal Compensation
  • With Optional Input EMI Filter

Product Details

The EVAL-LTM4732-AZ evaluation board is a step-down DC-to-DC switching converter featuring the LTM®4732 power μModule® (micromodule) regulator. The EVAL-LTM4732-AZ is designed to deliver 4A maximum output current from a 4V to 16V input. The LTM4732 employs Silent Switcher®3 architecture with internal hot loop bypass capacitors to achieve both low electromagnetic interference (EMI) and high efficiency. The LTM4732contains a current mode regulator IC, a power inductor, and a modest amount of input and output capacitance. A single resistor (R3) sets the output voltage, providing unity-gain operation over the output range, resulting in a virtually constant output noise independent of the output voltage.

The EVAL-LTM4732-AZ evaluation board’s default switching frequency is 800kHz. An external resistor is placed from the RT pin to GND (R7) to set the switching frequency.

The SYNC pin programs three different operating modes (JP1 jumper): select PULSE for pulse-skipping mode (PSM) with improved efficiency at light loads; select FCM for forced continuous mode operation where fixed frequency operation is more critical than low current efficiency, and where the lowest output ripple is desired; select SYNC to synchronize to an external clock signal.The RUN terminal can be used to set the LTM4732 in shutdown mode. The power good output (PG) will be low when the output voltage exceeds the ±7.5% regulation window. When the power good feature is used, set the PGSET resistor (R1) value according to the regulator output voltage.

The LTM4732 data sheet provides a complete description of the operation and the application information. The data sheet must be read in conjunction with this user guide.
EVAL-LTM4732-AZ
LTM4732: 16V, 4A Ultralow Noise Silent Switcher 3 μModule Regulator

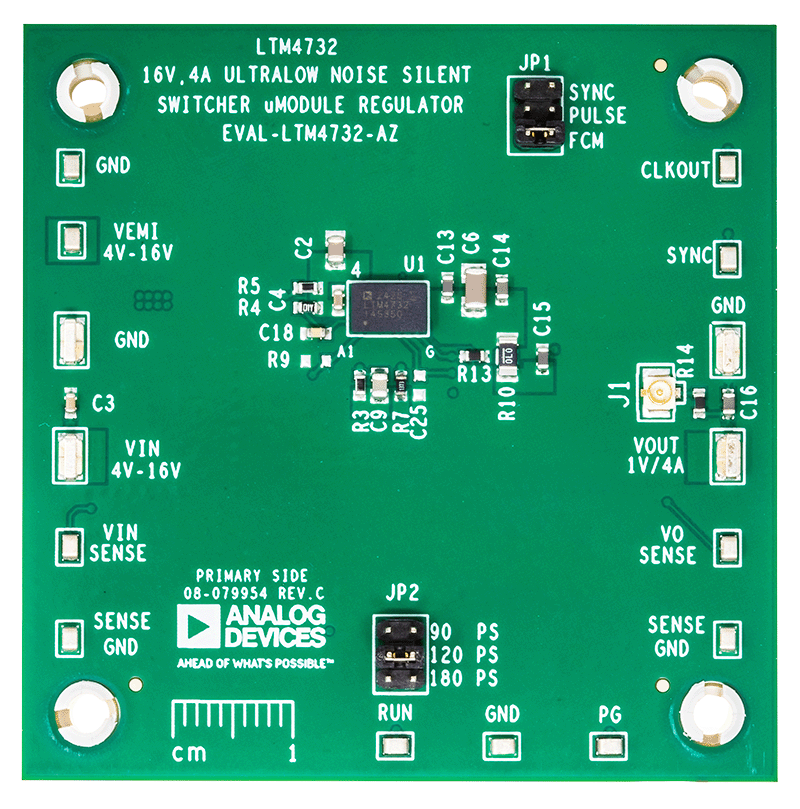

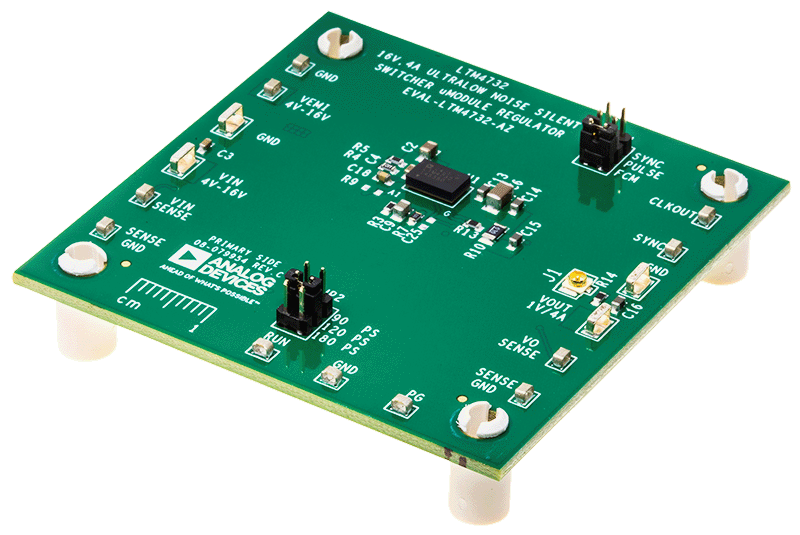

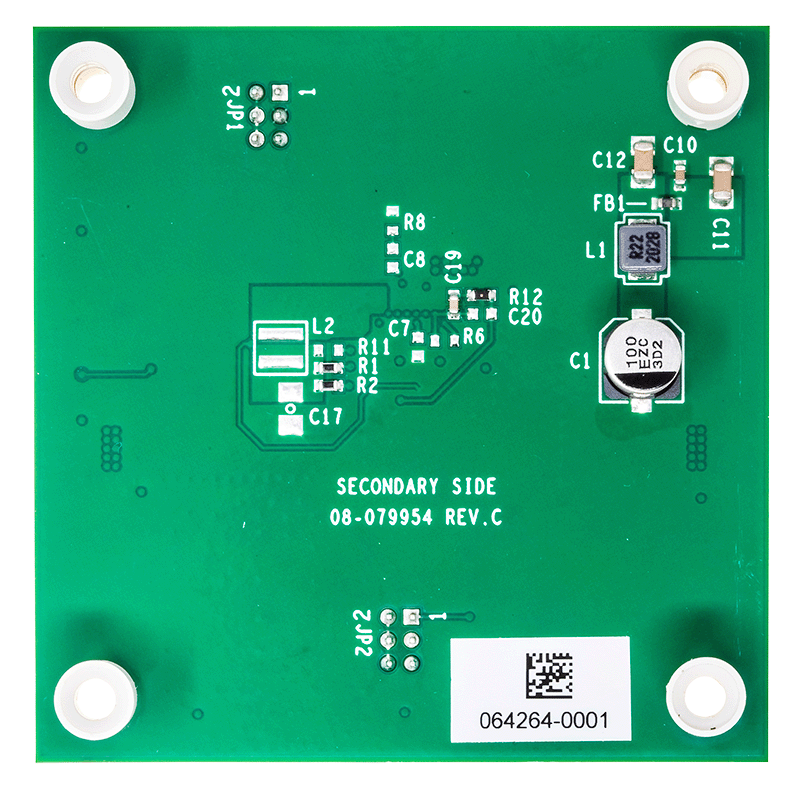

EVAL-LTM4732-AZ Evaluation Board Angle View EVAL-LTM4732-AZ Evaluation Board Top View EVAL-LTM4732-AZ Evaluation Board Bottom View
