LTC3602

PRODUCTION

2.5A, 10V, Monolithic Synchronous Step-Down Regulator

Data Sheet Product Selection Table

Part Models: 8
1ku List Price: Starting From $4.78

Viewing:

Part Details

Wide Input Voltage Range: 4.5V to 10V
2.5A Output Current
Low R_DS(ON) Internal Switches: 65mΩ and 90mΩ
Programmable Frequency: 300kHz to 3MHz
Low Quiescent Current: 75μA
0.6V ±1% Reference Allows Low Output Voltage
99% Maximum Duty Cycle
Adjustable Burst Mode^® Clamp
Synchronizable to External Clock
Power Good Output Voltage Monitor
Overtemperature Protection

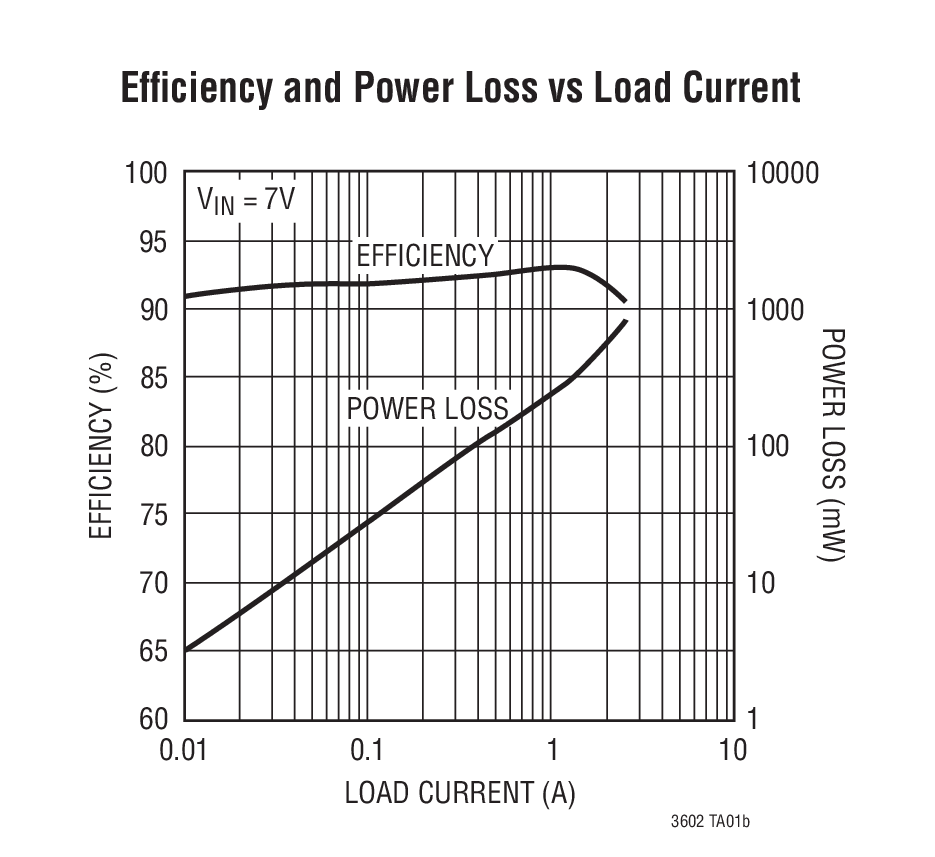

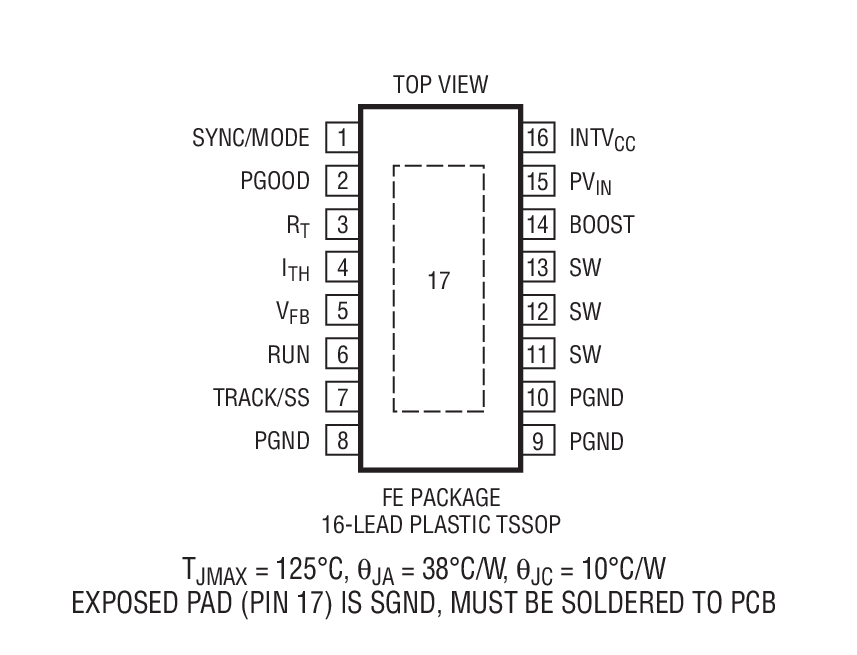

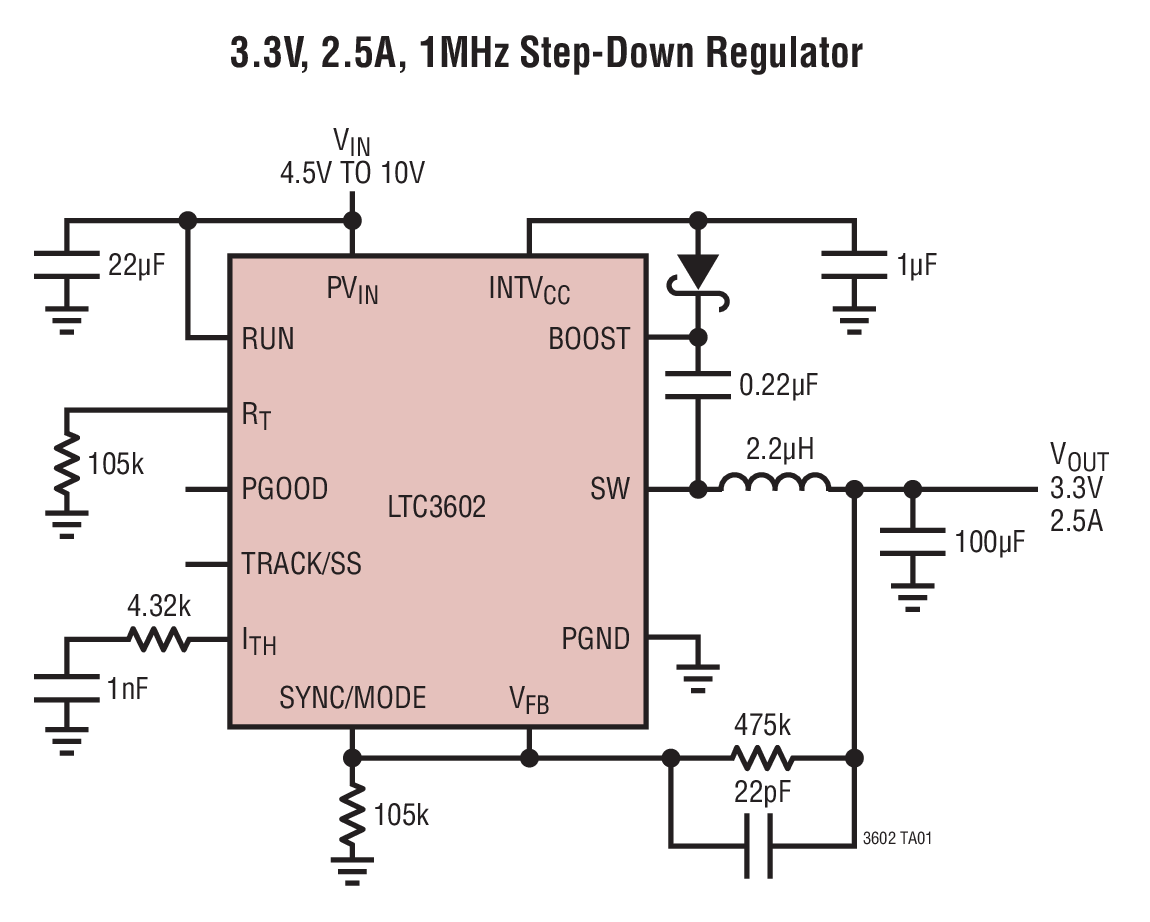

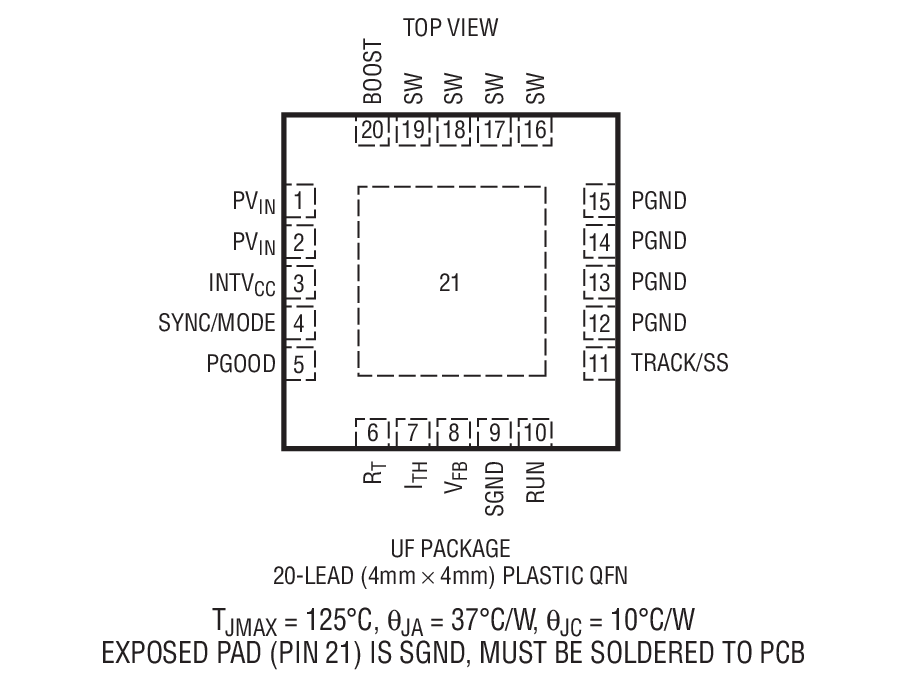

Available in 16-Lead Exposed TSSOP and 4mm × 4mm QFN Packages

Part Models: 8
1ku List Price: Starting From $4.78

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC3602EFE#PBF	16-Lead TSSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3602EFE#TRPBF	16-Lead TSSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3602EUF#PBF	20-Lead QFN (4mm x 4mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3602EUF#TRPBF	20-Lead QFN (4mm x 4mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3602IFE#PBF	16-Lead TSSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3602IFE#TRPBF	16-Lead TSSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3602IUF#PBF	20-Lead QFN (4mm x 4mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3602IUF#TRPBF	20-Lead QFN (4mm x 4mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Apr 6, 2022 - 22_0068 Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL
		PCN22_0068_Form Material_Report Delta Qualification Matrix
LTC3602EFE#PBF	PRODUCTION
LTC3602EFE#TRPBF	PRODUCTION
LTC3602IFE#PBF	PRODUCTION
LTC3602IFE#TRPBF	PRODUCTION
Feb 20, 2022 - 21_0269 Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products
		PCN21_0269_Form Material_Report Detailed Change Description Qualification Results Summary
LTC3602EUF#PBF	PRODUCTION
LTC3602EUF#TRPBF	PRODUCTION
LTC3602IUF#PBF	PRODUCTION
LTC3602IUF#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
Oscillators 2
LTC6908		Resistor Set SOT-23 Oscillator with Spread Spectrum Modulation
LTC6909	PRODUCTION	1 to 8 Output, Multiphase Silicon Oscillator with Spread Spectrum Modulation

Parts	Product Life Cycle	Description
LTC3603	PRODUCTION	2.5A, 15V Monolithic Synchronous Step-Down Regulator

Tools & Simulations

LTspice 1

LTC3602 Demo Circuit - 2.5A, 10V, Monolithic Synchronous Step-Down Regulator (4.5-10V to 2.5V @ 2.5A)

Models for the following parts are available in LTspice:

LTC3602

LTpowerCAD 1

LTC3602 Project - 2.5A, 10V, Monolithic Buck Regulator (4.5-10V to 2.5V @ 2.5A)

Design tools for the following parts are available in LTpowerCAD:

LTC3602

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

LTpowerCAD^® is a power supply design program which selects power stage components, provides detailed power efficiency, shows quick loop Bode plot stability and load transient analysis, and can export to LTspice for simulation.

Evaluation Kits

LTC3602EUF | 2.5A, 15V, Monolithic Synchronous Step-Down Regulator

Buy Now View Details

Product Details

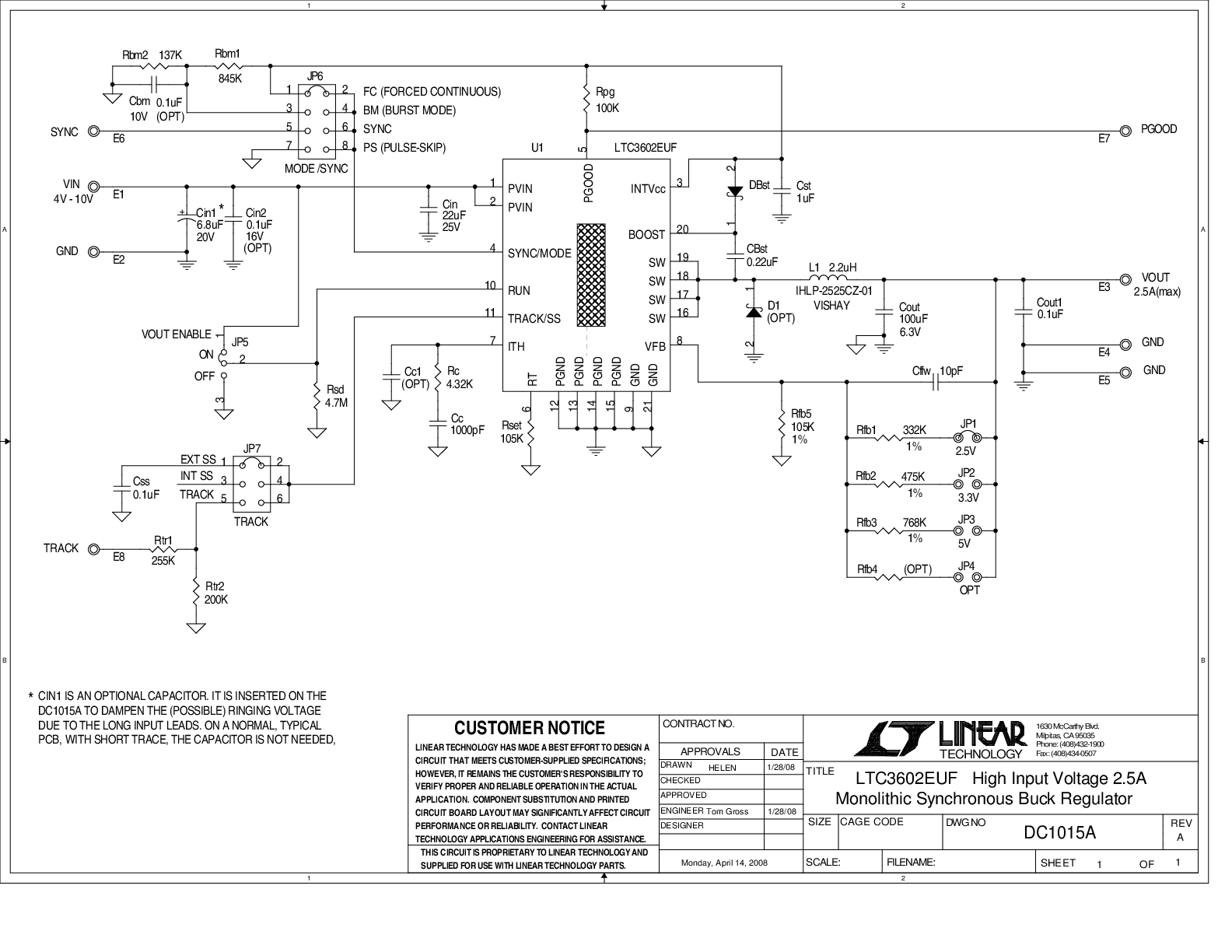

DC1015A - Demo Board for: LTC3602 - 2.5A, 10V, Monolithic Synchronous Step-Down Regulator
