LTC2753

PRODUCTION

Dual Current Output 12-/14-/16-Bit SoftSpan DACs with Parallel I/O

Data Sheet Product Selection Table
Viewing:

Overview

  • Six Programmable Output Ranges
    • Unipolar: 0V to 5V, 0V to 10V
    • Bipolar: ±5V, ±10V, ±2.5V, –2.5V to 7.5V
  • Maximum 16-Bit INL Error: ±1 LSB over Temperature
  • Low 1µA (Maximum) Supply Current
  • Guaranteed Monotonic over Temperature
  • Low Glitch Impulse 1nV•s
  • 2.7V to 5.5V Single Supply Operation
  • 2µs Settling Time to ±1 LSB
  • Parallel Interface with Readback of All Registers
  • Asynchronous CLR Pin Clears DAC Outputs to 0V in Any Output Range
  • Power-On Reset to 0V
  • 48-Pin 7mm × 7mm QFN Package

The LTC2753 is a family of dual 12-, 14-, and 16-bit multiplying parallel-input, current-output DACs. These DACs operate from a single 2.7V to 5.5V supply and are all guaranteed monotonic over temperature. The LTC2753A-16 provides 16-bit performance (±1LSB INL and DNL) over temperature without any adjustments. These SoftSpan™ DACs offer six output ranges—two unipolar and four bipolar—that can be programmed through the parallel interface, or pinstrapped for operation in a single range.

The LTC2753 DACs use a bidirectional input/output parallel interface that allows readback of any on-chip register. A power-on reset circuit resets the DAC outputs to 0V when power is initially applied. A logic low on the CLR pin asynchronously clears the DACs to 0V in any output range.

The parts are specified over commercial and industrial temperature ranges.

Applications

  • High Resolution Offset and Gain Adjustment
  • Process Control and Industrial Automation
  • Automatic Test Equipment
  • Data Acquisition Systems
LTC2753
Dual Current Output 12-/14-/16-Bit SoftSpan DACs with Parallel I/O

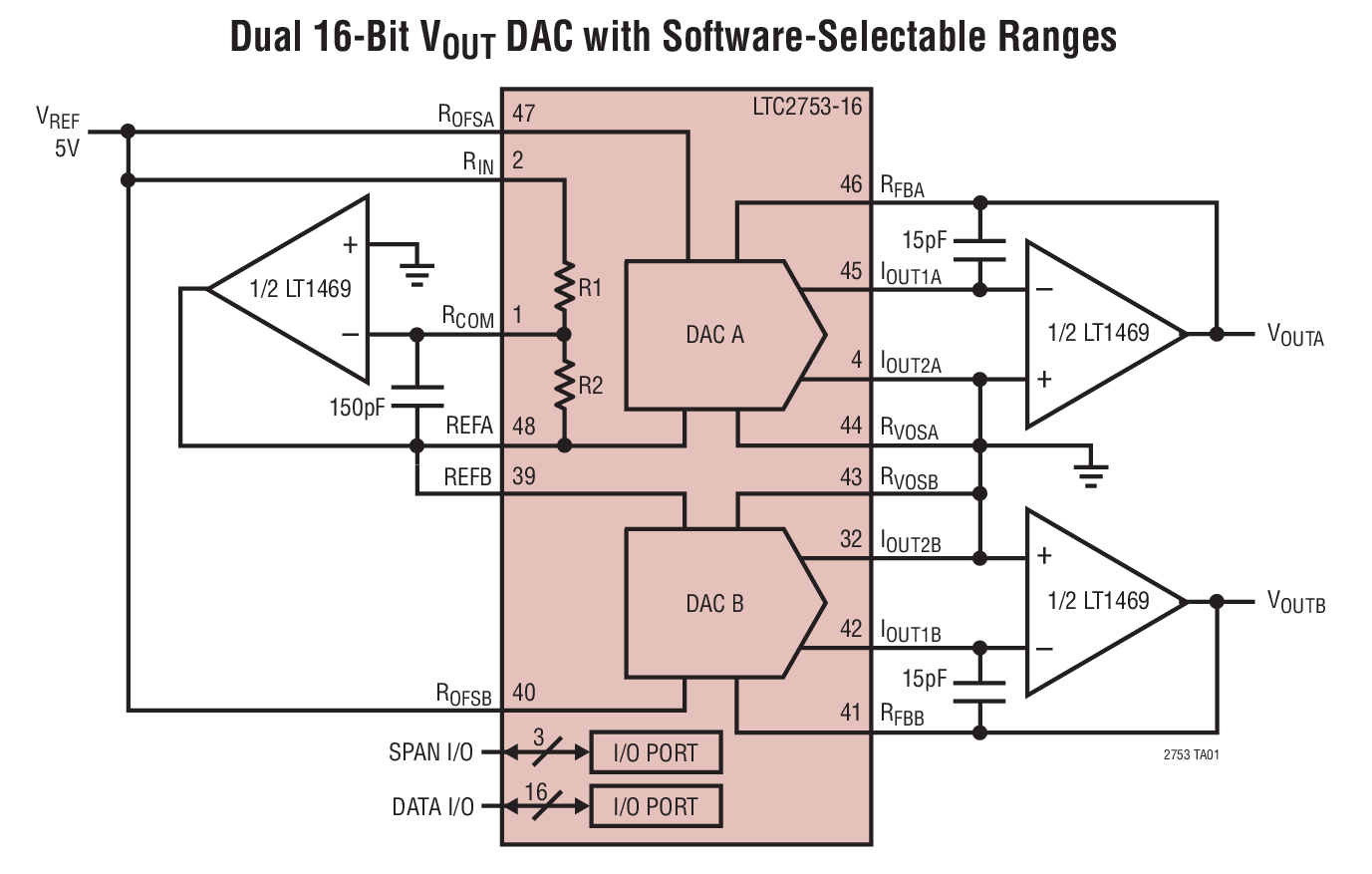

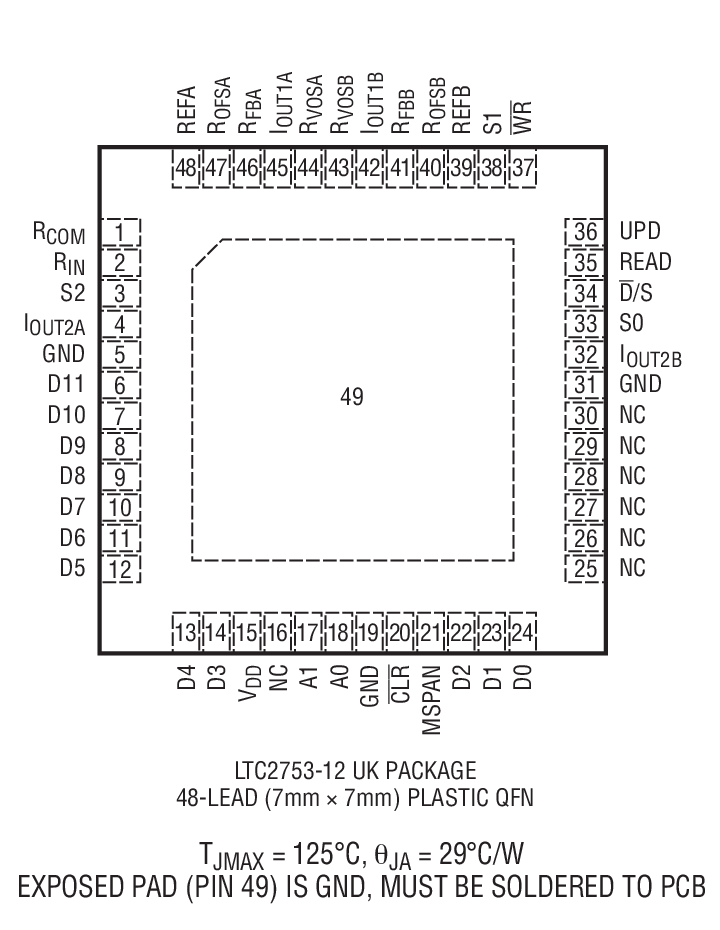

Dual 16-Bit VOUT DAC with Software-Selectable Ranges LTC2753-16 Integral Nonlinearity (INL) Product Package 1 Product Package 2 Product Package 3
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

Reliability Data 1

User Guide 1

Data Sheet

This is the most up-to-date revision of the Data Sheet.

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts Product Life Cycle Description
Matched Resistors & Transistors 1
LT5400
RECOMMENDED FOR NEW DESIGNS Quad Matched Resistor Network
Modal heading
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Evaluation Kits

eval board

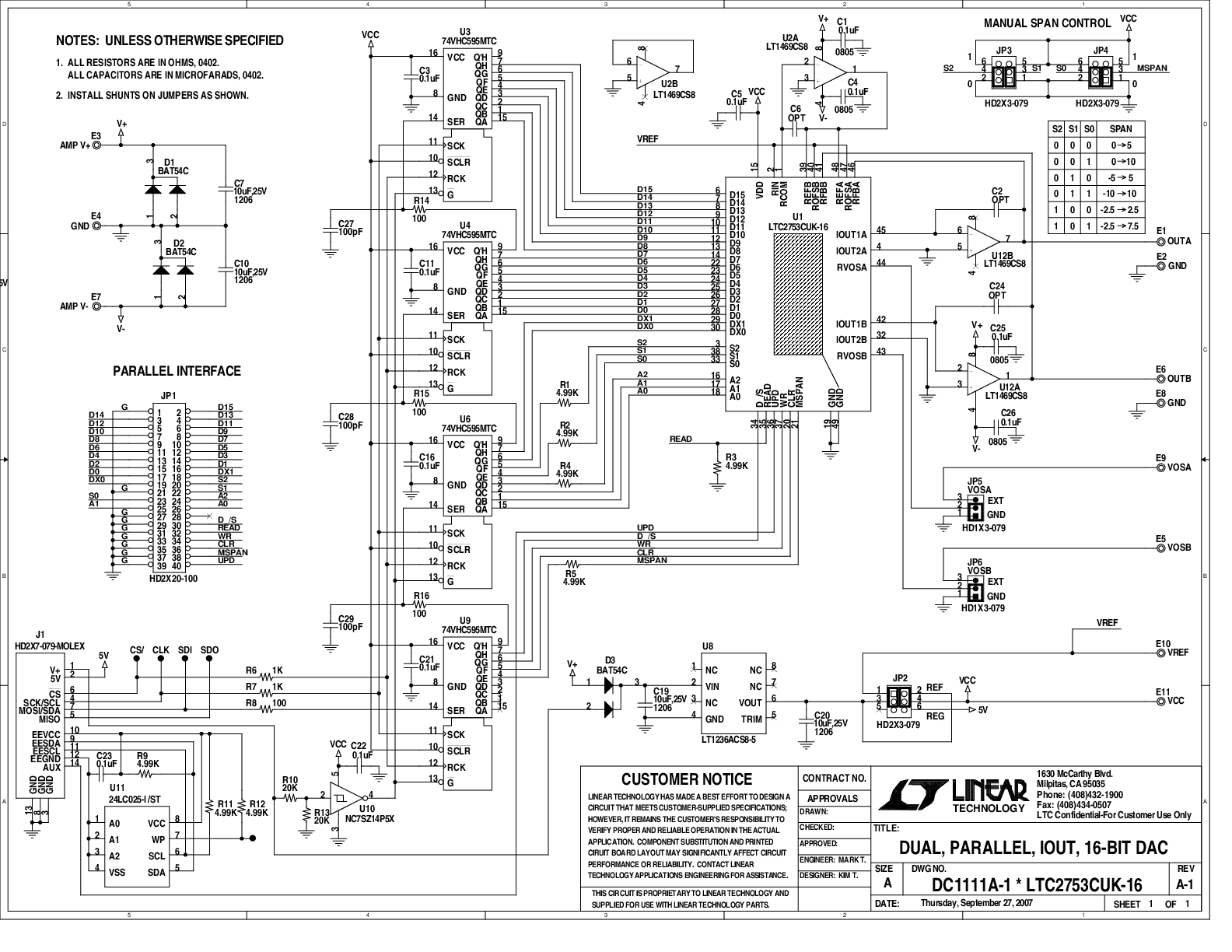

schematic 1
