LTC1753

PRODUCTION

5-Bit Programmable Synchronous Switching Regulator Controller for Pentium^® III Processor

Data Sheet Product Selection Table

Part Models: 4
1ku List Price: Starting From $4.11

Viewing:

Part Details

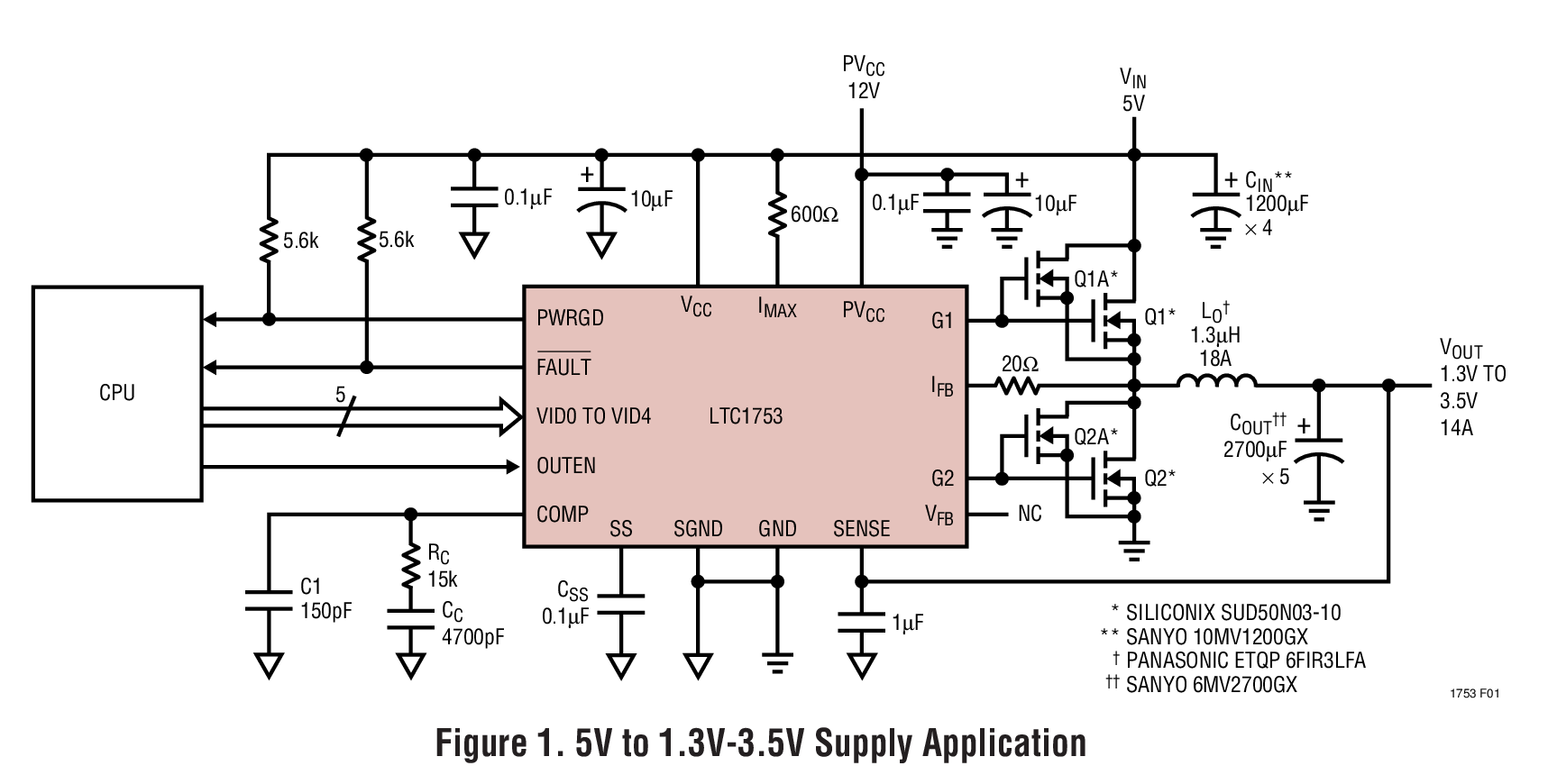

5-Bit Digitally Programmable 1.3V to 3.5V Fixed Output Voltage, VRM 8.4 Compliant
Fast Transient Response: 0% to 100% Duty Cycle
Phase Lead Compensation for Remote Sensing
Overtemperature Protection
Flags for Power Good and Overvoltage Fault
19A Output Current Capability from a 5V Supply
Dual N-Channel MOSFET Synchronous Driver
Initial Output Accuracy: ±1.5%
Excellent Output Accuracy: ±2% Typ Over Line, Load and Temperature Variations
High Efficiency: Over 95% Possible
Adjustable Current Limit Without External Sense Resistors

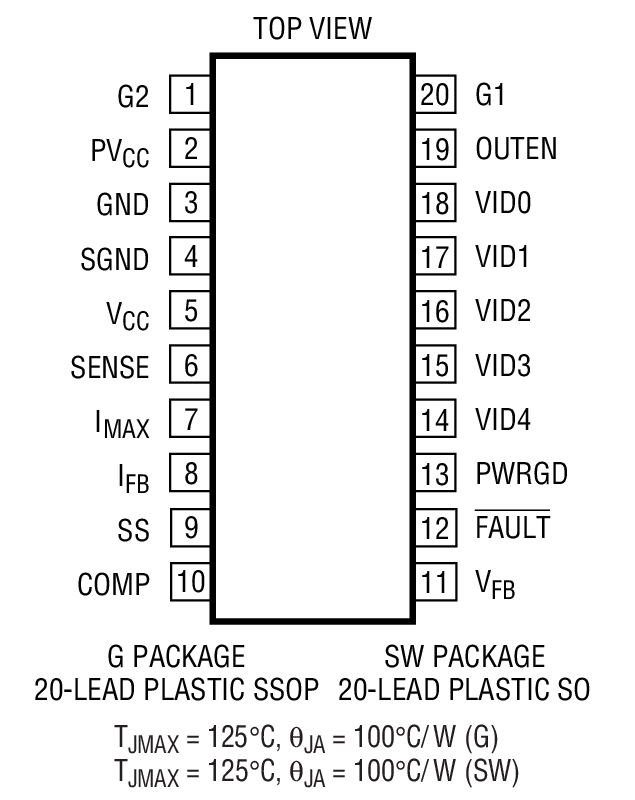

Available in 2O-Lead SSOP and SW Packages

Part Models: 4
1ku List Price: Starting From $4.11

Documentation

Data Sheet 1

LTC1753: 5-Bit Programmable Synchronous Switching Regulator Controller for Pentium^® II Processor Data Sheet 08/28/2007

Reliability Data 1

R344 Reliability Data 03/26/2018

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC1753CG#PBF	20-Lead SSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1753CG#TRPBF	20-Lead SSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1753CSW#PBF	20-Lead SOIC (Wide 0.3 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1753CSW#TRPBF	20-Lead SOIC (Wide 0.3 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Aug 6, 2022 - 22_0171 Laser Top Mark Conversion for SSOP Packages Assembled in PNG
		PCN22_0171_Form Material_Report Delta Qualification Matrix
LTC1753CG#PBF	PRODUCTION
LTC1753CG#TRPBF	PRODUCTION
Aug 10, 2022 - 22_0176 Laser Top Mark Conversion for SOIC_W Packages Assembled in ADPG [PNG] and UTL
		PCN22_0176_Form Material_Report Delta Qualification Matrix
LTC1753CSW#PBF	PRODUCTION
LTC1753CSW#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.
