HMC995

Obsolete

3 Watt Power Amplifier SMT, 12 - 16 GHz

Part Models: 2
1ku List Price: price unavailable

Viewing:

Overview

Saturated Output Power:
35.5 dBm @ 24% PAE
High Output IP3: 41 dBm
High Gain: 27 dB
DC Supply: +7V @ 1200 mA
No External Matching Required

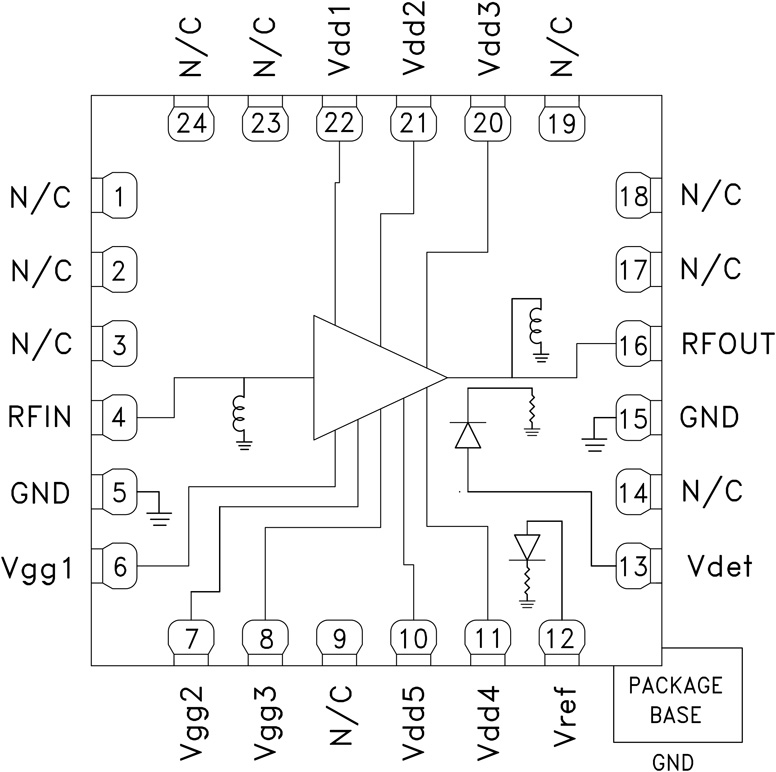

The HMC995LP5GE is a 4 stage GaAs pHEMT MMIC 3 Watt Power Amplifier with an integrated temperature compensated on-chip power detector which operates between 12 and 16 GHz. The HMC995LP5GE provides 27 dB of gain, 35.5 dBm of saturated output power, and 24% PAE from a +7V supply. The HMC995LP5GE exhibits excellent linearity and is optimized for high capacity digital microwave radio. It is also ideal for 13.75 to 14.5 GHz Ku Band VSAT transmitters as well as SATCOM applications. The HMC995LP5GE amplifier I/Os are internally matched to 50 Ohms and is packaged in a leadless QFN 5 x 5 mm surface mount package and requires no external matching components.

Applications

Point-to-Point Radios
Point-to-Multi-Point Radios
VSAT & SATCOM
Military & Space

Part Models: 2
1ku List Price: price unavailable

Documentation

Obsolete Data Sheet 1

HMC995LP5GE: GaAs pHEMT MMIC 3 Watt Power Amplifier SMT with Power Detector, 12 - 16 GHz Obsolete Data Sheet 02/10/2015

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC995LP5GE	24 ld LFCSP (5x5mm w/2.35mm EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
HMC995LP5GETR	24 ld LFCSP (5x5mm w/2.35mm EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Mar 3, 2016 - 16_0010 Discontinuance of Select RF and Microwave Products
		PDN16_0010_Form Material_Report
HMC995LP5GE	Obsolete
HMC995LP5GETR	Obsolete
