HMC897

Obsolete

HMC897 / HMC897LP4E

Filter-Tunable, Band-Pass Chip or SMT, 9 GHz to 19 GHz

Data Sheet Product Selection Table

Part Models: 2
1ku List Price: price unavailable

Viewing:

Overview

Fast tuning response
Excellent wideband rejection
Single chip replacement for mechanically tuned designs

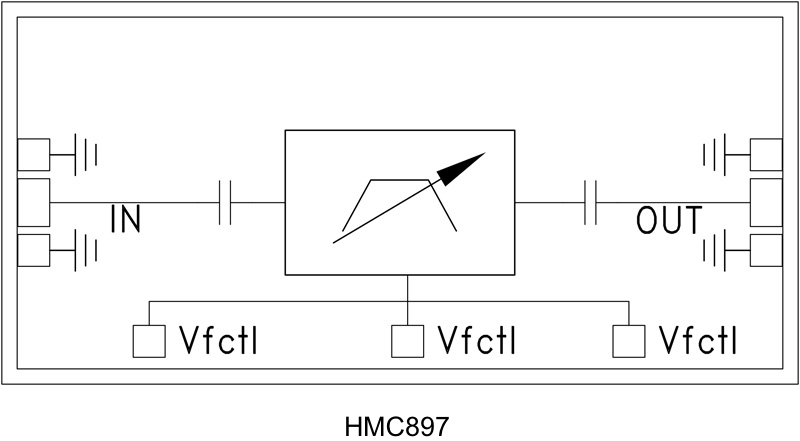

Small size: 2.48 × 1.16 × 0.10 mm

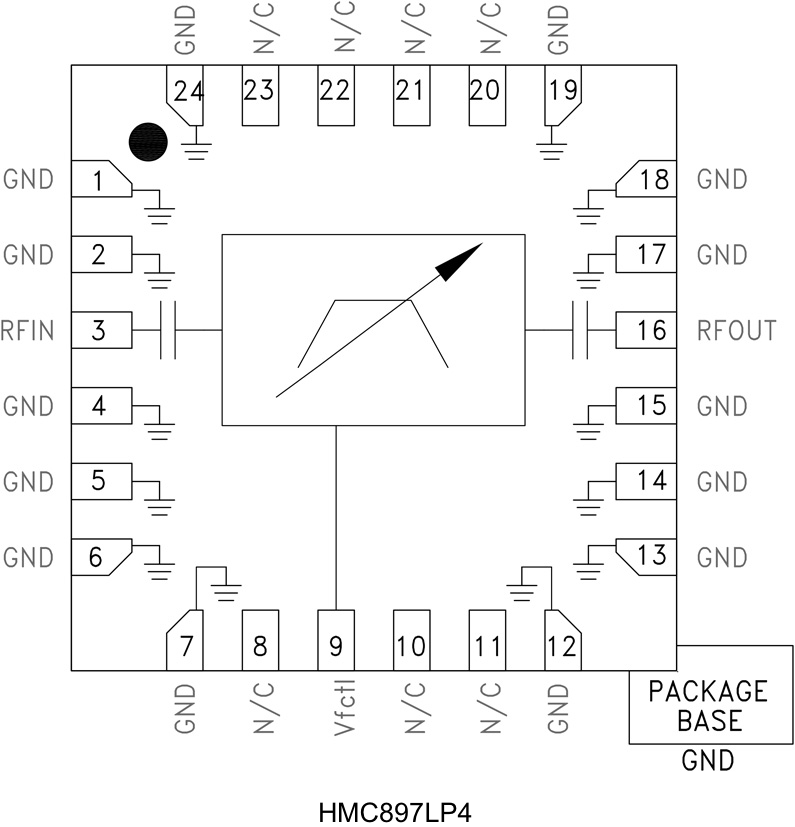

24-lead, 4 × 4 mm, QFN, surface-mount technology (SMT) package

The HMC897 devices are monolithic microwave integrated circuit (MMIC), band-pass filters which feature a user selectable pass-band frequency. The 3 dB filter bandwidth is approximately 18%. The 20 dB filter bandwidth is approximately 35%. The center frequency can be varied between 9 GHz and 19 GHz by applying an analog tune voltage between 0 V and 14 V. These tunable filters can be used as a much smaller alternative to physically large switched filter banks and cavity tuned filters. The HMC897 devices have excellent microphonics due to the monolithic design and provide a dynamically adjustable solution in advanced communications applications.

Applications

Test measurement and equipment
Military radar and EW/ECM
SATCOM and space
Industrial and medical equipment

Part Models: 2
1ku List Price: price unavailable

Documentation

Data Sheet 1

HMC897LP4E Data Sheet 04/15/2015

Obsolete Data Sheet 1

HMC897 Die Data Sheet 09/11/2015

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC897	CHIPS OR DIE	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
HMC897LP4E	24-Lead QFN (4mm x 4mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Dec 14, 2015 - 15_0026 Discontinuance of Select Hittite Microwave Products (HMC) from Analog Devices
		PDN15_0026_Form Material_Report
HMC897	Obsolete
HMC897LP4E
