HMC757

Obsolete

HMC757 / HMC757LP4E

Half-Watt Power Amplifier Chip or SMT, 16 GHz to 24 GHz

Data Sheet Product Selection Table

Part Models: 3
1ku List Price: price unavailable

Viewing:

Overview

Saturated output power:+27.5 dBm at 21% PAE, +30 dBm at 30% PAE
High output IP3: 34.5 dBm, 37 dBm
High gain: 20.5 dB, 22 dB
DC supply: +5 V at 400 mA, +7 V at 395 mA

50 Ω matched input/output
No external matching required
Die size: 2.4 × 0.9 × 0.1 mm
32-lead, 5 × 5 mm, surface-mount technology (SMT) package

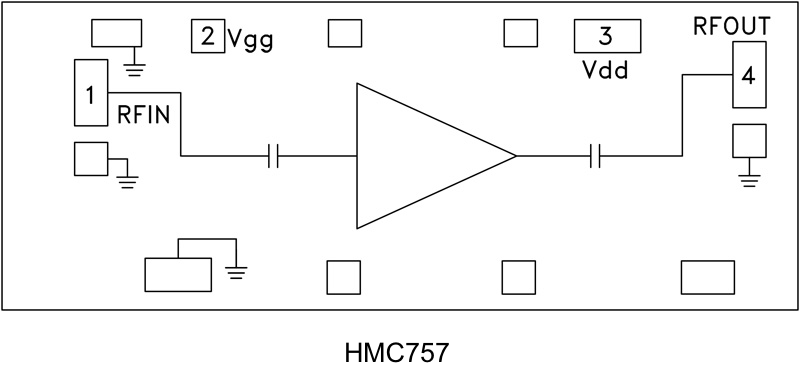

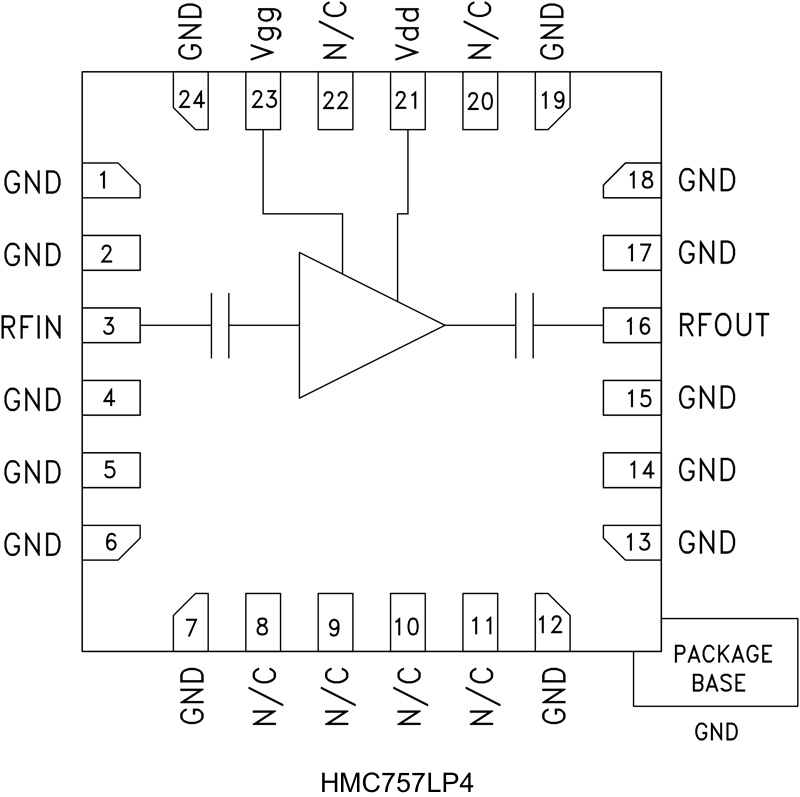

The HMC757 devices are three-stage, GaAs, PHEMT, monolithic microwave integrated circuit (MMIC), half-watt and one-watt power amplifiers which operate between 16 GHz and 24 GHz. These amplifiers provide up to 20.5 dB or 22 dB of gain and +27.5 dBm of saturated output power at 21% PAE or 30 dBm of saturated output power at 30% PAE from a +5 V or +7 V supply. The RF inputs/outputs are dc-blocked and matched to 50 Ω for ease of integration into multichip modules (MCMs). All data is taken with the chip in a 50 Ω test fixture connected via 0.025 mm (1 mil) diameter wire bonds of 0.31 mm (12 mils) length. The 4 × 4 mm, plastic package of the power amplifier SMT eliminates the need for wirebonding and is compatible with surface-mount manufacturing techniques.

Applications

Point-to-point radios
Point-to-multipoint radios
VSAT
Military and space

Suggested Replacement Parts

Part Models: 3
1ku List Price: price unavailable

Documentation

Data Sheet 1

HMC757LP4E Data Sheet 04/16/2015

Obsolete Data Sheet 1

HMC757 Die Data Sheet 09/11/2015

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC757-SX	CHIPS OR DIE	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
HMC757LP4E	24-Lead QFN (4mm x 4mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
HMC757LP4ETR	24-Lead QFN (4mm x 4mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Dec 14, 2015 - 15_0026 Discontinuance of Select Hittite Microwave Products (HMC) from Analog Devices
		PDN15_0026_Form Material_Report
HMC757LP4E
HMC757LP4ETR	Obsolete
