HMC453QS16G

LAST TIME BUY

1.6 Watt Power Amplifier SMT, 0.4 - 2.2 GHz

Part Models: 2
1ku List Price: price unavailable

Viewing:

Overview

Output IP3: +51 dBm
21.5 dB Gain @ 400 MHz
8 dB Gain @ 2100 MHz
45% PAE @ +32 dBm Pout
+25 dBm CDMA2000
Channel Power@ -45 dBc ACP
Single +5V Supply
Integrated Power Control (VPD)
QSOP16G SMT Package: 29.4 mm²

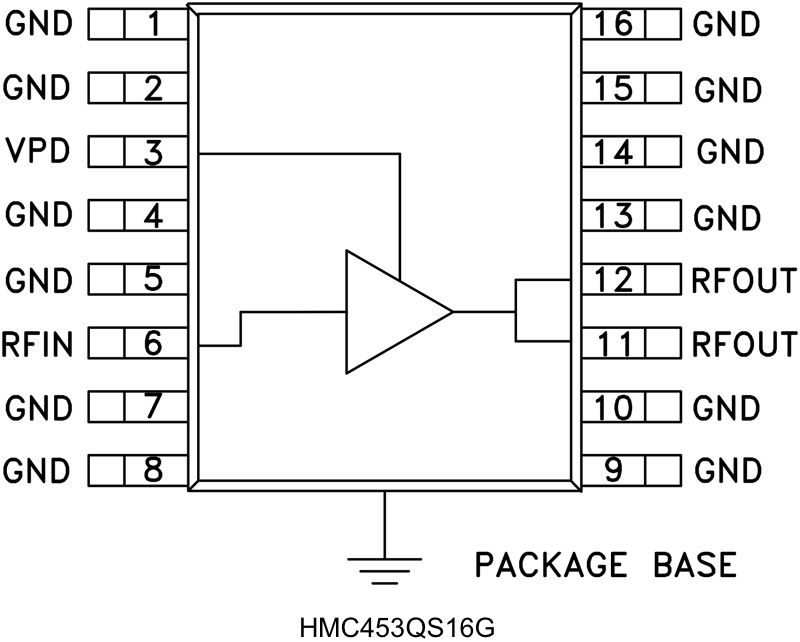

The HMC453QS16G(E) is a high dynamic range GaAs InGaP Heterojunction Bipolar Transistor (HBT) 1.6 watt MMIC power amplifier operating between 0.4 and 2.2 GHz. Packaged in a miniature 16 lead QSOP plastic package, the amplifier gain is typically 21.5 dB at 0.4 GHz and 8 dB at 2.1 GHz. Utilizing a minimum number of external components and a single +5V supply, the amplifier output IP3 can be optimized to +47 dBm at 0.4 GHz or +51 dBm at 2.1 GHz. The power control (VPD) can be used for full power down or RF output power/current control. The high output IP3 and PAE make the HMC453QS16G(E) ideal power amplifier for Cellular/ PCS/3G, WLL, ISM and Fixed Wireless applications.

Applications

GSM, GPRS & EDGE
CDMA & W-CDMA
CATV/Cable Modem
Fixed Wireless & WLL

Part Models: 2
1ku List Price: price unavailable

Documentation

Data Sheet 1

HMC453QS16G Data Sheet 04/16/2015

Application Note 4

Thermal Management for Surface Mount Components General Application Note 11/11/2015

AN-2591: When It Comes to Long-Term Reliability of RF Amplifier ICs, Focus First on Die Junction Temperature 08/05/2024

AN-1363: Meeting Biasing Requirements of Externally Biased RF/Microwave Amplifiers with Active Bias Controllers 05/13/2020

AN-1604: Thermal Management Calculations for RF Amplifiers in LFCSP and Flange Packages 08/01/2019

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC453QS16GE	16 ld QSOP_EP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
HMC453QS16GETR	16 ld QSOP_EP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Sep 29, 2025 - 25_0079 Obsolescence of GCS P1HBT Process
		PDN25_0079_Form Material_Report
HMC453QS16GE	LAST TIME BUY
HMC453QS16GETR	LAST TIME BUY

This is the most up-to-date revision of the Data Sheet.
