HMC422

Obsolete

DBL-BAL Mixer with LO Amplifier SMT, 1.2 - 2.6 GHz

Part Models: 4
1ku List Price: price unavailable

Viewing:

Overview

Integrated LO Amp w/ Pdiss <100 mW
Conversion Loss / Noise Figure: 8 dB
Low LO Drive: 0 dBm

Input IP3: +15 dBm
Single Positive Supply: 3V @ 30 mA

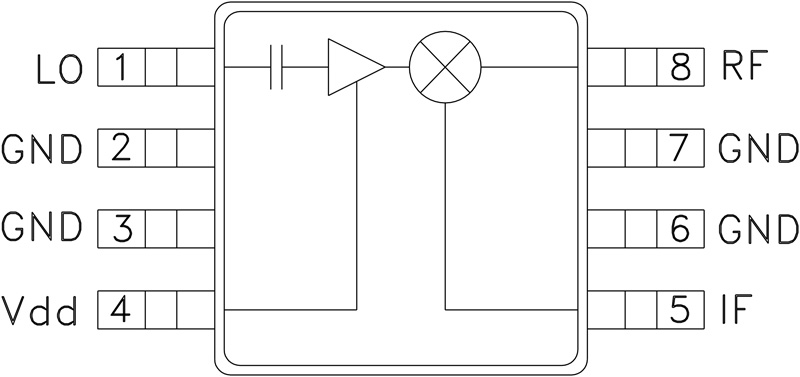

The HMC422MS8(E) is a double balanced mixer IC with an integrated LO amplifier. This mixer can operate as an upconverter or downconverter between 1.2 GHz and 2.6 GHz. With the integrated LO amplifier, the mixer requires an LO drive level of only 0 dBm, and requires only 30mA from a single positive +3V rail. The mixer has 8 dB of conversion loss, an input P1dB of +8 dBm and an input third order intercept point of +15 dBm at 2 GHz.

Applications

MMDS & ISM
Wireless Local Loop
WirelessLAN
Cellular Infrastructure

Part Models: 4
1ku List Price: price unavailable

Documentation

Obsolete Data Sheet 1

HMC422 Data Sheet 09/11/2015

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC422MS8	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
HMC422MS8E	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
HMC422MS8ETR	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
HMC422MS8TR	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Dec 14, 2015 - 15_0026 Discontinuance of Select Hittite Microwave Products (HMC) from Analog Devices
		PDN15_0026_Form Material_Report
HMC422MS8	Obsolete
HMC422MS8E
HMC422MS8ETR
HMC422MS8TR	Obsolete

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
ADL5801	RECOMMENDED FOR NEW DESIGNS	High IP3, 10 MHz TO 6 GHz, Active Mixer
ADL5811	Obsolete	High IP3, 700 MHz to 2800 MHz, Double Balanced, Passive Mixer, IF Amplifier, and Wideband LO Amplifier
ADL5365	Obsolete	1200 MHz TO 2500 MHz Balanced Mixer, LO Buffer and RF Balun
