HMC287

Obsolete

Variable Gain Low Noise Amplifier SMT, 2.3 - 2.5 GHz

Part Models: 1
1ku List Price: price unavailable

Viewing:

Overview

High Gain: 21 dB
Low Noise Figure: 2.5 dB
Gain Control Range: 30 dB
Single Supply: +3V

Single Gain Control: 0 to +3V
No External Components
Compact MSOP Package, 14.8 mm²

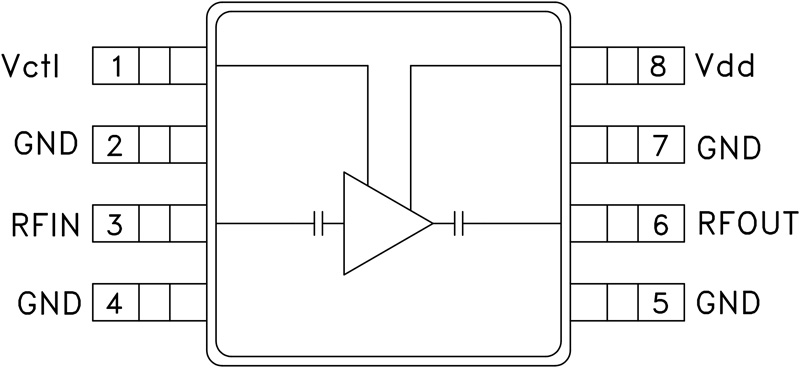

The HMC287MS8(E) is a low cost variable gain Low Noise Amplifier (LNA) offering 21 dB of gain and 2.5 dB noise figure from a single +3V supply at 9 mA. The HMC287MS8(E) can be used as a variable gain LNA, offering 30 dB of gain control which is controlled with a 0 to 3V analog voltage. The typical output 1 dB compression point is +3 dBm and OIP3 is +7 dBm in the maximum gain state. This compact LNA design utilizes on-chip matching for repeatable gain and noise figure performance and eliminates the need for external matching circuitry.

Applications

WLAN, WiBro & WiMAX
Infrastructure & Repeaters
RFID
Motion Detection Systems
2.5 GHz Portables

Part Models: 1
1ku List Price: price unavailable

Documentation

Obsolete Data Sheet 1

HMC287 Data Sheet 09/11/2015

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC287MS8E	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Dec 14, 2015 - 15_0026 Discontinuance of Select Hittite Microwave Products (HMC) from Analog Devices
		PDN15_0026_Form Material_Report
HMC287MS8E	Obsolete	PDN15_0026_Form Material_Report
